QST 140-J Pressure Test Pump 15000psi Pneumatic Bop Pressure Testing Unit,Chart Recorder is available
QST 140-J Pressure Test Pump 15000psi
描述
QST 140-J Pressure Test Pump 15000psi Pneumatic Bop Pressure Testing Unit,Chart Recorder is available
Features:
- High reliability
- Convenient maintenance
- High mechanical efficiency
- Running stability
- Compact structure
Pneumatic Pressure Test Unit
Main specifications
- Type: QST 140-J
- Driving medium: Compressed air
- Working medium: Clear water
- Gross weight: 200KG
- Max Oulet Pressure: 15000PS
- Air Pressure: 0.3MPa
- Tank volume:130L
- Overall dimension: 80cm*68cm*93cm

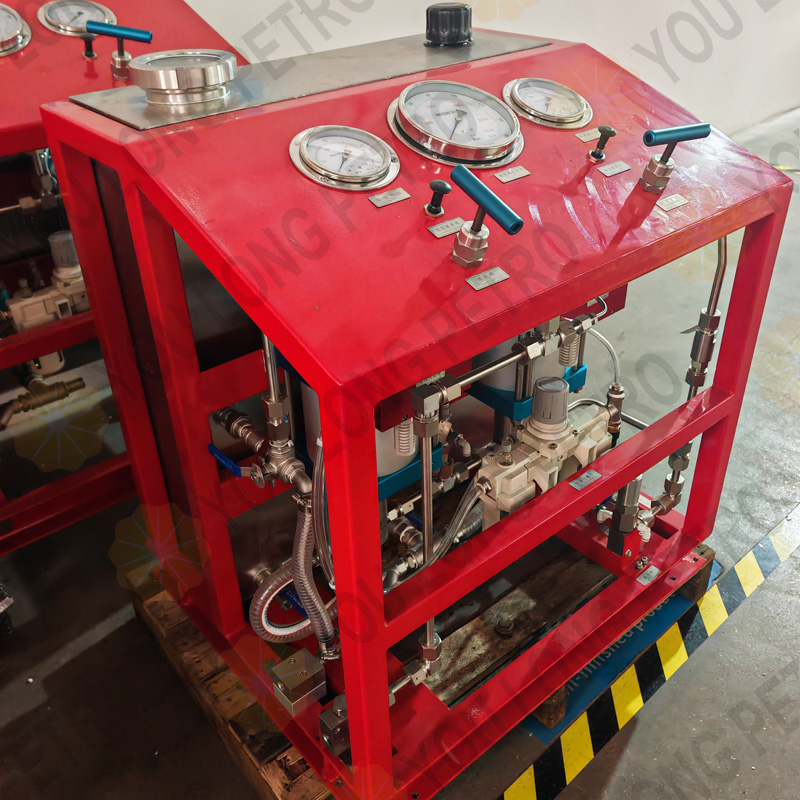

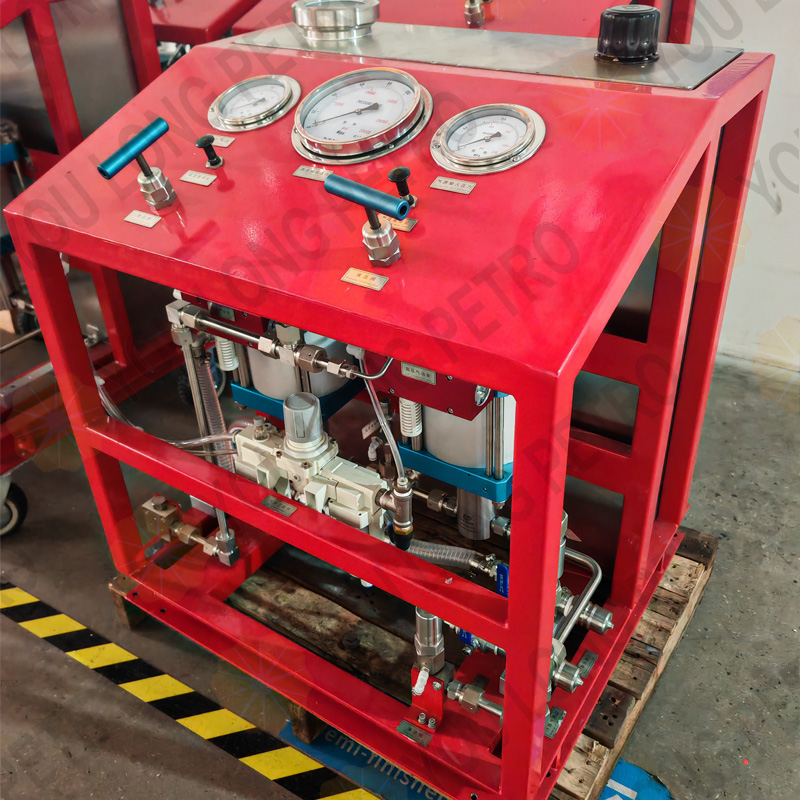

Skid mounted High pressure Test Unit rated 15000 PSI working pressure, self-contained skid mounted with a circular chart recorder. Supplied air shall be required to power the air pumps for one low and one high pressure pump for test pressure applications. Fluid medium to include water or hydraulic oil. The unit shall be mounted on the skid, of heavy duty welded steel construction to include the following major components:

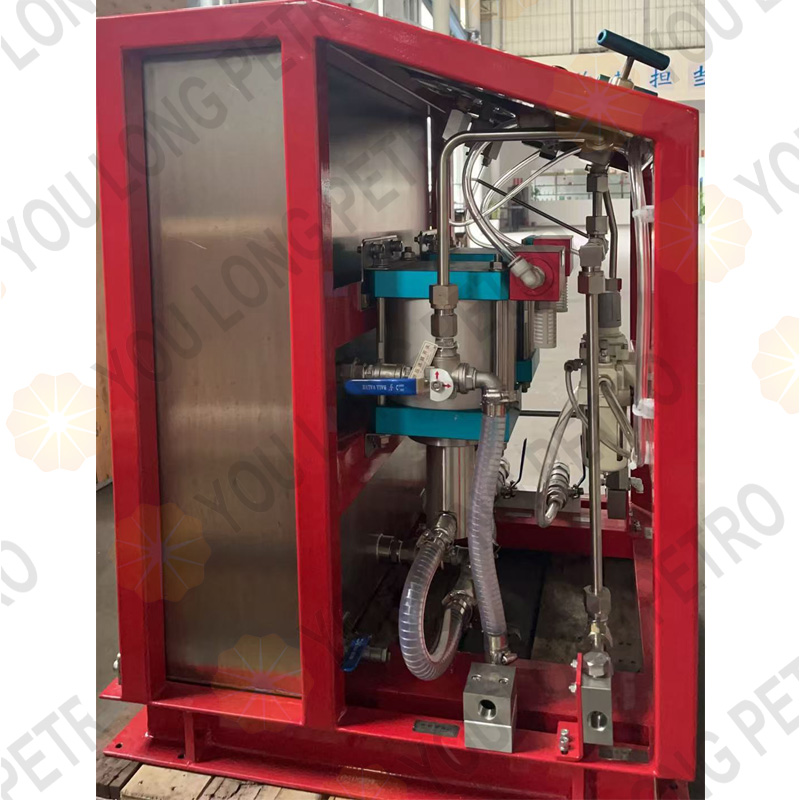

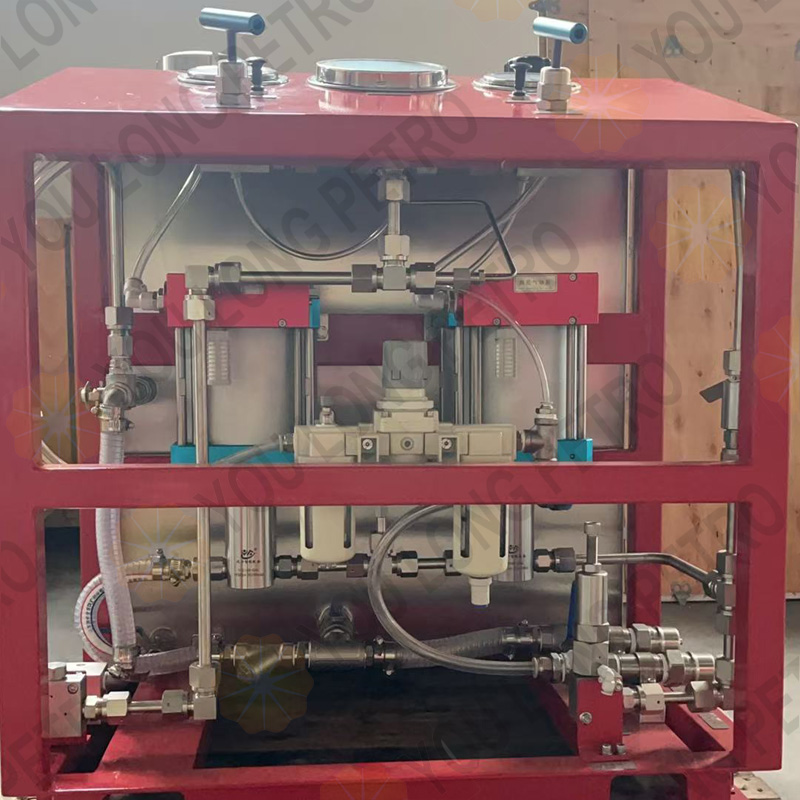

One no 6000 psi hydraulic/ pneumatic operated low pressure pump assembly 7-3/8″, ratio 60 : 1 ratio fluid end

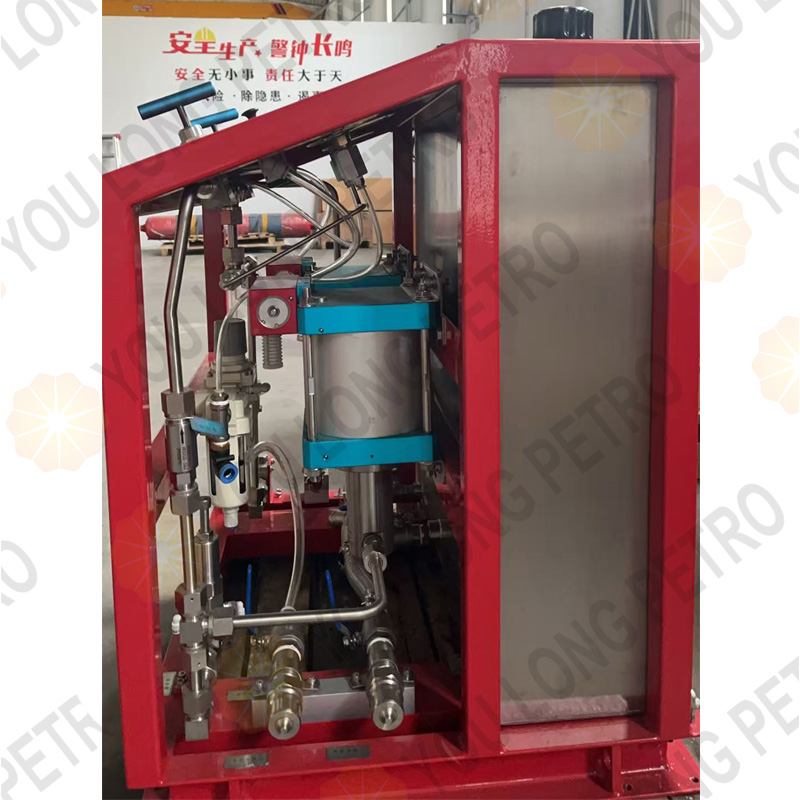

One no 15000 psi hydraulic / pneumatic operated high pressure pump 7-3/8″, ratio 320 : 1 ratio fluid end

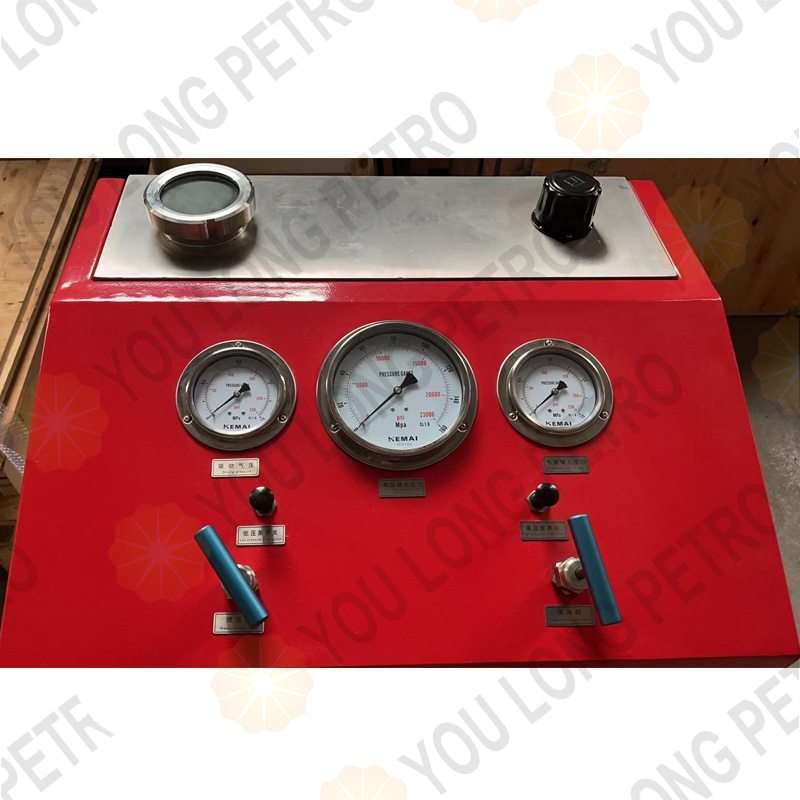

One (01) – Gauge, pressure 0-15000 psi, 6″ diameter panel mount, 316 SS.
One (01) – Reservoir 50 gallon, with baffles, inspection port and fluid drain port.
One (01) – Adjustable air regulator, set to limit hydraulic output to desired low test pressure and high test pressure.
One (01) – 1″ Airline manifold with lubricator/ filter.
One (01) – fluid suction manifold and strainer.
One (01) – High pressure testing manifold complete with 0-15000 psi gauge, check valve, all necessary valves, high pressure fittings and tubing.
High Pressure test Hose
30 ft long high pressure, 15000 psi WP, 1/4″ ID with end connection fitting ( Quick coupler )
One (01) Hose assembly, air 1″ ID x 20ft, 200 PSI WP, 1″ quick disconnect coupling on both ends for customer connection

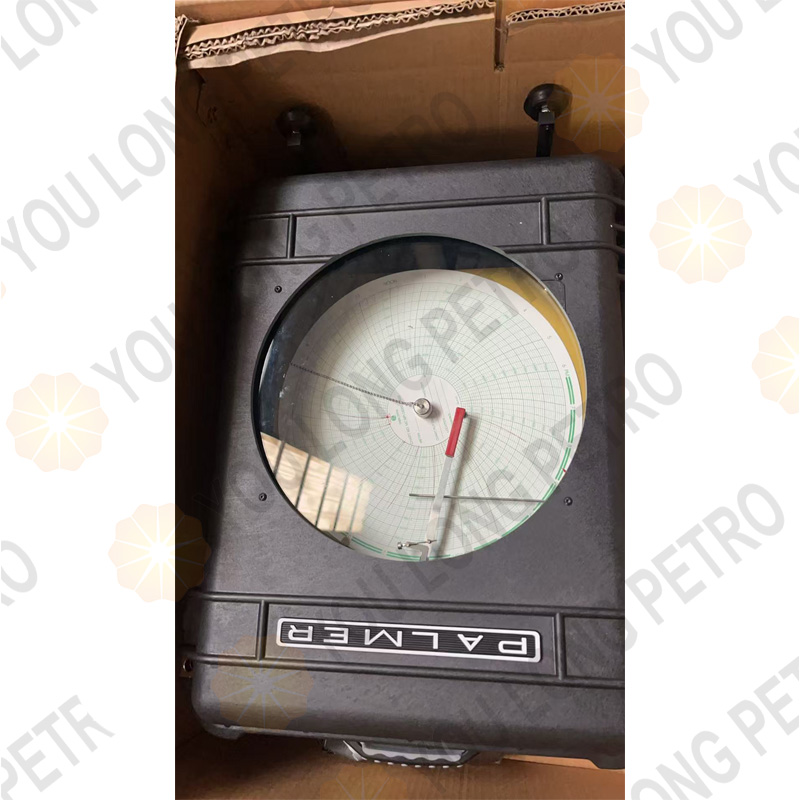

Chart Recorder
Imported Unit mount chart recorder consisting of 0-15000 PSI recorder, spring chart drive, chart rotation, 12″ diameter chart, single pen style with over range protection, shock mounted for vibration protection on separate skid complete with
one no High pressure test Hose 1/4″ ID X 15000 PSI working pressure 10′ long to connect chart recorder with test unit
One box ( 100 pcs ) chart
10 nos of Pen
One air supply hose
The Unit will be complete with function name plates and prepared against corrosion by sand-blasting to near white metal priming with epoxy primer and final finish with red polyurethane paint
