12000psi QST 70-J Pressure Test Pump Pneumatic Bop Pressure Testing Unit with Chart Recorder
Main specifications
- Type: QST70-J
- Driving medium: Compressed air
- Working medium: Clear water
- Gross weight: 200KG
- Max Oulet Pressure: 12000PS
- Air Pressure: 0.3MPa
- Tank volume:130L
- Overall dimension: 80cm*68cm*93cm
Technical specification

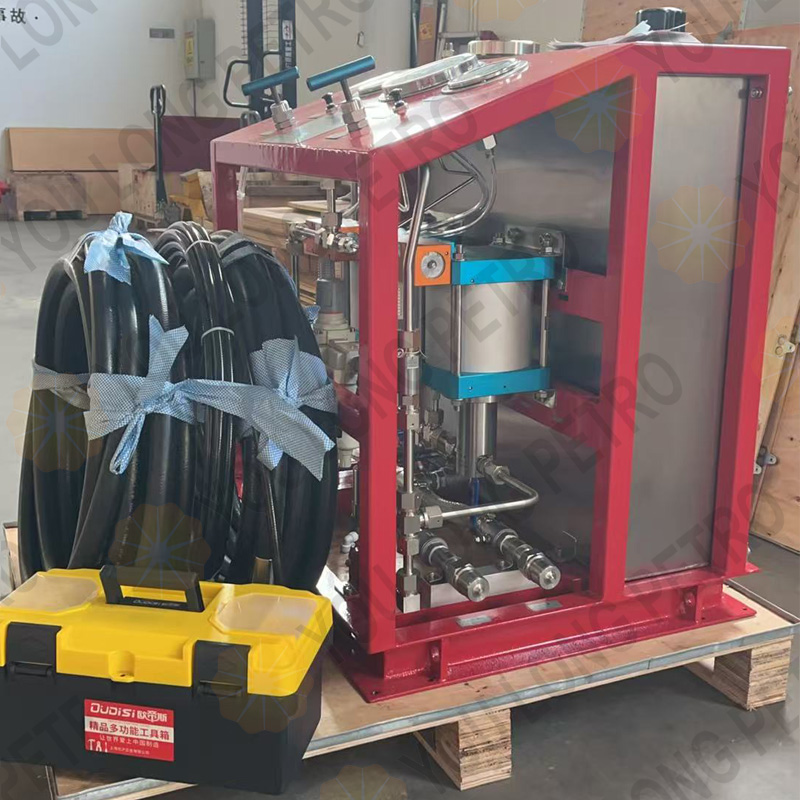

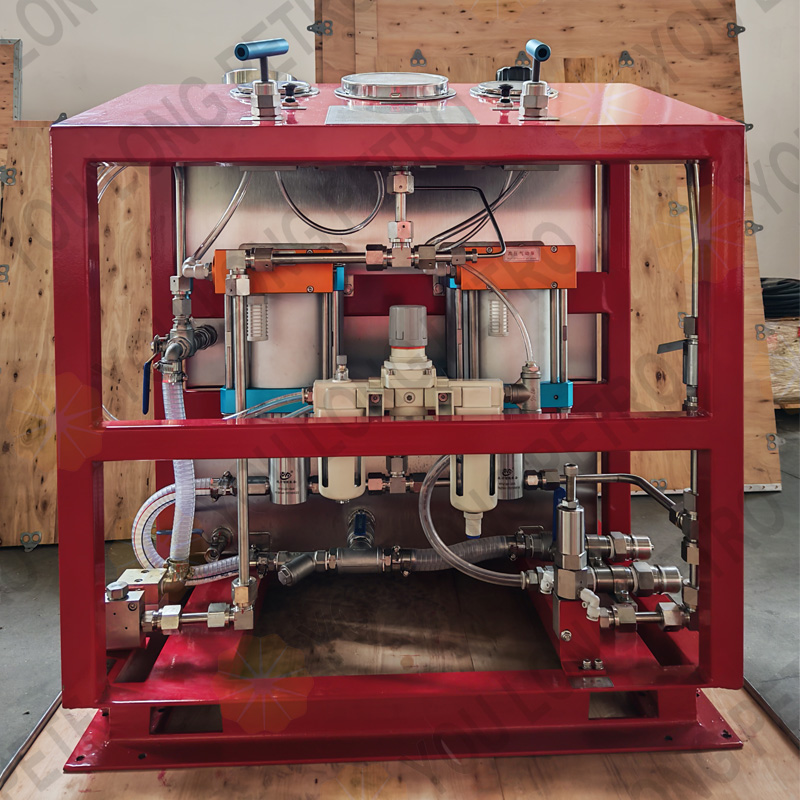

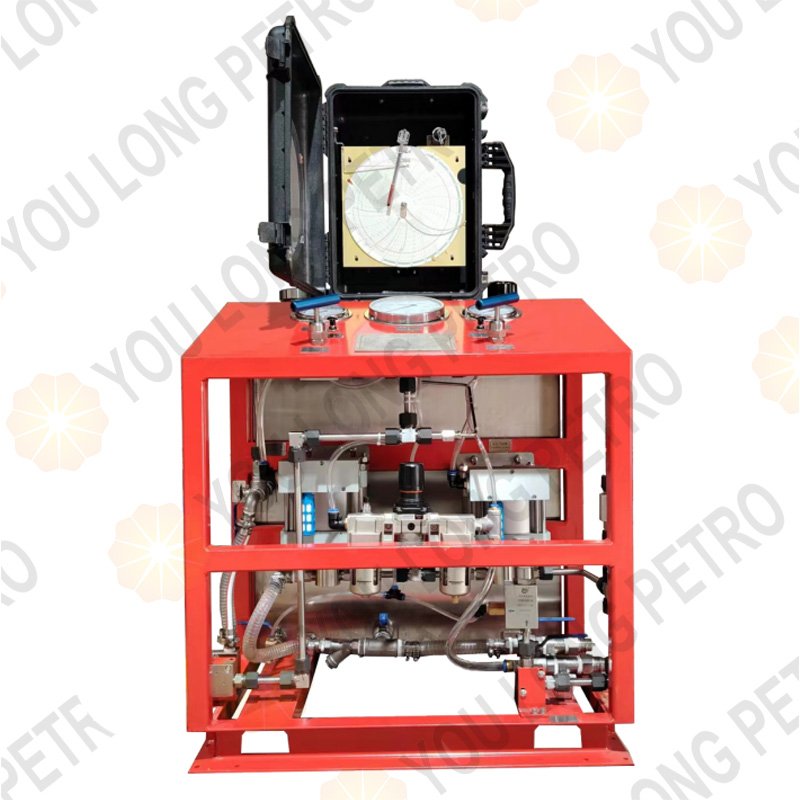

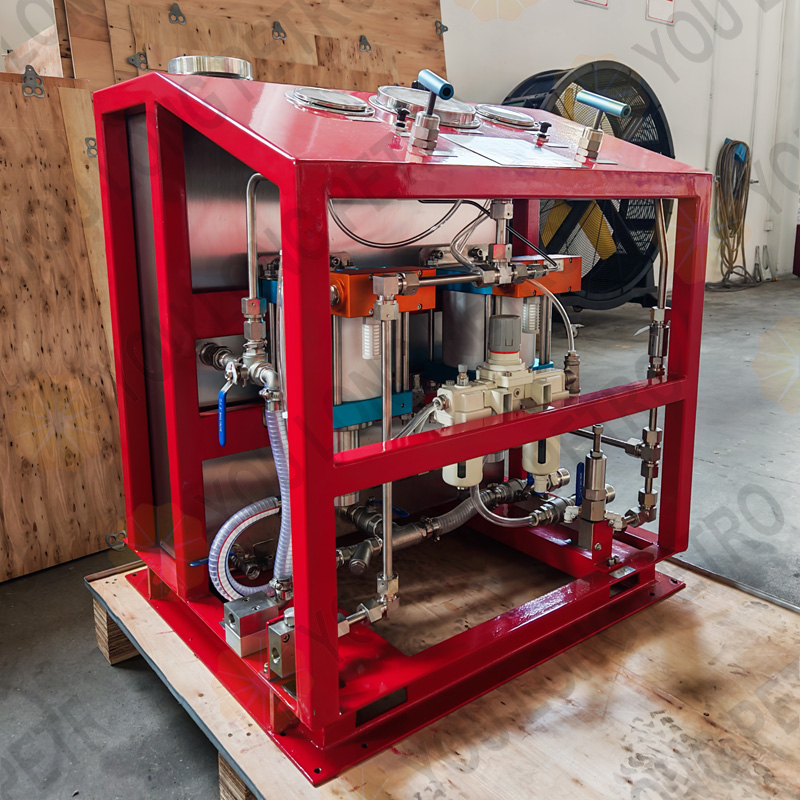

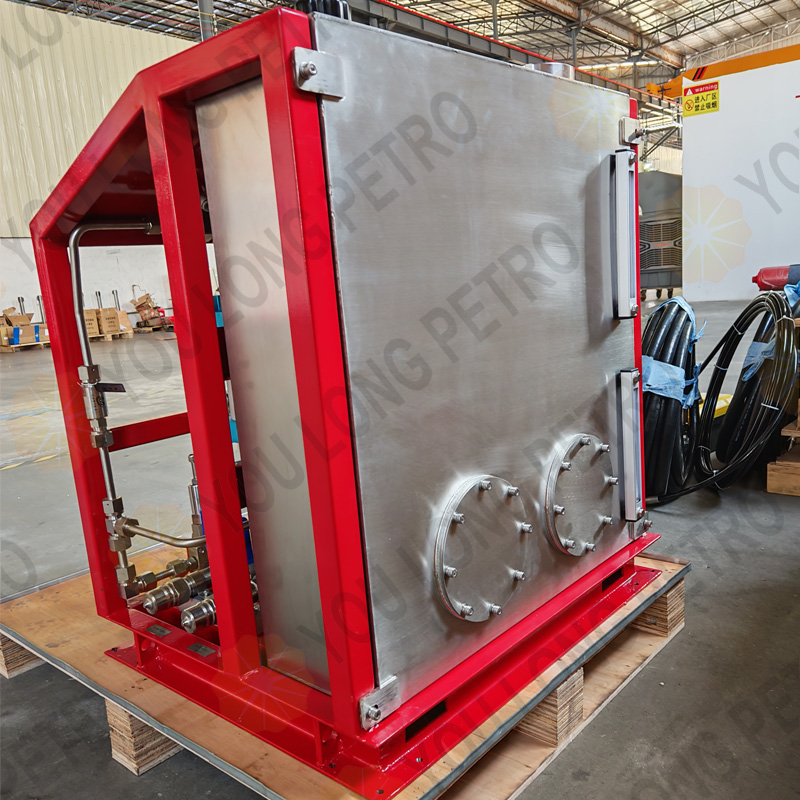

Skid mounted High pressure Test Unit rated 12000 PSl working pressure, self-contained skid mounted with a

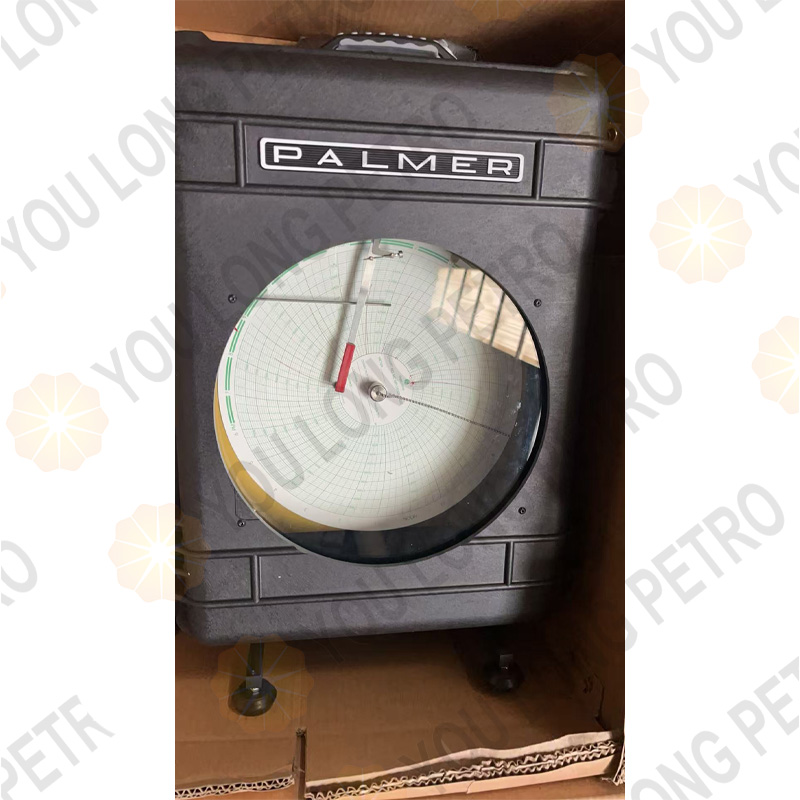

circular chart recorder. Supplied air shall be required to power the air pumps for one low and one high
pressure pump for test pressure applications. Fluid medium to include water or hydraulic oil. The unit shall be
mounted on the skid, of heavy duty welded steel construction to include the folowing major components.
1. One no 6000 psi hydraulic pneumatic operated low pressure pump assembly 7-3/8″, ratio 60 : 1 ratio fluid
end luben@youlongpetro.com
2. One no 15000 psi hydraulic / pneumatic operate high pressure pump 7-3/8″, ratio 265 : 1 ratio fluid end

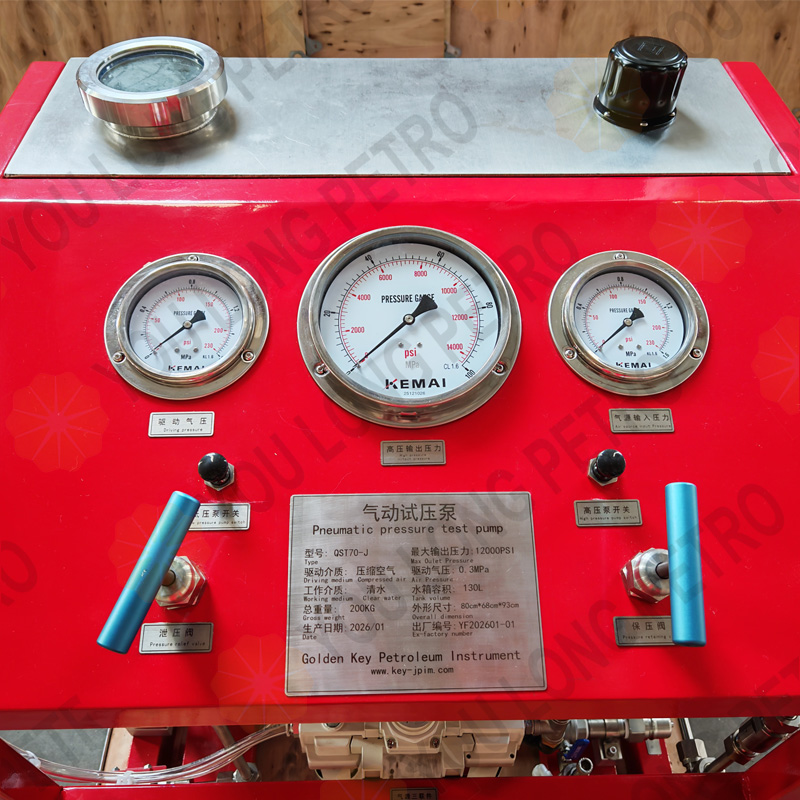

3.One (01)-Gauge, pressure 0-15000 psi,6″ diameter panel mount, 316 Ss.
4.One (01)-Reservoir 50 gallon, with bafles, inspection port and fluid drain port.
whatsapp +8615972752793
5. One (01) – Adjustable air regulator, set to limt hydraulic output to desired low test pressure and high test
pressure.
6. One (01)-1″ Airline manifold with lubricator/ filter
7.One (01)-fluid suction manifold and strainer.whatsapp +8615972752793
8. One (01) – High pressure testing manifold complete with 0-15000 psi gauge, check valve, all necessary
walves, high pressure fittings andtubing.
