10000psi QST 70-J Pressure Test Pump Pneumatic Bop Pressure Testing Unit with Chart Recorder
10000psi QST 70-J Pressure Test Unit With Chart Recorder
描述
10000psi QST 70-J Pressure Test Pump Pneumatic Bop Pressure Testing Unit with Chart Recorder
Main specifications
- Type: QST 70-J
- Driving medium: Compressed air
- Working medium: Clear water
- Gross weight: 200KG
- Max Oulet Pressure: 10000PS
- Air Pressure: 0.3MPa
- Tank volume:130L
- Overall dimension: 80cm*68cm*93cm
Technical specification

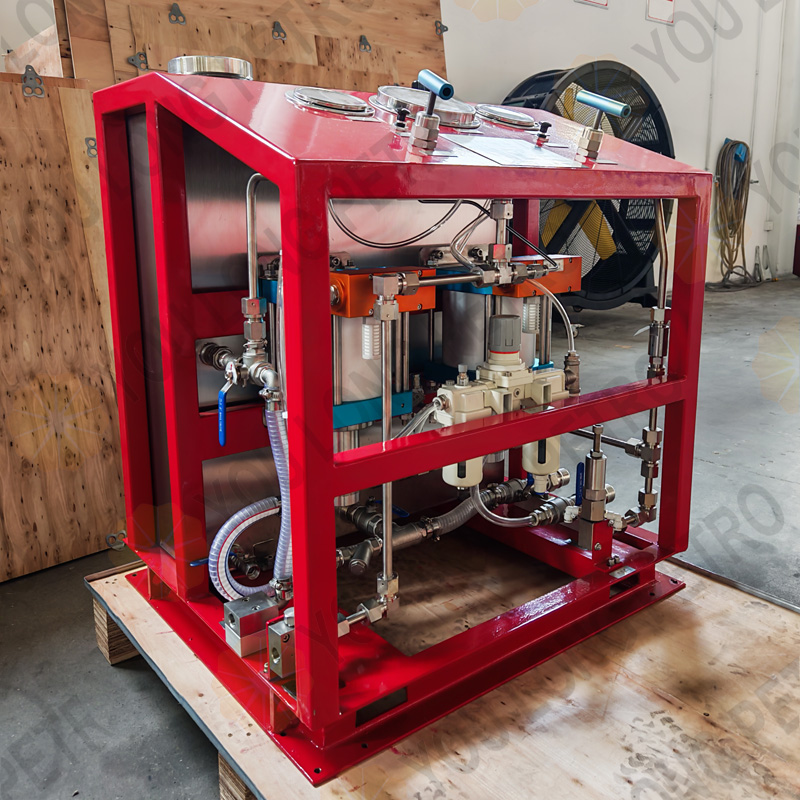

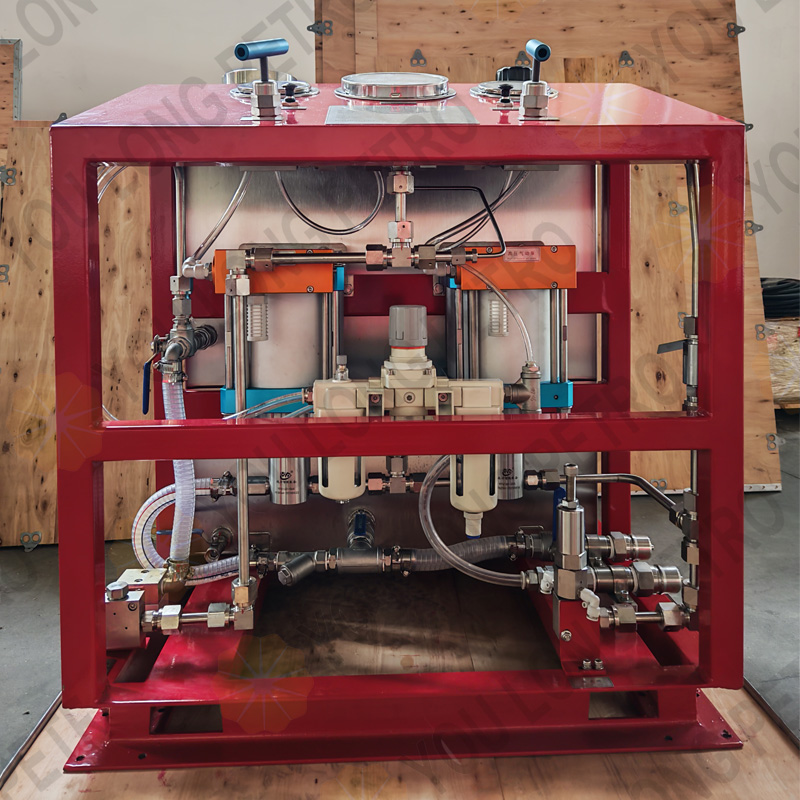

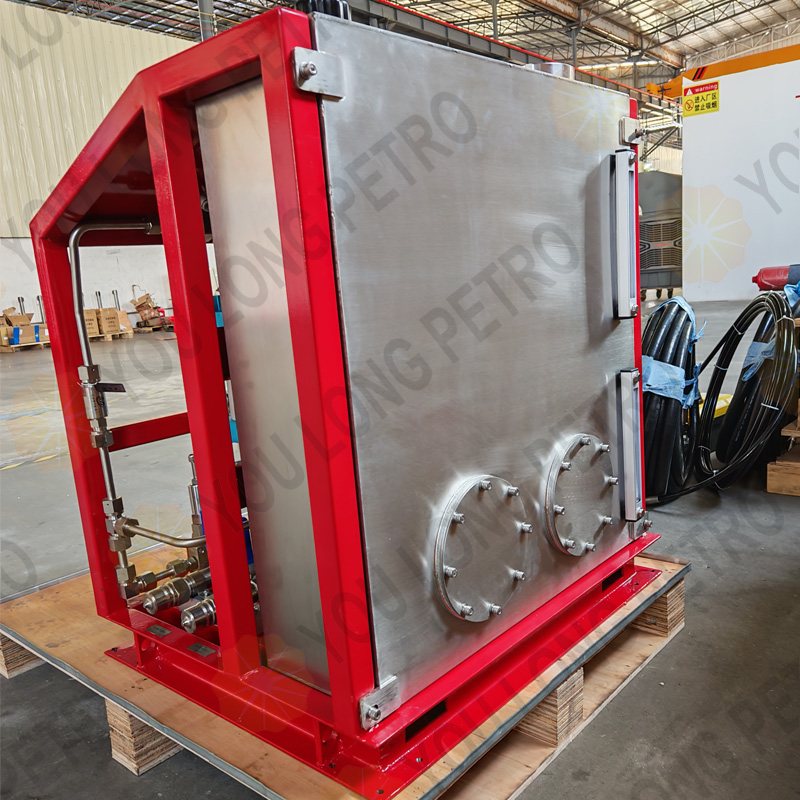

Skid Mounted High Pressure Test Unit
Skid mounted High pressure Test Unit rated 10000 PSI working pressure, self-contained skid mounted with a circular chart recorder. Supplied air shall be required to power the air pumps for one low and one high pressure pump for test pressure applications. Fluid medium to include water or hydraulic oil. What’s app +8615972752793 The unit shall be mounted on the skid, of heavy duty welded steel construction to include the following major components:
1. One no 6000 psi hydraulic/ pneumatic operated low pressure pump assembly 7-3/8″, ratio 60 : 1 ratio fluid end
2. One no 10000 psi hydraulic / pneumatic operate high pressure pump 7-3/8″, ratio 265 : 1 ratio fluid end
3. One (01) – Gauge, pressure 0-10000 psi, 6″ diameter panel mount, 316 SS.
4. One (01) – Reservoir 50 gallon, with baffles, inspection port and fluid drain port.
5. One (01) – Adjustable air regulator, set to limit hydraulic output to desired low test pressure and high test pressure.
6. One (01) – 1″ Airline manifold with lubricator/ filter.
7. One (01) – fluid suction manifold and strainer.
8. One (01) – High pressure testing manifold complete with 0-10000 psi gauge, check valve, all necessary valves, Luben@youlongpetro.com high pressure fittings and tubing.

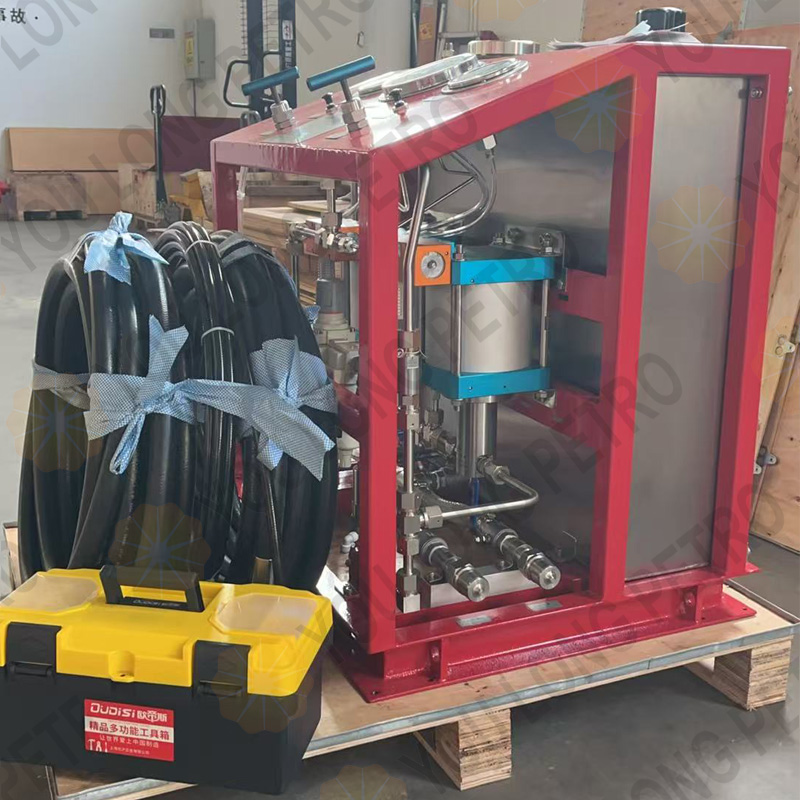

High Pressure test Hose : 30 ft long high pressure, 10000 psi WP, 1/4″ ID with end connection fitting ( Quick coupler )
One (01) Hose assembly, air 1″ ID x 20ft, 200 PSI WP, 1″ quick disconnect coupling on both ends for customer connection What’s app +8615972752793

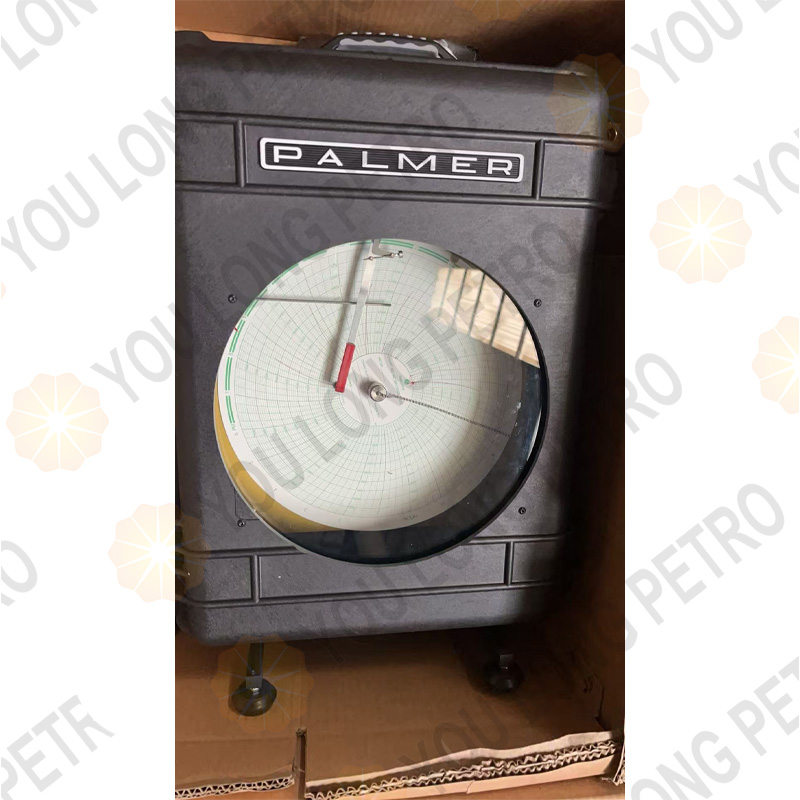

Chart Recorder

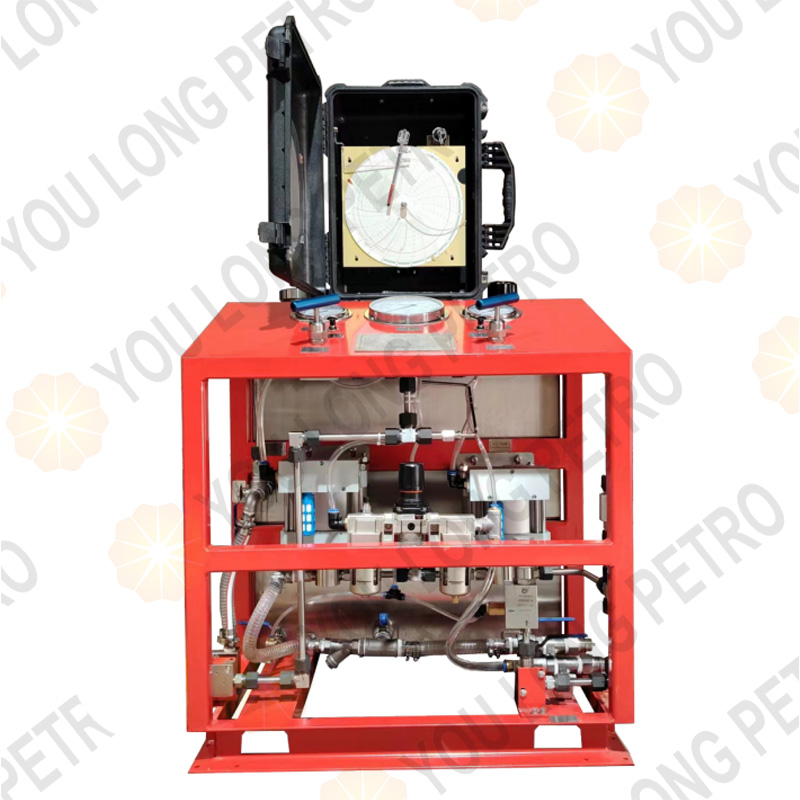

Imported Unit mount chart recorder consisting of 0-10000 PSI recorder, spring chart drive, chart rotation, 12″ diameter chart, single pen style with over range protection, shock mounted for vibration protection on separate skid complete with
– one no High pressure test Hose 1/4″ ID X 10000 PSI working pressure 10′ long to connect chart recorder with test unit
– One box ( 100 pcs ) chart
– 10 nos of Pen
– One air supply hose
The Unit will be complete with function name plates and prepared against corrosion by sand-blasting to near white metal priming with epoxy primer and final finish with red polyurethane paint Luben@youlongpetro.com
