SJ SERVA SJPETRO Varco NOV SCP Mission Centrifugal Pump 2500 Supreme
Mission Pumps
During the 1950s the Mission 1780 type “W” pumps were introduced to replace duplex pumps while creating the first low pressure mud system.The use of a high quality concentric type centrifugal pump allowed abrasive fluids to be mixed and transferred while reducing initial and maintenance costs for the driling industry.The low-pressure mud system with Mission 1780 Type “W” centrifugal pumps became the industry standard.
As well depths increased so did the need for heavier mud weights. When the mud weight began exceeding 14 ppg the need for a pump that could withstand greater horsepower loads arose.During the 1970’sMission organized a design team that engineered the Mission Magnum.The Magnum was designed to have the same footprint, flange locations,and drive shaft diameter as the 1780 “W”.This allowed a 1780 to be replaced by a Magnum without any skid modifications.The Magnums were originally engineered with a 2-1/2″ shaft (3″ between the bearings),double row bearings with an engineered life of over 2 years at 200 HP,larger impellers and heavier frames.The Magnum allowed driling contractors to upgrade their centrifugal pumps and mix heavier fluids.
The National Oilwell Varco Misslon centrifugal pump line has proven to be the best centrifugal design for handling abrasive mud.This pump line offers a broad selection of innovative features for a variety of routine,demanding,abrasive and corrosive applications.These pumps are designed for a wide range of flow rates,from a few gallons per minute to thousands of gallons per minute.
NOV is dedicated to continual improvement of our product line and offering innovative solutions to service our customers.Included in this manual are quality NOV products that have been designed to meet your needs.The future is being defined and the solution is available from NOV.

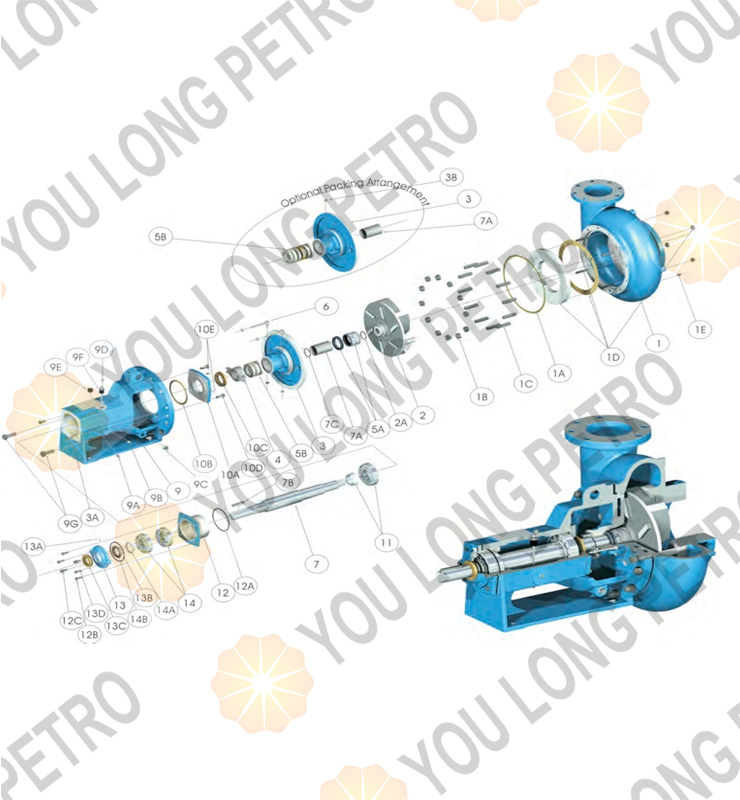

| 2500 Supreme Parts List | |||||
| tem | Qty | Catalog Number | Part# | Description | Material |
| 1* 1 | See Below | See Below | Casing,Includes 1 thru 1E | Hard Iron | |
| 1A | 1 | 10399-46-1 | 648403012 | Gasket,Casing | Vellumoid |
| 1B | 12 | 3932-61 | 3932-61H | Nut,Casing | Stainless Steel |
| 1C | 12 | H2507-3 | 648401115 | Stud,Casing | St |
| 1D* | 1 | See Below | See Below | Wear Pad,Includes stds,nuts,&gskt | |
| 1E | 1 | 8505-2H | 601474703 | Plug,Casing Drain | St |
| 2* | 1 | See Below | See Below | Impeller | Hard Iron |
| 2A | 1 | H19110-72 | 648405082 | Seal,Impeller | Viton |
| 3*# | 1 | H22223-01-30 | 22223H | Stuffng box,Mech.Seal | Ductile Hard Iron |
| 3*& | 1 | H20614-01-30 | 20614H | Stuffing Box,Packed | Ductile Hard Iron |
| 3A | 2 | H3861-117 | 3861-138 | Bolt,Stufing box | St |
| 3B& | 1 | 19368-1H | 19368-1H | Grease Fitting | St |
| 4 | 2 | H20622A | 20622H | Gland Assy.,Packing | Stainless Steel |
| 5A# | 1 | H22451-1A | 22451K | Seal,Mechanical | Tungsten Carbide |
| 5B~ | 1 | 8264-24-0B | 648402600 | Packing,Shaft | |
| 6 | 2 | 20629 | 601102494 | BOLT,GLAND | St |
| 7 | 1 | H20612-02-33 | 646490557 | Shaft | AISI 4140 |
| 7A# | 1 | H20613-21A | 646492505 | Sleeve,Shaft (M.S.Pump) | 416SS |
| 7A& | 1 | H20613-21G-7A | 646490656 | Sleeve,Shaft (Pack Pump) | 416SS/Ceramic |
| 7B | 1 | H4372-5-21 | 601212392 | Key,Shaft | 416ss |
| 7C | 1 | 23444-01-72 | 648415156 | Seal,Shaft Sleeve | Viton |
| 8 | 1 | 22210-1A | 641116108 | Deflector Assembly | Bronze |
| 9 | 1 | H17444 | 17444H | Frame,Grease Lubricated | Cast lron |
| 9A! | 1 | H8505-1 | 8505-1 | Plug,Oil Drain | Iron |
| 9B! | 1 | 8505-2H | 601474703 | Plug,Oil | Iron |
| 9C | 1 | 601474737 | Plug,Frame Drain | Iron | |
| 9D | 1 | H8267-1 | 601473689 | Breather | St |
| 9E | 1 | H2565-1 | 2565-1H | Plug,Oil Fll | Plastic |
| 9F! | 1 | H2539-3 | 2539-3H | Dip Stick | St |
| 9G | 2 | H2538-1 | 2538-1H | Bolt,Casing Jack | St |
| 10A | 1 | H17950 | 17950H | Cover,Inboard Bearing | Iron |
| 10B | 1 | H20625 | 648408706 | Gasket,1.B.Brg.Cover | Vegetable Fiber |
| 10C | 1 | H2564-4 | 2564-4H | Labyrinth Seal,IB Brg Cvr | Buna-n |
| 10D | 2 | H3861-1 | 3861-1H | Bolt,1.B.Brg.Cover | St |
| 10E | 1 | 661010033 | Grease itting | St | |
| 11 | 1 | N/A | 661009010 | Bearing,Inboard | Vendor |
| 12A | 1 | H7496-253 | 648402295 | Seal, O.B. Brg Housing | Buna-n |
| 12B | 4 | H3861-132 | 3661-138 | Bolts, O.B. Brg. Housing | Stl |
| 12C | 2 | H3993-68 | 658404702 | Nut, O.B. Brg. Housing Jam | Stl |
| 13 | 1 | H20617A | 20617H | Cover, O.B. Bearing | Ductile Iron |
| 13A | 1 | 661010020 | Grease Zerk, O.B. Brg. Cvr. | Stl | |
| 13B | 1 | H7496-26 | 7220017 | O-ring, O.B. Bearing Cover | Buna-n |
| 13C | 1 | H2564-3 | 2564-300H | Labyrinth Seal, O.B. Brg. Cvr. | Buna-n |
| 13D | 2 | H3861-139 | 3861-139-4 | Bolt, O.B. Brg. Cover | Stainless Steel |
| 14 | 2 | H20616-1S | 648408201 | Bearing, O.B. (2 Reqd) | Vendor |
| 14A | 1 | H6124-4 | 648402105 | Lockwasher, O.B. Bearing | Stl |
| 14B | 1 | H6123-4 | 648402055 | Lucknut, O.B. Bearing | Stl |
| Casings – Includes Studs, Nuts and Gasket | |||||
| 1* | 1 | H19203-01-30A | 19203AH | Casing, 3x2x13 | Hard Iron |
| 1* | 1 | H19205-01-30A | 19205AH | Casing, 4x3x13,w/ wear pad | Hard Iron |
| 1* | 1 | H19222-01-30A | 19222AH | Casing, 5x4x14,w/ wear pad | Hard Iron |
| 1* | 1 | H19122-01-30A | 19122AH | Casing, 6x5x11,w/ wear pad | Hard Iron |
| 1* | 1 | H19123-01-30A | 19123AH | Casing, 6x5x14,w/ wear pad | Hard Iron |
| 1* | 1 | H19763-01-30A | 19763AH | Casing, 8x6x11,w/ wear pad | Hard Iron |
| 1* | 1 | H19117-01-30A | 19117AH | Casing, 8x6x14,w/ wear pad | Hard Iron |
| 1* | 1 | H20937-01-30A | 20937AH | Casing, 10x8x14,w/ wear pad | Hard Iron |
| Impellers and Casing Wear Pads | |||||
| 2* | 1 | H19204-XX-30 | Varies | Impeller, 3x2x13 Open | Ductile Hard Iron |
| 2* | 1 | H19206-XX-30 | Varies | Impeller, 4x3x13 Open | Ductile Hard Iron |
| 2* | 1 | H2523-XX-30 | Varies | Impeller, 5x4x14 Semi Open | Ductile Hard Iron |
| 2* | 1 | H2524-XX-30 | Varies | Impeller, 6x5x11 Semi Open | Ductile Hard Iron |
| 2* | 1 | H2524-XX-30 | Varies | Impeller, 6x5x14 Semi Open | Ductile Hard Iron |
| 2* | 1 | H2524-XX-30 | Varies | Impeller, 8x6x11 Semi Open | Ductile Hard Iron |
| 2* | 1 | H2525-AO-30 | Varies | Impeller, 8x6x14 Semi Open | Ductile Hard Iron |
| 2* | 1 | H2526-XX-30 | Varies | Impeller, 10x8x14 Semi Open | Ductile Hard Iron |
| 1E | 1 | H2501-01-30A | 2501-37AH | Wear Pad, 4X3X13 Casing | Ductile Hard Iron |
| 1E | 1 | H2502-01-30A | 2502-37AH | Wear Pad, 5X4X14 Casing | Ductile Hard Iron |
| 1E | 1 | H2503-01-30A | 2503-37AH | Wear Pad, 6X5X11 Casing | Ductile Hard Iron |
| 1E | 1 | H2504-01-30A | 2504-37AH | Wear Pad, 6X5X14 Casing | Ductile Hard Iron |
| 1E | 1 | H2505-01-30A | 2505-37AH | Wear Pad, 8X6X11 Casing | Ductile Hard Iron |
| 1E | 1 | H2506-01-30A | 2506-37AH | Wear Pad, 8X6X14 Casing | Ductile Hard Iron |
| 1E | 1 | H2527-01-30A | 2527-37AH | Wear Pad, 10X8X14 Casing | Ductile Hard Iron |
