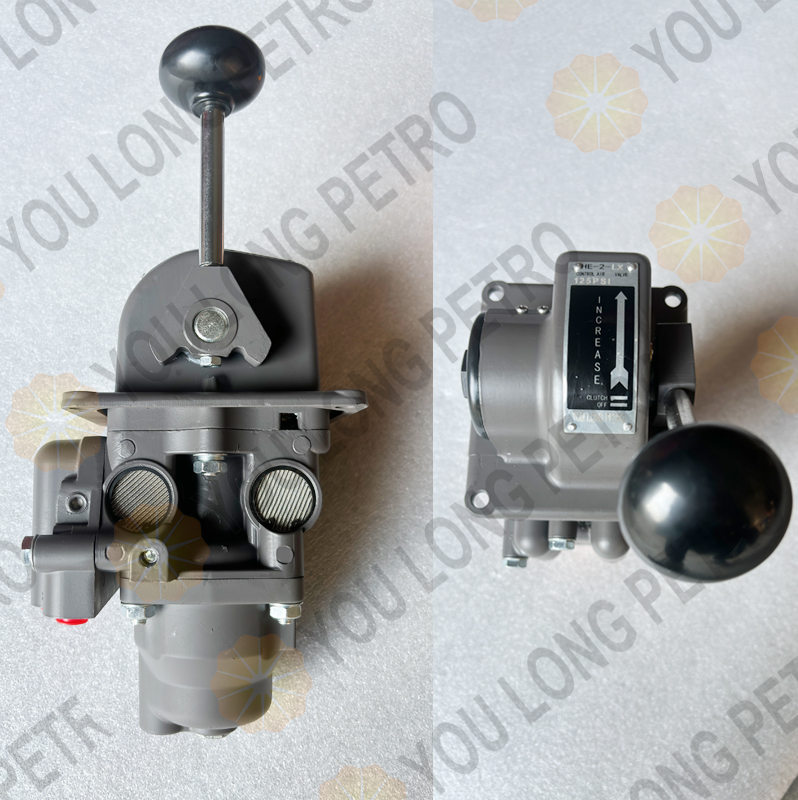

Rexroth Aventics Replace HE-2-LX Controlair Lever Operated Directional Valves R431002918

Rexroth Aventics Replace HE-2-LX Controlair Lever Operated Directional Valves R431002918

Rexroth Aventics Replace HE-2-LX Controlair Lever Operated Directional Valves R431002918

描述

Rexroth Aventics Replace HE-2-LX Controlair Lever Operated Directional Valves R431002918

Features:

Type Poppet valve
Actuating element Lever
Type HE-2-LX
Compressed air connection input 1/4 NPT
Compressed air connection output 1/4 NPT
Compressed air connection type output Internal thread
Min. working pressure 0.1 bar
Max. working pressure 14 bar
Min. regulation range 0.1 bar
Max. regulation range 4.5 bar
Min. ambient temperature -40 °C
Max. ambient temperature 70 °C
Min. medium temperature -40 °C
Max. medium temperature 70 °C
Medium Compressed air
Nominal flow Qn 900 l/min
Hysteresis < 0,07 bar
Weight 2.3 kg
Housing material Die-cast aluminum
Seal material Acrylonitrile butadiene rubber
Material pedal Die-cast aluminum



YOU LONG PETRO supplies Control Air Valve with the below part numbers :

We also supply a full range of genuine and interchangeable parts for AVENTICS Rexroth Wabco and other leading brands.Our product portfolio covers high-pressure valves, pumps, and various other critical components, all specifically designed for drilling instruments and oilfield equipment.

For more oilfield parts, feel free to contact us.What’s app +8615972752793; Luben@youlongpetro.com



AVENTICS PNEUMATIC VALVES



Hand Throttle H‑4,R431002820,P‑050967‑00003,P50967‑3, REGULATING VALVE Handwheel regulator H‑4,R431002885,P‑051173‑00001,P51173‑1, Relay valves 4‑S,R431003664,P‑055161‑00001,P55161‑1, Relay Valve 6‑S,R431003665,P‑055162‑00000,P55162, Double Lock Valve 1/2 D,R431008258,PD‑040041‑98, Two‑position three‑way valves 2‑HA‑1,R431004994,P‑059331‑00000,P59331, 3 POSITION 4 WAY VALVE Control Air Valve Type 2‑HA‑2 (3‑Way Air Valve) 2‑HA‑2,R431005003,P‑059335‑00000,P59335, BRACKET PILOTAIR‑2‑HA‑1/2‑HA& 2‑HA‑1/2,R431005854,P‑061744‑00002,P61744‑2, Control Air Valve Type 2H‑A‑3 2‑HA‑3,R431005733,P‑061266‑00001,P61266‑1, Six‑position shift valve 6P‑5S,R431006581,P‑065235‑00001,P65235‑1, Eight‑position shift valve 8P‑1S,R431003806,P‑055556‑00003,P55556‑3, 8 Position Air Cylinder,R431003808,P‑055557‑00003,P55557‑3, luben@youlongpetro.com whatsapp +8615972752793 Diaphragm cylinder A‑2‑H,R431003983,P‑057086‑00001,P57086‑1, Throttle cylinder AB‑1,R431005441,P‑060266‑00001,P60266‑1, Combination regulator VALVE HD‑2‑FX,R431002823,P‑050970‑00001,P50970‑1, Combination regulator VALVE HD‑2‑FX,R431002824,P‑050970‑00002,P50970‑2, Turntable combination regulator HD‑2‑FX,R431002825,P‑050970‑00003,P50970‑3, Control Air Type H Valve Drill Driver Valves HD‑2‑X,R431002831,P‑050973‑00001,P50973‑1, Control Air Type H Valve Pitman valves HD‑2‑X,R431002833,P‑050973‑00003,P50973‑3, Regulators HE‑2‑FX,R431002912,P‑051612‑00001,P51612‑1, Control Air Valve Type HE‑2‑FX 100 PSI HE‑2‑FX,R431002913,P‑051612‑00002,P51612‑2, Regulators HE‑2‑FX,R431002914,P‑051612‑00003,P51612‑3, Control Air Valve Type HE‑2‑X HE‑2‑X,R431002939,P‑051692‑00003,P51692‑3, Control Air Valve Type HE‑2‑X HE‑2‑X,R431002938,P‑051692‑00002,P51692‑2, Control Air Valve Type HE‑2‑X HE‑2‑X,R431002937,P‑051692‑00001,P51692‑1, CONTROLAIR HE‑2‑LX,R431002916,, CONTROLAIR HE‑2‑LX,R431002917,, CONTROLAIR HE‑2‑LX,R431002918,, luben@youlongpetro.com whatsapp +8615972752793 Control Air Valve Type HC‑2‑X HC‑2‑X,R431002836,P‑050975‑00002,P50975‑2, Main drum combination valves HC‑2‑X,R431002837,P‑050975‑00003,P50975‑3, Control Air Valve Type HC‑2‑X HC‑2‑X,R431002838,P‑050975‑00004,P50975‑4, Control Air Valve Type HC‑2‑LX HC‑2‑LX,R431003826,P‑055582‑00003,P555823, Control Air Valve Type HC‑2‑LX HC‑2‑LX,R431003827,P‑055582‑00004,P55582‑4, Control Air Valve Type H‑2‑X H‑2‑X,R431002640,P‑050493‑00003,P50493‑3, Pressure regulating valves H‑2‑LX,R431002654,P‑050499‑00003,P50499‑3, Pressure regulating valves H‑2‑FX,R431002645,P‑050494‑00003,P50494‑3, CONTROL AIR TYPE H VALVE Foot operated throttle valve H‑1,R431002613,P‑050208‑00001,P50208‑1, Foot operated valves H‑1‑A,R431003063,P‑052971‑00001,P52971‑1, luben@youlongpetro.com whatsapp +8615972752793 Control Air Valve H‑1‑A,R431003066,P‑052971‑00004,P52971‑4, Two‑position three‑way valves 2‑BA‑1,R431003427,P‑054692‑00002,P54692‑2, Two‑position three‑way valves 2‑BA‑1,R431003429,P‑054692‑00004,P54692‑4, Valve M‑2‑F,R431000660,P‑026715‑00002,P26715‑2, Valve 4‑S,R431003625,P‑055120‑00000,P55120, Pressure gauge 1/8‑270‑300,R432012177,P‑049788‑00001,P49788‑1, Quick Exhaust Valve N038,R431003039,P‑052935‑00003,P52935‑3, Quick Exhaust Valve N012,R431003040,P‑052935‑00004,P52935‑4, Quick Exhaust Valve N034,R431003041,P‑052935‑00006,P52935‑6, Pneumatic Control Valve,R431007871,PD‑020032‑01212,, Two‑position three‑way valve 2‑HA‑1L,R431004997,P‑059332‑00001,P59332‑1, Three‑position four‑way valve 2‑HA‑2L,R431005006,P‑059336‑00003,P59336‑3, Three‑position four‑way valve 2‑HA‑2Z,R431005013,P‑059339‑00000,P59339, Three‑position four‑way valve 2‑HA‑2LY,R431005019,P‑059341‑00001,P59341‑1, PRESSURE REDUCING VALVE,4900350154,4945040087182585,, Two‑position three‑way rotary valve,4900300022,4945040088877227,, EMERGENCY RELAY VALVE,4900300030,5401100087193746,, DOUBLE CHAMBER BRAKE VALVE,5000100086,5401100087197027,, COMBINATION VALVE HE2LX 7 Position Cylinder 7P‑9S,R431006321,P‑063981‑00002.
