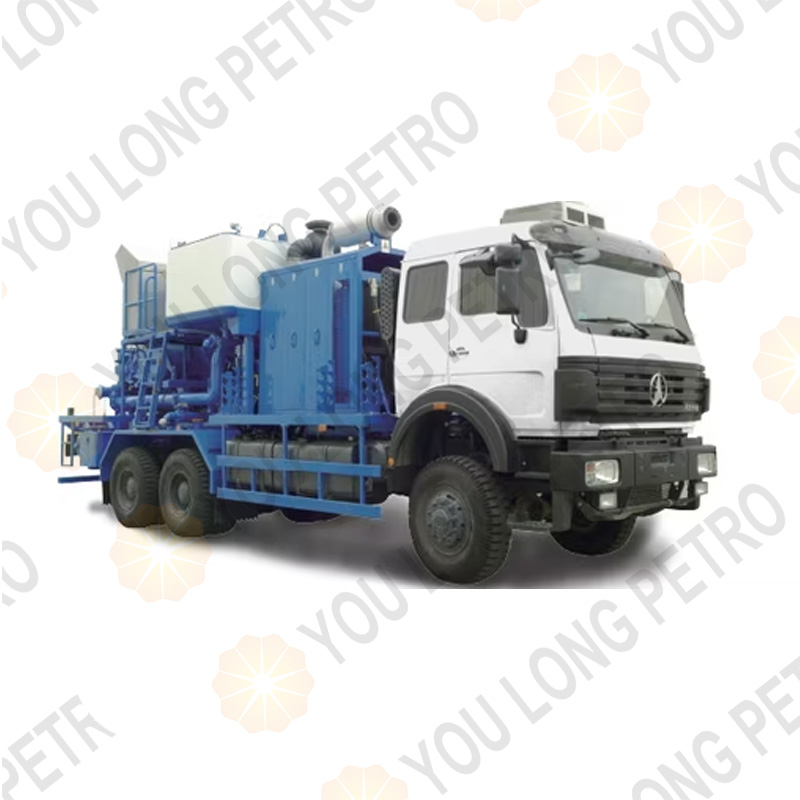

PCT-511B Single Pump Cementing Truck
描述
1. Overview
The PCT-511B system is a truck-mounted single-pump cementing unit fitted with a TPH400 plunger pump. The standard package adopts the North Benz 2535A 6X6 chassis as the carrying platform.
The TPH400 pump input shaft is arranged parallel to the engine center line, placing the pump fluid end at the rear section of the entire unit. This inline structural layout greatly simplifies routine inspection, maintenance and daily servicing of the pump assembly. What’s app +8615972752793Luben@youlongpetroWhen benchmarked against conventional cementing plunger pumps with identical plunger dimensions, the TPH400 pump delivers superior performance in maximum operating pressure, extended stroke length and enhanced self-priming capability.
2. General Specification
Maximum working pressure: 76.2Mpa (11,200Psi W/ 4 1/2″ fluid end)
Maximum flow rate: 1.50m3/min
Density adjustment range: 1.3-2.5g/cm3
Automatic control accuracy: ±0.02 g/cm3
Mixing capacity: 0.3-2.3m3/min
Operating ambient temperature: -20°C to 50°C
Overall dimension (mm): 9700(L) x 2500(W) x 4200 (H)
Net weight: 24000kg
| Configuration | |
| Chassis | North Benz 3525A 6×6 |
| Engine | C13 475HP@2100RPM |
| Transmission | Allision 4700 OFS |
| Triplex pump | SERVA TPH400x4.5 |
| Mixing system | High energy recirculating jet mixing system |
| Density control system | ACM-III 1 auto density control system |
| Slurry recirculating | SERVA RA56 |
| Booster pump | Serva RA56 (or RA45) |
| Mixing water pump | Serva RA43 |
| Measuring tank volume | 2x108BL stainless steel tank |
| Mixing tank volume | 1.6M3 |
3. Features
– Equipped with a 1m3 surge tank, the unit stabilizes bulk cement conveying status effectively, which further enhances the automatic control precision and overall cement slurry quality.
– The mixing system obtains partial power supply from the chassis engine, which improves the actual output power of the deck engine during field operations.What’s app +8615972752793Luben@youlongpetro
– Adopting TPH400 inline mounting layout, the structural design greatly lowers the difficulty of daily pump maintenance and routine servicing work.
– Featured with high-energy recirculating jet mixing system for efficient slurry preparation.
– The off-center dry cement valve structure prevents blockage and clogging issues of bulk cement transmission.
– Equipped with an air inlet shutoff emergency kill system to ensure operational safety under abnormal conditions.
– Adopts SPS non-leakage packing system for reliable sealing performance.What’s app +8615972752793Luben@youlongpetro
– Built-in plunger pump overpressure protection system to avoid equipment damage caused by abnormal pressure.
– F300 non-radioactive densitometer features simple cleaning procedures, as well as high safety and operational stability.
– Optimized and simplified operation logic conforms to conventional oilfield working habits and on-site operation requirements.
– Fitted with a 10-inch operation display screen, enabling real-time and intuitive monitoring of all working data.
– Supports portable wireless and wired dual-mode data acquisition system for flexible data collection and recording.
