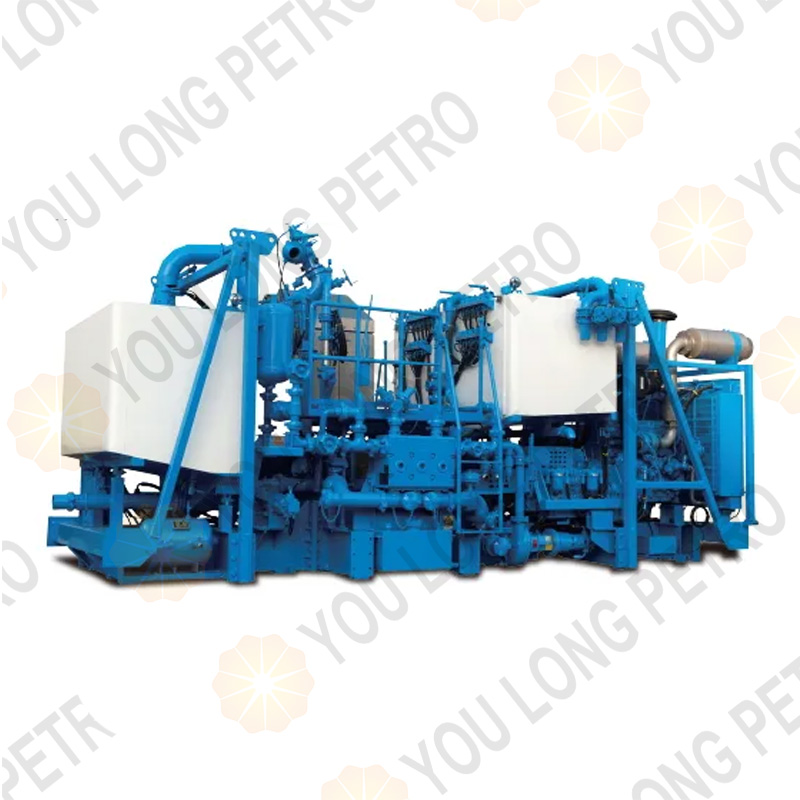

PCS-421B Cementing Equipment Skid Mounted Auto Density Control Double Pump SJS SERVA
描述
PCS-421B Cementing Equipment Skid Mounted Auto Density Control Double Pump SJS SERVA
Skid mounted cementing units are widely deployed for offshore operations and remote onshore working scenarios, including desert zones that are inaccessible to conventional transport vehicles. The equipment offers flexible pump configuration options covering three mainstream cementing plunger pump models: TPA400, TPH400 and TPB600, with assorted plunger sizes adaptable to diverse field working conditions. WhatsApp+8615972752793 The whole unit is engineered with full-range anti-corrosion treatment to suit long-term offshore service environments. In accordance with the unique operational features of offshore platforms, a complete Zone-II explosion-proof version of the cementing skid is also available.
1. Overview
The PCS-421B is an integrated skid-mounted mixing and pumping unit featuring advanced continuous mixing performance and precise automatic density control technology. It serves as a high-end optimized solution for modern oilfield cementing operations.
The complete unit integrates a rigid skid frame, dual engines, two sets of transmissions, a pair of TPA400 triplex pumps, full hydraulic system, high and low pressure pipeline systems, as well as the ACM automatic mixing system. The high-energy mixing system is driven by power take-off (PTO) from the two transmissions. WhatsApp+8615972752793 Benefiting from its highly integrated and compact structural layout, the skid unit is perfectly suited for installation and operation on space-limited offshore drilling platforms.Luben@youlongpetro.com
This versatile skid equipment is applicable for multiple oilfield working services, including well cementing, acidizing treatment, oil well pressure testing and various fluid pumping tasks for offshore, onshore and desert oilfield sites.
2. General Specification
Max. working pressure: 69MPa (w/ 3 3/4″ fluid end)
Max. flow: 3.28m3/min (w/two 5″ fluid ends)
Density range: 1.3~2.5g/cm3
Auto control precision: ±0.02 g/cm3
Mixing capacity: 0.3~2.3m3/min
Working ambient temperature: -20°C – 50°C
Overall dimension (mm): 7400(L) x 2500(W) x 3265(H)
Net weight: 20000kg
3. Technical Specification
| Engine | C13 475 HP@2100 RPM (2sets) | |||
| C15 540HP@2100RPM (optional) | ||||
| Detroit S60 475HP@2100RPM (optional) | ||||
| Transmission | Allision 4700OFS (5 forward gears + neutral gear) (2sets) | |||
| Hydraulic system | driven by transmission FTO, closed loop for c-pumps, open loop for agitators | |||
| Triplex pump (2 sets) | ||||
| Model/type | SERVA TPA400 Reciprocal, horizontal single action plunger pump | |||
| Stroke | 5″(127mm) | |||
| Max. B.H.P. | 400 BHP (294Kw) | |||
| Chain case ratio | 27:40 | |||
| Gear ratio | 25:108 | |||
| Fluid End | 3 3/4″ | 4 1/2″ | 5″ | |
| Rated pressure | 69MPa | 48.3MFa | 38MPa | |
| Max. discharge rate | 0.92 m3/min | 1.34 m3/min | 1.64 m3/min | |
| ACM-lll.1mixing system | ||||
| Mixer | High energy recirculating mixer | |||
| Dry cement valve | off-center bulk metering valve | |||
| Water pump | SERVA 4X3 (1.5 m3/min@0.78MPa) | |||
| Redrculating/booster pump | SERVA RA56 (3.7 m3/min@0.45MPa) (two sets) | |||
| Densitometer | Micro Motion 3″ F300 non-radioactive densitometer | |||
| Computer system | AB PLC | |||
| Others Luben@youlongpetro.com | ||||
| Mixing tank | 8 BBL (1.4 m3) | Fuel tank | 900 L | |
| Measuring tank | 2X10 BBL (2X1.5 m3) | Hydraulic oil tank | 170 L | |
| Air tank | 80L | |||
3. Features
– Equipped with high energy recirculating jet mixing system to achieve uniform and efficient slurry preparation.
– Adopts off-center dry cement valve structure to effectively prevent bulk cement blockage during feeding.
– Built-in air inlet shutoff emergency kill system to ensure operational safety under abnormal conditions.
– Integrated plunger pump overpressure protection system to avoid equipment damage caused by pressure overload.
– Configured with SPS non-leakage packing system for stable and zero-leakage sealing performance.
– Independent emergency mixing system ensures continuous operation in case of system failure.
– F300 Non-radioactive densitometer supports convenient daily cleaning, WhatsApp+8615972752793 with outstanding safety and operational reliability.
– Optimized operation logic simplifies field operation and fits conventional oilfield working habits.
– Equipped with a 10-inch operation screen, supporting real-time working data monitoring and parameter input.
– Optional portable wireless and wired dual-mode data acquisition system for flexible on-site data collection.
– Multiple heat dissipation solutions are available, including fan radiator and sea water heat exchanger.
– Optional C7 auxiliary power unit provides stable standby power support for the whole system.Luben@youlongpetro.com
– Optional ZONE-II explosion-proof kit enables safe operation in classified hazardous working areas.
