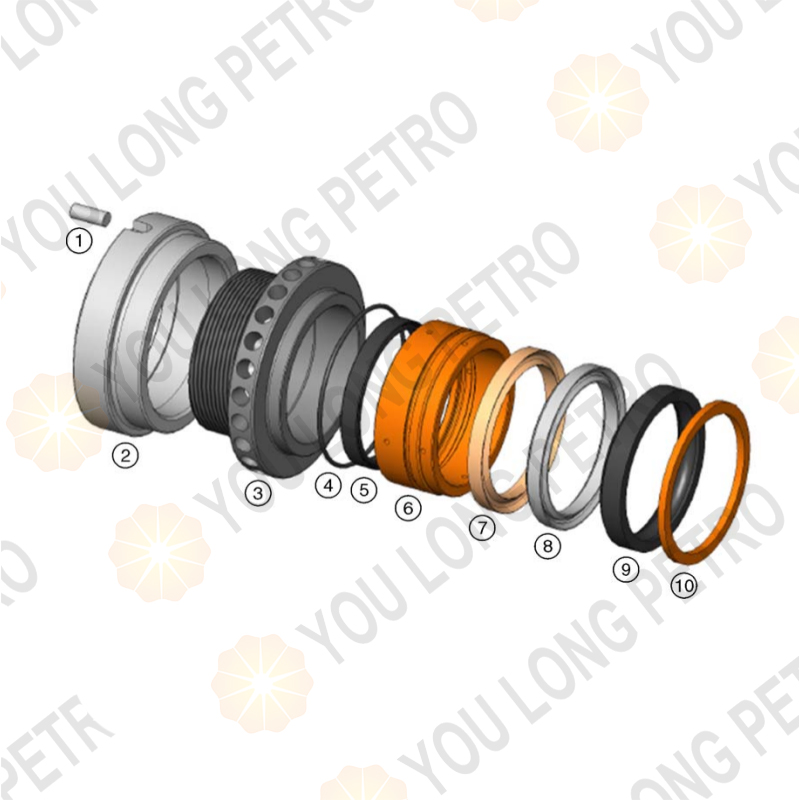

Halliburton HT400 Triplex Pump And Parts
描述
Product Details
1.HT400 Triplex Plunger Pump Introduction
HT400 is a horizontal triplex single-acting reciprocating plunger pump, specially designed for well service operations in oil and gas fields. It is a high-performance heavy-duty pump with stable operation and strong pressure-bearing capacity, widely used in various downhole operation scenarios.
2.Model Definition
Horizontal Triplex (3-cylinder) Rated input power of 400 BHP (Brake Horsepower)
3.Core Technical Parameters
• Pump Type: Horizontal triplex single-acting plunger pump
• Rated Power: 400 BHP Whatsapp+8615972752793 luben@youlongpetro.com https://www.youlongpetro.com
• Maximum Rod Load: 100,000 lbs
• Stroke Length: 8 inches (203.2 mm)
• Gear Ratio: 8.6:1 (cementing configuration)
• Standard Plunger Sizes: 3 3/8″ (85.7mm), 4″ (101.6mm), 4.5″ (114.3mm), 5″ (127.0mm)
• Maximum Working Pressure: Up to 20,000 psi (depends on plunger size)
• Net Weight: Approx. 6,500 lbs
4.Main Structure
The pump consists of two core components:
1. Power End: Includes crankshaft, connecting rod, crosshead, gearbox and bearing parts, responsible for converting rotary power into linear reciprocating motion.

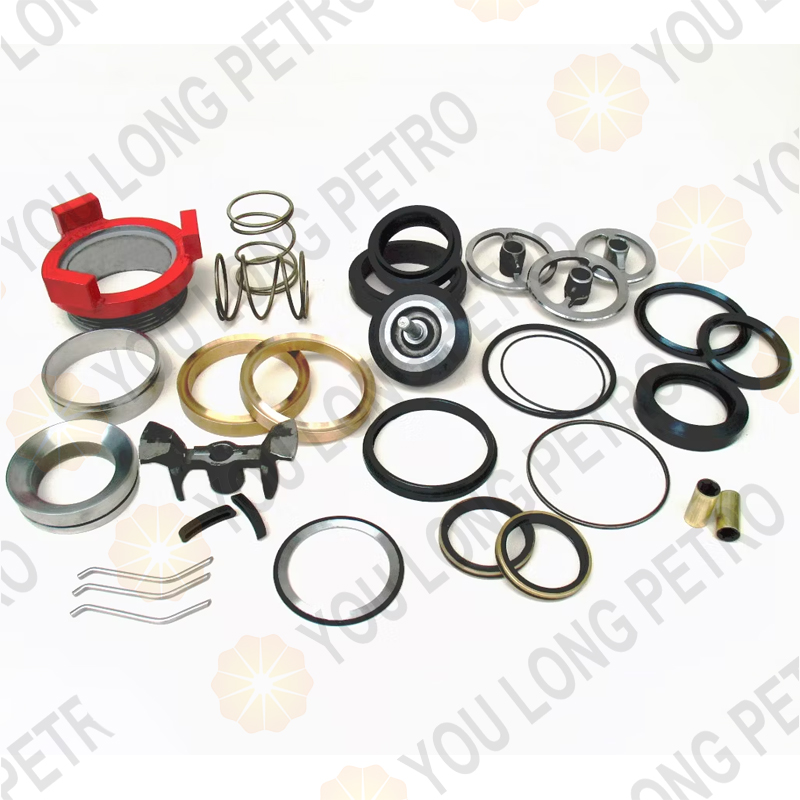

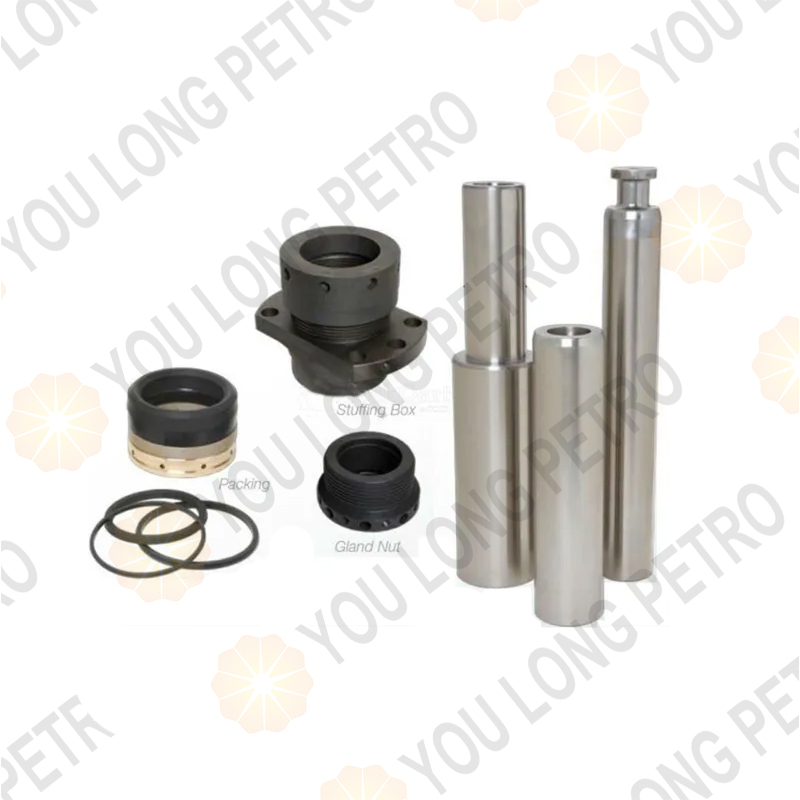

2. Fluid End: Includes plunger, packing assembly, valve assembly, valve seat, sealing parts and other quick-wear parts, used for sucking and discharging high-pressure fluid.Whatsapp+8615972752793 luben@youlongpetro.com https://www.youlongpetro.com
5.Working Principle
The power input drives the crankshaft to rotate through the gearbox, then pushes the plunger to do reciprocating linear motion via connecting rod and crosshead. Whatsapp+8615972752793 luben@youlongpetro.com https://www.youlongpetro.comThe alternating opening and closing of suction and discharge valves realizes continuous suction and high-pressure discharge of liquid, realizing stable high-pressure fluid transmission.
6.Main Applications
Widely applied in oilfield well service operations, including well cementing, acidizing, small-scale fracturing, gravel packing, Whatsapp+8615972752793 luben@youlongpetro.com https://www.youlongpetro.comwell stimulation and other high-pressure fluid injection operations.
YOU LONG PETRO can supply the following products. Should you require other brands or customized items, please feel free to contact us anytime.
| HT400 Pump Power-End Parts | ||||
| Name | SAP PN. | Legacy No. | Qty | Description |
| Worm Gear Drive-End Assembly | 100007816 | 316.11631 | 2 | Gasket, Worm Housing Input End |
| 100058137 | 316.11619 | 1 | Retainer, Bearing, Worm-Drive End | |
| 100058140 | 316.11625 | 1 | Bearing, Drive End-Worm Shaft | |
| 100058139 | 316.1162 | 1 | Inner Race for 316.11625 | |
| 100029186 | 70.46241 | 1 | Seal, Oil, 53-in. x 7448, Fl, 4-in. B x 5 1/2-in. OD x 1/2-in. Wide | |
| 100058134 | 316.11615 | 1 | Cover, Oil Seal Retainer Whatsapp+8615972752793 luben@youlongpetro.com https://www.youlongpetro.com | |
| 100029874 | 70.58806 | 4 | Washer, Flat, 3/8-in. WI, Pl | |
| 13431 | 70.43839 | 4 | Screw Hex Socket, 3/8-in.16NC x 1 1/4-in., Unbrako/Loc-Wel | |
| 100054533 | 280.03021 | 1 | Flange, Companion, 1810 Series, 3.0 – 10 Spline | |
| 100058133 | 316.11613 | 1 | Washer, Worm Yoke Retainer | |
| 100058132 | 316.11611 | 1 | Washer, Lock, Worm Yoke Retainer | |
| 100028455 | 70.43816 | 2 | Screw, Hex Cap, 3/8-in. 16UNC x 1 1/4-in., Pl | |
| Cone Drive (8.4:1) Worm Gear Thrust End Assembly | 100058310 | 316.16416 | 1 | Plug, Orifice, 1/8-in. NPT, 0.157-in. Diameter Hole |
| 100028380 | 70.4368 | 12 | Screw, Hex Socket, 1/2-in. 13UNC x 5 1/2-in., Drilled Head | |
| 100058235 | 316.132 | 1 | Plate, thrust, bearing retainer modified for plunger lube pump | |
| 100015435 | 8.34062 | 2 | O-Ring, 90D, 8, 7 3/4-in. x 1/8-in. | |
| 100011748 | 317.51064 | 1 | Adapter, HQ, Worm Shaft, Plunger Lube | |
| 100058150 | 316.11667 | as req. | Shim, Clearance, Worm Thrust Bearing, 0.003 in. | |
| 100011686 | 316.11669 | as req. | Shim, Clearance, Worm Thrust Bearing, 0.005 in. | |
| 100011687 | 316.11671 | as req. | Shim, Clearance, Worm Thrust Bearing, 0.010 in. | |
| 100011688 | 316.11673 | as req. | Shim, Clearance, Worm Thrust Bearing, 0.020 in. | |
| 100058210 | 316.131 | 1 | Nut, Lock, HT400, worm thrust end, nut and star washer | |
| 100058142 | 316.11629 | 1 | Bearing, Thrust, Stack Worm | |
| 100058144 | 316.11633 | 1 | Bushing, Worm Thurst Bearing | |
| 100058145 | 316.11634 | 1 | Key, Worm-Thrust Bearing | |
| 100058141 | 316.11627 | 1 | Bearing, Thrust-End, Worm Shaft | |
| 100058147 | 316.11645 | 1 | Retainer, Iron Worm-Thrust End Bearing | |
| 100015435 | 8.34062 | 2 | O-Ring, 90D, 8, 7 3/4-in. x 1/8-in. | |
| 100058249 | 316.13253 | as req. | Shim, 0.005-in., Worm Positioning | |
| 100058250 | 316.13254 | as req. | Shim, 0.010-in., Worm Positioning | |
| 100058251 | 316.13255 | as req. | Shim, 0.020-in., Worm Positioning Whatsapp+8615972752793 luben@youlongpetro.com https://www.youlongpetro.com | |
| 100057938 | 315.31154 | 1 | Key, Worm-Thrust Bearing Spacer | |
| 100058285 | 316.13522 | 1 | Worm, Gear, 8.4 to 1 Ratio, Cone Drive | |
| Holroyd (8.6:1) Worm Gear Thrust-End Assembly | 100011699 | 316.13657 | 8 | Screw, Cap, Worm Housing, RH |
| 100012919 | 70.32821 | 4 | Nut, Elastic Stop, 1/2-13 NC, Heavy, PL | |
| 100011684 | 316.11637 | 1 | Pump, Assembly, Oil, 100 GPM, Tuthill, HT-400™ PE | |
| 100058267 | 316.13306 | 4 | Stud, Long Loc Insert, Tuthill Oil Pump Mounting | |
| 100013727 | 8.34061 | 1 | O-Ring, 90 Duro 7 3/4 X 7 1/2 X 1/8, 568-264 | |
| 100058150 | 316.11667 | as req. | Shim, Clearance, Worm Thrust Bearing, 0.003 in. | |
| 100011686 | 316.11669 | as req. | Shim, Clearance, Worm Thrust Bearing, 0.005 in. | |
| 100011687 | 316.11671 | as req. | Shim, Clearance, Worm Thrust Bearing, 0.010 in. | |
| 100011688 | 316.11673 | as req. | Shim, Clearance, Worm Thrust Bearing, 0.020 in. | |
| 100058210 | 316.131 | 1 | Nut, Lock, HT400, Worm Thrust End, Nut and Star Washer | |
| 100058146 | 316.11644 | 1 | Adapter, Brown and Sharp Lubricator Pump | |
| 100058142 | 316.11629 | 1 | Bearing, Thrust, Stack Worm | |
| 100058144 | 316.11633 | 1 | Bushing, Worm Thurst Bearing | |
| 100058145 | 316.11634 | 1 | Key, Worm-Thrust Bearing | |
| 100058141 | 316.11627 | 1 | Bearing, Thrust-End, Worm Shaft | |
| 100058147 | 316.11645 | 1 | Retainer, Iron Worm-Thrust End Bearing | |
| 100015435 | 8.34062 | 1 | O-Ring, 90D, 8, 7 3/4-in. x 1/8-in. | |
| 100057938 | 315.31154 | 1 | Key, Worm-Thrust Bearing Spacer | |
| 100058130 | 316.11601 | 1 | Gear, Worm, 8.6:1 Ratio, Holroyd, HT-400™ PE | |
| Ring Gear Subassembly (A) | 100027204 | 100058121 | 1 | Pin, Cotter, 1/8-in. x 1 1/2-in., Spring Steel |
| 100026544 | 70.3297 | 1 | Nut, Hex Slot, 1-in. 14NF, Pl | |
| 100058092 | 316.11407 | 4 | Screw, Cap, Spline Drive Whatsapp+8615972752793 luben@youlongpetro.com https://www.youlongpetro.com | |
| 100030594 | 70.62391 | 1 | Wire, Stove Pipe, 19 Ga., 72-in. Long | |
| 100058107 | 316.11521 | 1 | Spider, Crankshaft Thrust Retainer | |
| 100058105 | 316.11519 | 1 | Bushing, Spider Spacer | |
| 100058100 | 316.11512 | as req. | Shim, Positioning, Crankshaft Axial, 0.020-in. | |
| 100058104 | 316.11518 | as req. | Shim, Positioning, Crankshaft Axial, 0.040-in. | |
| 100058109 | 316.11522 | as req. | Shim, Positioning, Crankshaft Axial, 0.060-in. | |
| 100058110 | 316.11523 | 1 | Coupling, Crankshaft, Spline Drive | |
| 100030594 | 70.62391 | 1 | Wire, Stove Pipe, 19 Ga., 190-in. Long | |
| 100058111 | 316.11524 | 24 | Screw, Cap, Ring, Mounting, Gear Clamp | |
| 100058125 | 316.11548 | 24 | Washer, Left-Hand Gear Bearing Clamp | |
| 100028108 | 70.42965 | 1 | Rod, Welding, L-61, 1/8-in., 95-in. Long | |
| 100023759 | 70.17324 | 1 | Connector, No. 8, 128-B Reliance | |
| 100058127 | 316.11551 | 1 | Flange, Gear Spline Drive Whatsapp+8615972752793 luben@youlongpetro.com https://www.youlongpetro.com | |
| 100058128 | 316.11553 | 1 | Adapter, Clamp Ring, HT-400™, PE, Right-Hand Only | |
| 100011699 | 316.13657 | 16 | Screw, Cap, Worm Housing, Right-Hand | |
| 100030594 | 70.62391 | 1 | Wire, Stove Pipe, 19 Ga., 120-in. Long | |
| 100058123 | 316.11545 | 1 | Ring, Thrust, Gear Bearing | |
| 100058117 | 316.11535 | as req. | Shim, Clearance, Gear Support Bearing, 0.003-in. | |
| 100058118 | 316.11537 | as req. | Shim, Clearance, Gear Support Bearing, 0.005-in. | |
| 100058119 | 316.11539 | as req. | Shim, Clearance, Gear Support Bearing, 0.010-in. | |
| 100058121 | 316.11541 | as req. | Shim, Clearance, Gear Support Bearing, 0.020-in. | |
| Ring Gear Subassembly (B) | 100058122 | 316.11543 | 1 | Bearing, Gear Support |
| 100058120 | 316.1154 | 2 | Thrust Cage Assembly for 316.11543 | |
| 100058284 | 316.13521 | 1 | Gear, Ring, 8.4 to 1 Ratio, Cone Drive Use only with Cone Drive worm gear (100058285). | |
| 100058103 | 316.11517 | 1 | Gear, Ring, 8.6 to 1 Ratio Holroyd Use only with Holroyd worm gear (100058130) | |
| 100058129 | 316.11556 | 24 | Lug, Gear Bearing Clamp, Right Hand Only | |
| 100028108 | 70.42965 | 1 | Rod, Welding, L-61, 1/8-in., 95-in. Long, Right Hand Only | |
| 100058111 | 316.11524 | 24 | Screw, Cap, Ring Mounting, Gear Clamp, Right Hand Only | |
| 100023759 | 70.17324 | 1 | Connector, No. 8, 128-B Reliance, Right Hand Only | |
| 100028247 | 70.43381 | 16 | Screw, Hex Socket, 1/2-in. 13NC x 1 1/4-in. | |
| 100029934 | 70.58986 | 16 | Washer, Lock, 1/2-in., Int Shakeproof, Pl | |
| 100058112 | 316.11525 | 1 | Support, Bearing, Ring Gear Whatsapp+8615972752793 luben@youlongpetro.com https://www.youlongpetro.com | |
| 100058113 | 316.11527 | as req. | Shim, Positioning, Gear Side, 0.003-in. | |
| 100058114 | 316.11529 | as req. | Shim, Positioning, Gear Side, 0.005-in. | |
| 100058115 | 316.11531 | as req. | Shim, Positioning, Gear Side, 0.010-in. | |
| 100058116 | 316.11533 | as req. | Shim, Positioning, Gear Side, 0.020-in. | |
| 100058092 | 316.11407 | 2 | Screw, Cap, Spline Drive | |
| 100030594 | 70.62391 | 1 | Wire, Stove Pipe, 19 Ga., 24-in. Long | |
| 100081184 | 70.58959 | 4 | Washer, Lock, 1/2-in., Stl-Pl | |
| 100058101 | 316.11514 | 1 | Stud, Flanged, Crankshaft Thrust | |
| 100028108 | 70.42965 | 1 | Rod, Welding, L-61, 1/8-in., 54-in. Long, Right Hand Only | |
| Crankshaft Main Bearing Subassembly | 100058283 | 316.13503 | 2 | Bearing, Main Outboard |
| 100058282 | 316.13501 | 2 | Bearing, Main InboardWhatsapp+8615972752793 luben@youlongpetro.com https://www.youlongpetro.com | |
| 101384369 | – | 4 | Washer, Flat, SAE 5/16, 11/32 ID, 11/16 OD, 1/16 Thk, Stl | |
| 100058709 | 317.51017 | 12 | Washer, Outer Race, Crankshaft, Main Bearing, HQ | |
| 100002166 | 70.43363 | 4 | Screw, Hex Socket, 5/16-in. 18NC x 1-in. | |
| 100026483 | 70.32811 | 4 | Nut, Elastic Stop, 5/16-in. 18NC, Heavy, Pl | |
| 100058266 | 316.13304 | 4 | Screw, Cap, Inboard Bearing Race Retainer | |
| 100028496 | 70.43877 | 3 | Screw, Hex Cap, 1/2-in. 13NC x 2 3/4-in. | |
| 100058095 | 316.11505 | 15 | Washer, Bearing Retainer, Forged | |
| 100058233 | 316.13198 | 6 | Washer, Retainer, Inner Race, Heavy-Duty Main Bearing | |
| 100030907 | 70.70309 | 12 | Nut, Self-Locking, 1/2-in. 13NC x 3 1/2-in., Pl | |
| 100028494 | 70.43875 | 6 | Screw, Hex Cap, 1/2-in. 13NC x 3 1/2-in., Pl | |
| 100058898 | 317.55208 | 1 | Crankshaft Assembly, Machined, +0.125, No Nitride | |
| Crosshead and Connecting Rod Subassembly | 100138092 | 70.4319 | 18 | Screw, FH Cap, 1/4-in. 20NC x 5/8-in., Hex Socket |
| 100058170 | 316.11819 | 3 | Shoe Top, Crosshead Whatsapp+8615972752793 luben@youlongpetro.com https://www.youlongpetro.com | |
| 100058172 | 316.11823 | as req. | Shim, Crosshead Shoe, Top, 0.003-in. | |
| 100058171 | 316.11821 | as req. | Shim, Crosshead Shoe, Top, 0.005-in. | |
| 100058173 | 316.11825 | as req. | Shim, Crosshead Shoe, Top, 0.010-in. | |
| 100058174 | 316.11827 | as req. | Shim, Crosshead Shoe, Top, 0.020-in. | |
| 100002817 | 316.13811 | 3 | Crosshead, Heavy Duty Whatsapp+8615972752793 luben@youlongpetro.com https://www.youlongpetro.com | |
| 100058180 | 316.11847 | – | Shim, Bottom Crosshead, 0.005-in. | |
| 100058181 | 316.11848 | – | Shim, Bottom Crosshead, 0.010-in. | |
| 100058175 | 316.11832 | 3 | Shoe Bottom, Crosshead | |
| 100026445 | 70.32721 | 3 | Nut, Elastic Stop, 5/16-in. 24NF, LT, 21NE-054 | |
| 100058176 | 316.11833 | 3 | Screw, Cap, Retaining, Crosshead Pin | |
| 100057933 | 315.1193 | 6 | Washer, Dished | |
| 100011690 | 316.11831 | 6 | Key, Crosshead Pin | |
| 100002813 | 316.11829 | 3 | Pin, Crosshead Whatsapp+8615972752793 luben@youlongpetro.com https://www.youlongpetro.com | |
| 100011691 | 316.1191 | 3 | Connecting Rod, Forging, Machined | |
| 100058186 | 316.11913 | 3 | Bushing, Connecting-Rod Pin | |
| 100058184 | 316.11911 | 12 | Screw, Connecting-Rod Whatsapp+8615972752793 luben@youlongpetro.com https://www.youlongpetro.com | |
| 100058185 | 316.11912 | 12 | Washer, Connecting-Rod Cap | |
| 100025800 | 70.27196 | 12 | Helicoil Insert, No. 1185, 12-in. x 1 7/8-in. Long | |
| 100011758 | 317.55214 | 3 | Bearing, Bottom, Connecting Rod, + 0.125, HQ2000 | |
| 100011759 | 317.55215 | 3 | Bearing, Top, Connecting Rod, + 0.125, HQ2000 | |
| 100057932 | 315.11416 | 3 | Dowel, Connecting-Rod Cap | |
| 100030594 | 70.62391 | 1 | Wire, Stove Pipe, 19 Ga., 144-in. Long | |
| Crosshead Slide Subassembly | 100028805 | 70.44781 | 8 | Screw, Set, 1/4-in. 20NC x 1/4-in., Cup Pt, Hex Socket, Pl |
| 100028806 | 70.44782 | 8 | Screw, Set, 1/4-in. 20NC x 3/4-in., Cup Pt, Hex Socket, Pl | |
| 100058286 | 316.13802 | 4 | Clamp, Outboard, Crosshead Slide | |
| 100058164 | 316.11805 | 4 | Foot, Right-Hand Crosshead Slide Clamp | |
| 100058166 | 316.11807 | 4 | Screw, Crosshead Slide Clamp | |
| 100058169 | 316.11817 | 4 | Foot, Left-Hand Crosshead Slide Clamp | |
| 100058161 | 316.11801 | 3 | Slide, Top Crosshead | |
| 100058162 | 316.11803 | 3 | Slide-Bottom, Crosshead | |
| 100058177 | 316.11834 | as req. | Shim, Crosshead Slide, 0.002-in. | |
| 100058178 | 316.11835 | as req. | Shim, Crosshead Slide, 0.005-in. | |
| 100058179 | 316.11836 | as req. | Shim, Crosshead Slide, 0.010-in. | |
| Schroeder Filter/Strainer Lubrication Subassembly | 100058197 | 316.11964 | 1 | Cap, By-Pass, Schroeder Oil System |
| 100058198 | 316.11965 | 1 | Screw, Adjust, Bypass, Schroeder Oil System | |
| 100011694 | 316.11932 | 1 | Spring, Bypass, Oil Pressure 80 to 100 psi | |
| 100058200 | 316.11966 | 1 | Gasket, Cap, Screw, Bypass, Schroeder Oil Systems | |
| 100001377 | 70.00427 | 1 | Ball, Steel, 2-in., Chrome Steel, Grade 50 | |
| 100058195 | 316.11963 | 1 | Body, Valve, Bypass, Schroeder Oil System | |
| 100028439 | 70.43786 | 6 | Screw, Hex Cap, 5/16-in.18NC x 1-in., Plated | |
| 100015040 | 70.58952 | 8 | Washer, Lock, 5/16-in., Stl, Pl | |
| 100000966 | 8.34031 | 2 | O-Ring, 90D, 3 1/4-in. x 3-in. x 1/8-in. | |
| 100029873 | 70.58805 | 6 | Washer, Flat, 5/16-in., Wi, Pl | |
| 100058193 | 316.11959 | 1 | Manifold, Oil Strainer and Filter, Machined | |
| 100028485 | 70.43864 | 16 | Screw, Hex Cap, 1/2-in.13NC x 1-in., Pl | |
| 100081184 | 70.58959 | 16 | Washer, Lock, 1/2-in., Stl, Pl | |
| 100021413 | 70.06262 | 1 | Strainer, Oil, Magnetic Element, 100 gpm, 300 psi | |
| 100021412 | 70.0626 | 1 | Filter, Oil, 100 gpm, 300 psi | |
| 100000961 | 8.34022 | 4 | O-Ring, 90D, 2 1/8-in. x 1 7/8-in. x 1/8-in. | |
| 100024782 | 70.23477 | 4 | Flange, Half, 1 1/2-in., 3,000 psi, SF-2522-24 | |
| 100036060 | 70.97198 | 1 | Adapter, Hose, Straight, 1 5/8-12 JIC Male x 1.5 C61 Flange Head | |
| 100058298 | 316.14147 | 1 | Bracket, Schroeder, Filter Whatsapp+8615972752793 luben@youlongpetro.com https://www.youlongpetro.com | |
| 100023268 | 70.15975 | 1 | Clamp, Exhaust, 4 1/2-in., Stemco | |
| 100028435 | 70.43781 | 4 | Screw-Hex Cap, 5/16-in. 18NC x 1/2-in., Pl | |
| 100013115 | 70.76708 | 35 | Washer, Seal, 5/16-in., Barwood | |
| Power-End Lubrication Hose/Line Subassembly | 100002493 | 70.88352 | 1 | Gauge, Oil Pressure, 0 to 150 lb, Microswitch |
| 100049565 | 270.08673 | 1 | Bracket, Heat Indicator, Murphy Gauge | |
| 100058080 | 316.11188 | 1 | Bracket, Gauge, Oil Temp and Press-Schroeder | |
| 100013017 | 70.43814 | 2 | Screw, Hex Cap, 3/8-in. 16NC x 1-in., Pl | |
| 100013059 | 70.58955 | 2 | Washer, Lock, 3/8-in., Stl, Pl | |
| 100029874 | 70.58806 | 2 | Washer, Flat, 3/8-in. WI, Pl | |
| 100012921 | 70.32912 | 2 | Nut, Hex, 3/8-in. 16NC, Pl | |
| 100028488 | 70.43868 | 2 | Screw, Hex Cap, 1/2-in.13NC x 1 1/2-in., Pl | |
| 100081184 | 70.58959 | 2 | Washer, Lock, 1/2-in., Stl, Pl | |
| 100026525 | 70.32914 | 2 | Nut, Hex, 1/2-in. 13NC, Pl | |
| 100058261 | 316.1328 | 1 | Hose Assembly, Lube Pressure, HT-400™ Power End | |
| 100058262 | 316.13282 | 1 | Hose Assembly, Gear Support Bearing Lube, HT-400™ Power End | |
| 100058263 | 316.13283 | 1 | Hose Assembly, Thrust Bearing Lube, HT-400™ Power End | |
| 100025591 | 70.26634 | 1 | Adapter, Hose, 070102-4-2C, 7-16-20 JIC Male x 1/8-27 NPT Male, Steel | |
| 100016618 | 27.00101 | 1 | Coupling, 1/8 NOM 27V, Standard, Steel | |
| 100025640 | 70.26763 | 2 | Adapter, Hose, Straight, 9/16-18 JIC Male x 3/8-18 NPT Male, Steel | |
| 100031391 | 70.72665 | 1 | Adapter, Hose, Tee, 2 x 9/16-18 JIC Male x 9/16-18 JIC SWVL FML, STL | |
| 100025641 | 70.26764 | 1 | Adapter, Hose, Straight, 7/16-20 JIC Male X 3/8-18 NPT Male, Steel | |
| 100012853 | 70.26364 | 3 | Adapter, Hose, Elbow, 9/16-18 JIC Male x 9/16-JIC SWVL FML, STL | |
| 100025596 | 70.26644 | 1 | Adapter, Hose, Straight, 9/16-18 JIC Male X 1/4-18 NPT Male, Steel | |
| 100058310 | 316.16416 | 1 | Plug, Orifice, 1/8 NPT, 0.157 Dia Hole | |
| 101284157 | – | 1 | Tube, Oil Line, General, HT-400™ Pump Power End,(Includes Rubber Lines and Fittings) | |
| 100011692 | 316.11917 | 3 | Bolt, Saddle, Crosshead Oiler | |
| 100002324 | 70.72129 | 6 | Washer, Seal, 1/2-in. Whatsapp+8615972752793 luben@youlongpetro.com https://www.youlongpetro.com | |
| 100011693 | 316.11918 | 6 | Saddle, Oil Line, Crosshead Oiler | |
| 100000946 | 8.33929 | 6 | O-Ring, 90D, 1 1/16-in. x 7/8-in. x 3/32-in. | |
| Crankshaft Lubricator Subassembly | 100010084 | 106.53475 | 1 | Nut, 63121, Thread Protector, 7/8-in., S-W |
| 100057942 | 315.32351 | 1 | Gasket, Drive-Adapter Cap, Gallon Counter | |
| 100028439 | 70.43786 | 4 | Screw, Hex Cap, 5/16-in. 18NC x 1-in., Pl | |
| 100015040 | 70.58952 | 4 | Washer, Lock, 5/16-in., Stl, Pl | |
| 100011695 | 316.13197 | 1 | Injector, Oil, Crankshaft, With l lb 20 Adapter | |
| 100011700 | 316.16414 | 1 | Gasket, Injector, Crankshaft Oil, With No. 20 Adapter | |
| 100001944 | 70.33947 | 1 | O-Ring, 90D, 9/16-in. x 3/8-in. x 3/32-in. | |
| 100002816 | 316.13308 | 1 | Shaft, Drive, Gallon Counter | |
| 100028033 | 70.42144 | 1 | Ring, Retaining, 5000, 156-H, Int, Truarc | |
| 100013005 | 70.42128 | 1 | Ring, Retaining, UR-165-S, Stnls, Spirolox (Used on pre-1981 pumps) | |
| 100013035 | 70.45847 | 1 | Seal, Magnetic Shaft, MSC-65152, Rev B | |
| 100002821 | 316.14142 | 1 | Bushing, Magnetic Seal, Insulator & Counter Drive | |
| Case Cover Subassembly | 100028435 | 70.43781 | 97 | Screw-Hex Cap, 5/16-in. 18NC x 1/2-in., Pl |
| 100013115 | 70.76708 | 67 | Washer, Seal, 5/16-in., Barwood | |
| 100058273 | 316.13321 | 1 | Cover, Long, Crosshead Slide | |
| 100011698 | 316.13323 | 1 | Gasket, Long Cover, Crosshead Slide | |
| 100058237 | 316.1321 | 1 | Plate, Cover, Oil Injector Whatsapp+8615972752793 luben@youlongpetro.com https://www.youlongpetro.com | |
| 100009528 | 316.13301 | 1 | Gasket, Oil Injector, Cover Plate | |
| 100009677 | 70.58981 | 16 | Washer, Lock, 5/16-in., Internal, Shakeproof, Pl | |
| 100029873 | 70.58805 | 12 | Washer, Flat, 5/16-in., Wi, Pl | |
| 100058086 | 316.11344 | 2 | Cover, Connecting Rod Access | |
| 100011682 | 316.11345 | 3 | Gasket, Connecting Rod Access Cover | |
| 100011696 | 316.13244 | 1 | Cover Assembly, Con Rod Access, W/4 1/4-in. OD Filler Neck | |
| 100002844 | 70.12486 | 1 | Cap, Filler, Wisco, Vented | |
| 100002815 | 316.13249 | 1 | Dipstick, Oil, 4 1/4-in. OD Filler Neck | |
| 100058070 | 316.11143 | 1 | Cover, Inspection, Gear | |
| 100011680 | 316.11144 | 1 | Gasket, Cover, Inspection Gear | |
| 100058084 | 316.11311 | 1 | Cover, Plate, Gear Housing | |
| 100002810 | 316.11313 | 1 | Gasket, Cover Plate, Gear Whatsapp+8615972752793 luben@youlongpetro.com https://www.youlongpetro.com | |
| 100058085 | 316.11315 | 1 | Baffle, Inside, Gear Housing | |
| 100058271 | 316.13317 | 1 | Cover, Short Crosshead Slide Whatsapp+8615972752793 luben@youlongpetro.com https://www.youlongpetro.com | |
| 100011697 | 316.13319 | 1 | Gasket, Short Cover, Crosshead Slide | |
| 100058208 | 316.131 | 1 | Power-End Case, Machined, Right-Hand Drive | |
| 100058299 | 316.161 | 1 | Power-End Case, Machined, Left-Hand Drive | |
| L-2 Spacer Subassembly | 100002811 | 316.11621 | 12 | Nut, 1-14 NF, Internal Wrenching, 1.03 Thread Length |
| 100002833 | 316.21066 | 3 | Retainer, Push Rod, HT-400™, Two Piece Nose, L-Spacer | |
| 100000959 | 8.3402 | 3 | O-Ring, 90 Duro, 1 7/8 x 1 5/8 x 1/8, 568-223 | |
| 100002832 | 316.21065 | 3 | Push Rod, Two Piece, L-Spacer, HT-400™ | |
| 100002971 | 316.25166 | 3 | Tie Rod, Push Rod, L-Spacer, HT-400™ | |
| 100058516 | 316.25168 | 1 | Spacer, L-Frame, Machined, HT-400™ FE & PE | |
| 100058513 | 316.251 | 1 | Guard Assembly, HT-400™, L-2 Spacer | |
| 100011067 | 106.63914 | 2 | Hinge, DR-35, Latch, Hood, Bassick | |
| 100026633 | 70.33263 | 4 | Nut, Clip, 10-24, Steel With Bright Green Finish | |
| 100028741 | 70.4454 | 4 | Screw, Round Head, Machine, No 10-24 NC x 3/8, PL | |
| 100029918 | 70.58947 | 4 | Washer, Lock, #10 ST Plated | |
| 100013017 | 70.43814 | 12 | Screw, Hex Cap, 3/8-16 NC x 1, PL, Spec 70.43917 | |
| 100013059 | 70.58955 | 12 | Washer, Lock, 3/8, Steel, PL, Spec | |
| 100002804 | 316.10012 | 3 | Retainer, Push Rod Seal Housing, L-2 Spacer, HT-400™ Pump | |
| 100001903 | 70.33739 | 3 | O-Ring, 70 Duro, 5 11/16 x 5 1/2 x 3/32 568-161 | |
| 100002805 | 316.10013 | 3 | Housing, Push Rod Seal, Floating, L-2 Spacer, HT-400™ | |
| 100002806 | 316.10014 | 6 | Seal, Push Rod, L-Spacer, HT-400™ Whatsapp+8615972752793 luben@youlongpetro.com https://www.youlongpetro.com | |
| 100002968 | 316.24923 | 12 | Stud, Attaching, Fluid End to Power End, L Spacer, HT-400™ Pump | |
| L-4 Spacer Subassembly | 100002811 | 316.11621 | 12 | Nut, 1-14 NF, Internal Wrenching, 1.03 Thread Length |
| 100002833 | 316.21066 | 3 | Retainer, Push Rod, HT-400™, Two Piece Nose, L-Spacer | |
| 100000959 | 8.3402 | 3 | O-Ring, 90 Duro, 1 7/8 x 1 5/8 x 1/8, 568-223 | |
| 100002832 | 316.21065 | 3 | Push Rod, Two Piece, L-Spacer, HT-400™ | |
| 100002971 | 316.25166 | 3 | Tie Rod, Push Rod, L-Spacer, HT-400™ | |
| 100058500 | 316.24926 | 12 | Tube, Frame, L-4 Spacer | |
| 100009593 | 316.25101 | 1 | Guard Assembly, HT-400™, L-4 Spacer | |
| 100011068 | 106.63915 | 2 | Fastener, Bar, Hood, Bassick, DH-40 | |
| 100026443 | 70.32708 | 4 | Nut, Elastic Stop, 10-32 NF | |
| 100028197 | 70.43289 | 4 | Screw, Hex Socket, #10-32 NF x ½, SS | |
| 100029949 | 70.59015 | 4 | Washer, Lock, #10 SS Whatsapp+8615972752793 luben@youlongpetro.com https://www.youlongpetro.com | |
| 100058335 | 316.21253 | 2 | Mount, Latch, Guard, Aluminum Spacer, HT-400™ Pump | |
| 100023243 | 70.15877 | 4 | Clamp, Hose, SAE #36, 1 7/16 – 2 3/4 | |
| 100028439 | 70.43786 | 9 | SCREW, HEX CAP, 5/16-18 NC X 1, PL | |
| 100015040 | 70.58952 | 9 | Washer, lock 5/16 , Steel Pl | |
| 100002818 | 316.1407 | 3 | Retainer, Push Rod Seal Housing, L4 Spacer, HT-400™ | |
| 100002025 | 70.34106 | 3 | O-Ring, 70 Duro, 4 15/16 X 4 3/4 X 3/32 568-158 | |
| 100002819 | 316.14072 | 3 | Housing, Push Rod Seal, Floating, L4 Spacer, HT400 | |
| 100002806 | 316.10014 | 6 | Seal, Push Rod, L-Spacer, HT-400™ | |
| 100058501 | 316.24927 | 1 | Plate, PE, Steel, HT-400™, L-Spacer | |
| 100002968 | 316.24923 | 12 | Stud, Attaching, Fluid End to Power End, L Spacer, HT-400™ Pump | |
| HT400 Pump Fluid-End Parts | ||||
| SAP PN. | Legacy No. | Qty | Description | |
| 3-3/8- and 4.0-inch (No. 3) Suction Valve Subassemblies | 100058419 | 316.22977 | 3 | Retainer, Stop and Spring, HT400, No. 3 Suction Valve, Mach. Cast |
| 100002972 | 316.25233 | 6 | Boot, Suction and Stop, HT-400™, No. 3, 4 and 5 Frac | |
| 100002841 | 316.2125 | 3 | Spring, Lock, Suction Stop, No. 3, HT400 | |
| 100002079 | 70.35717 | 6 | Pin, Cotter, 1/8 x 1 1/2 Inch, HT-400™ | |
| 100002868 | 316.22005 | 6 | Liner, Two Piece Bushing, Valve Guide, HT400, No.4 Frac, Brass | |
| 100002867 | 316.22004 | 6 | Insert, Two Piece Bushing, Valve Guide, Special, HT-400™, No 4 Frac | |
| 100002837 | 316.2108 | 6 | Spring, Valve, HT400, No. 3, 3.38 and 4 Inch, 36 lb/in | |
| 100002824 | 316.21007 | 6 | Valve, HT400, 3.38, 4.0 In, Frac | |
| 101333083 | 316.21048 | 6 | Insert, Valve, HT400, No. 3 Frac, Urethane, Acid/Frac Service (Yellow) | |
| 100002823 | 316.21006 | 6 | Insert, Valve, HT400, No. 3 Frac, Urethane, Standard Service (Brown) | |
| 100002825 | 316.21008 | 6 | Seat Valve, HT400, No. 3 Frac, Tapered | |
| 100000968 | 8.34037 | 6 | O-ring, 90 Duro, 4 x 3 3/4 x 1/8, 568-240 | |
| 100002838 | 316.21096 | 6 | Retainer, Guide Bushing, HT400, 3.38, 4.0 Inch, Tapered Seat Bore | |
| 4-1/2-inch (No. 4) Suction Valve Subassemblies | 100058432 | 316.23034 | 3 | Retainer, Stop and Spring, HT400, No. 4 Suction Valve, Mach. Cast |
| 100002972 | 316.25233 | 6 | Boot, Suction and Stop, HT-400™, No. 3, 4 and 5 Frac | |
| 100007270 | 316.22252 | 3 | Spring, Lock, Suction Stop, No. 4, HT400 | |
| 100002868 | 316.22005 | 6 | Liner, Two Piece Bushing, Valve Guide, HT400, No.4 Frac, Brass | |
| 100002867 | 316.22004 | 6 | Insert, Two Piece Bushing, Valve Guide, Special, HT-400™, No 4 Frac | |
| 100002936 | 316.2308 | 6 | Spring, Valve, HT400, No. 4, 4.5 Inch, 25 lb/in | |
| 100002875 | 316.22048 | 6 | Valve, HT400, 4.5 inch, Frac | |
| 101333104 | 316.22046 | 6 | Insert, Valve, HT400, No. 4 Frac, Urethane, Acid/Frac Service (Yellow) | |
| 100002876 | 316.22049 | 6 | Insert, Valve, HT400, No. 4 Frac, Urethane, Standard Service (Brown) | |
| 100002874 | 316.22047 | 6 | Seat Valve, HT400, No. 4 Frac, Tapered | |
| 100000970 | 8.34041 | 6 | O-ring, 90 Duro, 4 1/2 x 4 1/4 x 1/8, 568-244 | |
| 100002955 | 316.23953 | 6 | Retainer, Guide Bushing, HT400, No. 4, Tapered Seat Bore | |
| 5.0- and 6.0-inch (No. 5) Suction Valve Subassemblies | 100058542 | 316.2584 | 3 | Retainer, Stop and Spring, HT400, No. 5 Suction Valve, Mach. Cast |
| 100002972 | 316.25233 | 6 | Boot, Suction and Stop, HT-400™, No. 3, 4 and 5 Frac | |
| 100002882 | 316.22253 | 3 | Spring, Lock, Suction Stop, No. 5, HT400 | |
| 100002870 | 316.22007 | 6 | Liner, Two Piece Bushing, Valve Guide, HT400, No.5 Frac, Brass | |
| 100002869 | 316.22006 | 6 | Insert, Two Piece Bushing, Valve Guide, Special, HT-400™, No 5 Frac | |
| 100058597 | 316.27259 | 6 | Spring, Valve, HT400, No. 5, Conical, Stainless, 50 lb/in | |
| 100002960 | 316.24027 | 6 | Valve, HT400, No. 5, 5.0 and 6.0 inch, Frac | |
| 101349952 | 316.24026 | 6 | Insert, Valve, HT400, No. 5 Frac, Urethane, Acid/Frac Service (Yellow) | |
| 100002961 | 316.24037 | 6 | Insert, Valve, HT400, No. 5 Frac, Urethane, Standard Service (Brown) | |
| 100002957 | 316.24024 | 6 | Seat Valve, HT400, No. 5 Frac, Tapered | |
| 100000974 | 8.34045 | 6 | O-ring, 90 Duro, 5-in. x 4 3/4-in. x 1/8-in., 568-248 | |
| 100002962 | 316.24043 | 6 | Retainer, Guide Bushing, HT400, No. 5, Tapered Seat Bore | |
| 3 3/8-inch Fluid-End Plunger/Cylinder Head Cover Subassembly | 100008186 | 316.2102 | 6 | Retainer, Cover, HT-400™, 3.38 in |
| 100011711 | 316.22606 | 3 | Retainer, Protective Cylinder Head Cover, 4.0 in | |
| 100002836 | 316.2107 | 3 | Cover, Cylinder Head, HT-400™, 3.38 in | |
| 100002902 | 316.22605 | 3 | Cover, Protective Cylinder Head, 4.0 in | |
| 100002830 | 316.21052 | 6 | Whatsapp+8615972752793 luben@youlongpetro.com https://www.youlongpetro.com | |
| 100002829 | 316.21051 | 6 | Ring, Spacer, #3 Discharge Valve & Cylinder Head Cover, 3 3/8 | |
| 100002843 | 316.2131 | 3 | Nose, Plunger, HT-400™, 3 3/8 in | |
| 100002842 | 316.213 | 3 | Seal, Plunger Nose Assembly, HT-400™, 3 3/8 in | |
| 100009641 | 316.21026 | 3 | Plunger, 3 3/8 in., Hard Surface, L-Spacer, HT-400™ | |
| 316.21028 | 3 | Tie Rod, Plunger, HT-400™, 3.38, 4.0, 4.5 in | ||
| 100002831 | 316.21059 | 3 | Adapter, Pushrod, HT-400™, 3 3/8 in, Two Piece Nose | |
| 4-inch Fluid-End Plunger/Cylinder Head Cover Subassembly | 100008186 | 316.2102 | 6 | Retainer, Cover, HT-400™, 3.38 in |
| 100011711 | 316.22606 | 3 | Retainer, Protective Cylinder Head Cover, 4.0 in | |
| 100002836 | 316.2107 | 3 | Cover, Cylinder Head, HT-400™, 3.38 in | |
| 100002902 | 316.22605 | 3 | Cover, Protective Cylinder Head, 4.0 in | |
| 100002830 | 316.21052 | 6 | Gasket, 3 Discharge Valve & Cylinder Head Cover, 3 3/8 in | |
| 100002829 | 316.21051 | 6 | Ring, Spacer, #3 Discharge Valve & Cylinder Head Cover, 3 3/8 | |
| 100002885 | 316.2231 | 3 | Nose, Plunger, HT-400™, 4.0 in | |
| 100002884 | 316.223 | 3 | Seal, Plunger Nose Assembly, HT-400™, 4.0 in | |
| 100002883 | 316.22294 | 3 | Plunger, 4.0 in., Hard Surface, L-Spacer, HT-400™ | |
| 100002827 | 316.21028 | 3 | Tie Rod, Plunger, HT-400™, 3.38, 4.0, 4.5 in | |
| 100011706 | 316.22302 | 3 | Adapter, Pushrod, HT-400™, 4.0 in, Two Piece Nose | |
| 4 1/2-inch Fluid-End Plunger/Cylinder Head Cover Subassembly | 100007820 | 316.2202 | 6 | Retainer, Cover, HT-400™, 4.5 in |
| 100007823 | 316.23639 | 3 | Retainer, Protective Cylinder Head Cover, 4.5 in | |
| 100009530 | 316.2207 | 3 | Cover, Cylinder Head, HT-400™, 4.5 in, Bar Stock | |
| 100002952 | 316.23638 | 3 | Cover, Protective Cylinder Head, 4.5 in | |
| 100002878 | 316.22052 | 6 | Gasket, 4 Discharge Valve & Cylinder Head Cover, 4 1/2 | |
| 100002877 | 316.22051 | 6 | Ring, Spacer, #4 Discharge Valve & Cylinder Head Cover, 4 1/2 | |
| 100002941 | 316.2331 | 3 | Nose, Plunger, HT-400™, 4.5, 5.0, 6.0 in | |
| 100002940 | 316.233 | 3 | Seal, Plunger Nose Assembly, HT-400™, 4.5 | |
| 100002937 | 316.23085 | 3 | Plunger, 4.5 In., Hard Surface, L-Spacer, HT-400™ | |
| 100002827 | 316.21028 | 3 | Tie Rod, Plunger, HT-400™, 3.38, 4.0, 4.5 in | |
| 100011721 | 316.23089 | 3 | Adapter, Pushrod, HT-400™, 4.5 in, Two Piece Nose | |
| 5-inch Fluid-End Plunger/Cylinder Head Cover Subassembly | 100058508 | 316.2502 | 6 | Retainer, Cover, HT-400™, 5.75 in |
| 100058490 | 316.24615 | 3 | Retainer, Protective Cylinder Head Cover, 5 in | |
| 100058475 | 316.2407 | 3 | Cover, Cylinder Head, HT-400™, 5.0 in | |
| 100011728 | 316.24614 | 3 | Cover, Protective Cylinder Head, 5.0 in | |
| 100011734 | 316.25052 | 6 | Gasket, 5 Discharge Valve & Cylinder Head Cover, 5 in | |
| 100011733 | 316.25051 | 6 | Ring, Spacer, #5 Discharge Valve & Cylinder Head Cover, 5 in | |
| 100002941 | 316.2331 | 3 | Nose, Plunger, HT-400™, 4.5, 5.0, 6.0 in | |
| 100002940 | 316.233 | 3 | Seal, Plunger Nose Assembly, HT-400™, 4.5 | |
| 100011726 | 316.24296 | 3 | Plunger, 5.0 In., Hard Surface, L-Spacer, HT-400™ | |
| 100002970 | 316.25165 | 3 | Tie Rod, Plunger, HT-400™, 6.0 in | |
| 100011727 | 316.24336 | 3 | Adapter, Pushrod, HT-400™, 5.0 in, Two Piece Nose | |
| 6-inch Fluid-End Plunger/Cylinder Head Cover Subassembly | 100058510 | 316.2506 | 6 | Retainer, Cover, HT-400™, 6.0 in |
| 100058618 | 316.27614 | 3 | Retainer, Protective Cylinder Head Cover, 6 in | |
| 100008190 | 316.2507 | 3 | Cover, Cylinder Head, HT-400™, 6.0 in | |
| 100058617 | 316.27613 | 3 | Cover, Protective Cylinder Head, 6.0 in | |
| 100058512 | 316.25074 | 6 | Gasket, 6 Discharge Valve & Cylinder Head Cover, 6 in | |
| 100058511 | 316.25073 | 6 | Ring, Spacer, #6 Discharge Valve & Cylinder Head Cover, 6 in | |
| 100002941 | 316.2331 | 3 | Nose, Plunger, HT-400™, 4.5, 5.0, 6.0 in | |
| 100002940 | 316.233 | 3 | Seal, Plunger Nose Assembly, HT-400™, 4.5 | |
| 100058514 | 316.25162 | 3 | Plunger, 6.0 In., Hard Surface, L-Spacer, HT-400™ | |
| 100002970 | 316.25165 | 3 | Tie Rod, Plunger, HT-400™, 6.0 in | |
| 100058517 | 316.25172 | 3 | Adapter, Pushrod, HT-400™, 6.0 in, Two Piece Nose | |
| 3-3/8-inch Packing Nut | 100002081 | 3 | Pin, Groove, ½-in x 1 ¼-in, Type 5 | |
| 100002846 | 3 | Sleeve, Wiper Gland, 3.375 Inch | ||
| 100002845 | 3 | Nut, Packing Adjustment, 3.375 Inch | ||
| 3-3/8-inch CDI Packing | 101377627 | 3 | Seal, Packing Lube, 3.375, WS-Seal, CDI | |
| 100002011 | 3 | O-Ring, 90 Duro, 4 3/8 x 4 1/8 X 1/8 568-243 | ||
| 101377626 | 3 | Carrier, Seal, 3.375, CDI | ||
| 101377624 | 3 | Adapter, Female, 3.375, PEEK, CDI | ||
| 101377623 | 3 | Packing, 3.375, CDI, WSP1, PTFE | ||
| 101377622 | 3 | Header Ring, 3.375, HNBR, CDI | ||
| 101377620 | 3 | Spacer, 3.375, Fluid End, CDI | ||
| 3-3/8-inch Acid Service Packing (8140) | 101408135 | 3 | Seal, Packing Lube, Z20, 3-3/8 x 3-7/8 x 9/16 Zurcon UCUP, Double Lip FE | |
| 100000969 | 3 | O-Ring, 90 Duro, 4 3/8 x 4 1/8 X 1/8 568-243 | ||
| 101389194 | 3 | Carrier, Seal, 3.375, HT-400™, 2004 | ||
| 100002852 | 3 | Ring, Backup, Packing, HT-400™ 3.38 in, 2004 | ||
| 100002854 | 3 | Packing Set, 3 3/8 x 4 3/8 x 0.50 Stock HT, 3 rings, Hard, Acid Service | ||
| 100058346 | 3 | Header Ring, 3 3/8 x 4 3/8 Packing, Polyurethane, HT-400™ FE | ||
| 100002852 | 3 | Adapter, Header Ring, 3 3/8 x 4/3/8, HT-400™, FE | ||
| 4.0-inch Packing Nut | 100002081 | 3 | Pin, Groove, ½-in x 1 ¼-in, Type 5 | |
| 101328357 | 3 | Sleeve, Wiper Gland, HCLE, 4.0 Inch | ||
| 101328001 | 3 | Nut, Packing Adjustment, HCLE, 4.0 Inch | ||
| 4.0-inch CDI Packing | 101377657 | 3 | Seal, Packing Lube, 4.000, WS-Seal, CDI | |
| 100002016 | 3 | O-Ring, 90 Duro, 5 x 4 3/4 X 1/8 568-248 | ||
| 101377656 | 3 | Carrier, Seal, 4.000, CDI | ||
| 101377652 | 3 | Adapter, Female, 4.000, PEEK, CDI | ||
| 101377641 | 3 | Packing, 4.000, CDI, WSP1, PTFE | ||
| 101377640 | 3 | Header Ring, 4.000, HNBR, CDI | ||
| 101377638 | 3 | Spacer, 4.000, Fluid End, CDI | ||
| 4.0-inch Acid Service Packing (8140) | 100058388 | 3 | Seal, Packing Lube, Z20, 4 x 4 1/2 x 9/16 Zurcon UCUP, Double Lip FE | |
| 100000974 | 3 | O-Ring, 90 Duro, 5 x 4 3/4 X 1/8 568-248 | ||
| 101389213 | 3 | Carrier, Seal, 4.0, HT-400™, 2004 | ||
| 101389224 | 3 | Ring, Backup, Packing, HT-400™ 4.0 in, 2004 | ||
| 100002899 | 3 | Packing Set, 4 x 5 x 0.50 Stock HT, 3 rings, Hard, Acid Service | ||
| 100002897 | 3 | Header Ring, 4 x 5 Packing, Polyurethane, HT-400™ FE | ||
| 100002896 | 3 | Adapter, Header Ring, 4 x 5, HT-400™, FE | ||
| 4.5-inch Packing Nut | 100002081 | 3 | Pin, Groove, ½-in x 1 ¼-in, Type 5 | |
| 101328357 | 3 | Sleeve, Wiper Gland, HCLE, 4.0 Inch | ||
| 101330209 | 3 | Nut, Packing Adjustment, HCLE, 4.5 Inch | ||
| 4.5-inch CDI Packing | 101377665 | 3 | Seal, Packing Lube, 4.50, WS-Seal, CDI | |
| 100002019 | 3 | O-Ring, 90 Duro, 5 1/2 x 5 1/4 x 1/8 568-252 | ||
| 101377664 | 3 | Carrier, Seal, 4.50, CDI | ||
| 101377663 | 3 | Adapter, Female, 4.500, PEEK, CDI | ||
| 101377661 | 3 | Packing, 4.50, CDI WSP1, PTFE | ||
| 101377660 | 3 | Header Ring, 4.50, HNBR, CDI | ||
| 101377659 | 3 | Spacer, 4.50 in., Fluid End, CDI | ||
| 4.5-inch Acid Service Packing (8140) | 101252286 | 3 | Seal, Packing Lube, Z20, 4 1/2 x 5 x 9/16 Zurcon UCUP, Double Lip FE | |
| 100000977 | 3 | O-Ring, 90 Duro, 5 1/2 x 5 1/4 X 1/8 568-252 | ||
| 101389214 | 3 | Carrier, Seal, 4.5, HT-400™, 2004 | ||
| 101389225 | 3 | Ring, Backup, Packing, HT-400™ 4.5 in, 2004 | ||
| 100002951 | 3 | Packing Set, 4 1/2x 5 1/2 x 0.50 Stock HT, 3 rings, Hard, Acid Service | ||
| 100002949 | 3 | Header Ring, 4 1/2 x 5 1/2 Packing, Polyurethane, HT-400™ FE | ||
| 100002948 | 3 | Adapter, Header Ring, 4 1/2 x 5 1/2, HT-400™, FE | ||
| 5.0-inch Packing Nut | 100027239 | 3 | Pin, Groove, 3/8-in x 1 ¼-in, Type 5 | |
| 101438001 | 3 | Sleeve, Wiper Gland, HCLE, 5.0 Inch | ||
| 101438000 | 3 | Nut, Packing Adjustment, HCLE, 5.0 Inch | ||
| 5.0-inch CDI Packing | 101377674 | 3 | Seal, Packing Lube, 5.0, WS-Seal, CDI | |
| 101377672 | 3 | O-Ring, 90 Duro, 6 x 5 3/4 x 1/8, 568-256 | ||
| 100002022 | 3 | Carrier, Seal, 5.0, CDI | ||
| 101377671 | 3 | Adapter, Female, 5.00, PEEK, CDI | ||
| 101377669 | 3 | Packing, 5.0, CDI WSP1, PTFE | ||
| 101377668 | 3 | Header Ring, 5.0, HNBR, CDI | ||
| 101377667 | 3 | Spacer, 5.0 in., Fluid End, CDI | ||
| 5.0-inch Acid Service Packing (8140) | 101408161 | 3 | Seal, Packing Lube, Z20, 5 x 5 1/2 x 9/16 Zurcon UCUP, Double Lip FE | |
| 100000980 | 3 | O-Ring, 90 Duro, 6 x 5 3/4 X 1/8 568-256 | ||
| 101389216 | 3 | Carrier, Seal, 5.0, HT-400™, 2004 | ||
| 101389226 | 3 | Ring, Backup, Packing, HT-400™ 5.0 in, 2004 | ||
| 100002967 | 3 | Packing Set, 5 x 6 x 0.50 Stock HT, 3 rings, Hard, Acid Service | ||
| 100058486 | 3 | Header Ring, 5 x 6 Packing, Polyurethane, HT-400™ FE | ||
| 100002966 | 3 | Adapter, Header Ring, 5 x 6, HT-400™, FE | ||
| 6.0-inch Packing Nut | 100027239 | 3 | Pin, Groove, 3/8-in x 1 ¼-in, Type 5 | |
| 101330379 | 3 | Sleeve, Wiper Gland, HCLE, 6.0 Inch | ||
| 101330259 | 3 | Nut, Packing Adjustment, HCLE, 6.0 Inch | ||
| 6.0-inch CDI Packing | 101377686 | 3 | Seal, Packing Lube, 6.0, WS-Seal, CDI | |
| 100007763 | 3 | O-Ring, 90 Duro, 7 x 6 3/4 x 1/8, 568-261 | ||
| 101377685 | 3 | Carrier, Seal, 6.0, CDI | ||
| 101377684 | 3 | Adapter, Female, 6.00, PEEK, CDI | ||
| 101377683 | 3 | Packing, 6.0, CDI WSP1, PTFE | ||
| 101377682 | 3 | Header Ring, 6.0, HNBR, CDI | ||
| 101377679 | 3 | Spacer, 6.0 in., Fluid End, CDI | ||
| 6.0-inch Acid Service Packing (8140) | 101408181 | 3 | Seal, Packing Lube, Z20, 6 x 6 1/2 x 9/16 Zurcon UCUP, Double Lip FE | |
| 100013726 | 3 | O-Ring, 90 Duro, 7 x 6 3/4 X 1/8 568-261 | ||
| 101389217 | 3 | Carrier, Seal, 6.0, HT-400™, 2004 | ||
| 101389227 | 3 | Ring, Backup, Packing, HT-400™ 6.0 in, 2004 | ||
| 100002997 | 3 | Packing Set, 6 x 7 x 0.50 Stock HT, 3 rings, Hard, Acid Service | ||
| 100058613 | 3 | Header Ring, 6 x 7 Packing, Polyurethane, HT-400™ FE | ||
| 100002996 | 3 | Adapter, Header Ring, 6 x 7, HT-400™, FE | ||
| 3 3/8-inch Fluid-End Straight Discharge Flange | 100058317 | 316.21013 | 1 | Flange, Discharge, HT-400™ Pump, 3-3/8 Inch, 20,000 PSI, Straight |
| 100002801 | 315.27117 | 1 | Seal, Discharge Passage, 2.5 OD | |
| 100002811 | 316.11621 | 2 | Nut, 1-14 NF, Internal Wrenching, 1.03 TL | |
| 100002798 | 315.11183 | 2 | Washer, Flat, Worm Housing, Head, 1 In | |
| 100002926 | 316.23013 | 2 | Stud, HT-400™, Fluid End To Thick Discharge Flange | |
| 4.0-inch Fluid-End Straight Discharge Flange | 100002992 | 316.27482 | 1 | Flange, Discharge, HT-400™ Pump, 4.0 – 6.0 Inch, Straight |
| 100002975 | 316.2547 | 1 | Seal, Discharge Passage, HT-400™, 3.375 O.D. | |
| 100002811 | 316.11621 | 2 | Nut, 1-14 NF, Internal Wrenching, 1.03 TL | |
| 100002798 | 315.11183 | 2 | Washer, Flat, Worm Housing, Head, 1 In | |
| 4 1/2-, 5.0-, and 6.0-inch Fluid-End Straight Discharge Flange | 100002992 | 316.27482 | 1 | Flange, Discharge, HT-400™ Pump, 4.0 – 6.0 Inch, Straight |
| 100002975 | 316.2547 | 1 | Seal, Discharge Passage, HT-400™, 3.375 O.D. | |
| 100002811 | 316.11621 | 2 | Nut, 1-14 NF, Internal Wrenching, 1.03 TL | |
| 100002926 | 316.23013 | 2 | Stud, HT-400™, Fluid End To Thick Discharge Flange | |
| 3 3/8-inch Fluid-End Curved Discharge Flange | 100009881 | 316.21676 | 1 | Flange, Discharge, HT-400™, 3-3/8 Inch, 20,000 PSI, Curved, RH |
| 100009882 | 316.21677 | 1 | Flange, Discharge, HT-400™, 3-3/8 Inch, 20,000 PSI, Curved, LH | |
| 100002801 | 315.27117 | 1 | Seal, Discharge Passage, 2.5 OD | |
| 100002811 | 316.11621 | 2 | Nut, 1-14 NF, Internal Wrenching, 1.03 TL | |
| 100002798 | 315.11183 | 2 | Washer, Flat, Worm Housing, Head, 1 In | |
| 100002926 | 316.23013 | 2 | Stud, HT-400™, Fluid End To Thick Discharge Flange | |
| 4.0-inch Fluid-End Curved Discharge Flange | 100002930 | 316.23019 | 1 | Flange, Discharge, HT-400™, 4.0 – 6.0 Inch, Curved Right-Hand |
| 100002929 | 316.23017 | 1 | Flange, Discharge, HT-400™, 4.0 – 6.0 Inch, Curved Left-Hand | |
| 100002975 | 316.2547 | 1 | Seal, Discharge Passage, HT-400™, 3.375 O.D. | |
| 100002811 | 316.11621 | 2 | Nut, 1-14 NF, Internal Wrenching, 1.03 TL | |
| 100002798 | 315.11183 | 2 | Washer, Flat, Worm Housing, Head, 1 In | |
| 4 1/2-, 5.0-, and 6.0-inch Fluid-End Curved Discharge Flange | 100002930 | 316.23019 | 1 | Flange, Discharge, HT-400™, 4.0 – 6.0 Inch, Curved Right-Hand |
| 100002929 | 316.23017 | 1 | Flange, Discharge, HT-400™, 4.0 – 6.0 Inch, Curved Left-Hand | |
| 100002975 | 316.2547 | 1 | Seal, Discharge Passage, HT-400™, 3.375 O.D. | |
| 100002811 | 316.11621 | 2 | Nut, 1-14 NF, Internal Wrenching, 1.03 TL | |
| 100002926 | 316.23013 | 2 | Stud, HT-400™, Fluid End To Thick Discharge Flange | |
| 3 3/8-inch Fluid-End Blank Discharge Flange (Thin) | 100002858 | 316.21673 | 1 | Flange, Discharge, HT-400™, 3.38 In., Blank, Thin |
| 100002801 | 315.27117 | 1 | Seal, Discharge Passage, 2.5 OD | |
| 100002811 | 316.11621 | 2 | Nut, 1-14 NF, Internal Wrenching, 1.03 Total Length | |
| 100002798 | 315.11183 | 2 | Washer, Flat, Worm Housing, Head, 1 In. | |
| 100009362 | 316.23012 | 2 | Stud, HT-400™, Fluid End To Thin Discharge Flange | |
| 3 3/8-inch Fluid-End Blank Discharge Flange (Thick) | 101325320 | 1 | Flange, Discharge, HT-400™, 3.38 In., Blank, Thick | |
| 100002801 | 315.27117 | 1 | Seal, Discharge Passage, 2.5 OD | |
| 100002811 | 316.11621 | 2 | Nut, 1-14 NF, Internal Wrenching, 1.03 TL | |
| 100002798 | 315.11183 | 2 | Washer, Flat, Worm Housing, Head, 1 In. | |
| 100002926 | 316.23013 | 2 | Stud, HT-400™, Fluid End To Thick Discharge Flange | |
| 4.0-inch Fluid-End Blank Discharge Flange | 100007821 | 316.2298 | 1 | Flange, Discharge, HT-400™, 4.0, 4.5, 5.0, 6.0 Inch , Blank, Thick |
| 100002975 | 316.2547 | 1 | Seal, Discharge Passage, HT-400™, 3.375 O.D. | |
| 100002811 | 316.11621 | 2 | Nut, 1-14 NF, Internal Wrenching, 1.03 TL | |
| 100002798 | 315.11183 | 2 | Washer, Flat, Worm Housing, Head, 1 In. | |
| 4 1/2-, 5.0-, and 6.0-inch Fluid-End Blank Discharge Flange | 100007821 | 316.2298 | 1 | Flange, Discharge, HT-400™, 4.0, 4.5, 5.0, 6.0 Inch ,Blank, Thick |
| 100002975 | 316.2547 | 1 | Seal, Discharge Passage, HT-400™, 3.375 O.D. | |
| 100002811 | 316.11621 | 2 | Nut, 1-14 NF, Internal Wrenching, 1.03 TL | |
| 100002926 | 316.23013 | 2 | Stud, HT-400™, Fluid End To Thick Discharge Flange | |
| 3 3/8-inch Fluid End | 100002850 | 316.2145 | 2 | Spacer, Inner, Discharge Passage Seal, HT-400™, 3.375 in FE |
| 100002801 | 315.27117 | 6 | Seal, Discharge Passage, HT-400™, 2.5 in. O.D. | |
| 100002993 | 316.27488 | 1 | Bolt, Tie, 1.375-12 UNF x 32.4 in., Top, Fluid End, HT-400™, TC | |
| 100002976 | 316.25501 | 2 | Nut, Top Tie Bolt, HT-400™, TC | |
| 100002894 | 316.22493 | 2 | Washer, Hardened, 2.31 O.D. x 1.43 I.D., For Top Tie Bolt | |
| 100002811 | 316.11621 | 4 | Nut, 1-14 NF, Internal Wrenching, 1.03 TL | |
| 100002798 | 315.11183 | 4 | Washer, Flat, Worm Housing, Head, 1 In. | |
| 100007819 | 316.21981 | 3 | Sleeve, Packing, HT4 | |
| 100007621 | 8.34038 | 3 | O-Ring, 90 Duro, 4 1/8 X 3 7/8 X 1/8, 568-241 | |
| 100002866 | 316.21951 | 3 | Fluid End Section, HT-400™ Pump, 3.38 Inch, Not Sleeved | |
| 101455172 | 3 | Fluid End Section, HT-400™ Pump, 3.38 Inch, With Packing Sleeve | ||
| 100058621 | 316.27927 | 1 | Tag, Part Number, Fluid End, HT-400™ | |
| 100001860 | 70.3276 | 2 | Nut, Elastic, Stop, 3/4-in., 16NF | |
| 100002925 | 316.23011 | 1 | Bolt, Bottom, Tie, HT400, Type Certified | |
| 4.0-inch Fluid End | 100002974 | 316.2545 | 2 | Spacer, Inner, Discharge Passage Seal, HT-400™, 5.75 in. |
| 100002975 | 316.2547 | 6 | Seal, Discharge Passage, HT-400™, 3.375 in. O.D. | |
| 100002993 | 316.27488 | 1 | Bolt, Tie, 1.375-12 UNF x 32.4 in., Top, Fluid End, HT-400™, TC | |
| 100002994 | 316.27489 | 2 | Bolt, Tie, Fluid End, HT-400™, 1 in. Dia, Three Top Tie Bolt FE, TC | |
| 100002976 | 316.25501 | 2 | Nut, Top Tie Bolt, HT-400™, TC | |
| 100002894 | 316.22493 | 2 | Washer, Hardened, 2.31 O.D. x 1.43 I.D., For Top Tie Bolt | |
| 100002811 | 316.11621 | 4 | Nut, 1-14 NF, Internal Wrenching, 1.03 TL | |
| 100002798 | 315.11183 | 4 | Washer, Flat, Worm Housing, Head, 1 In. | |
| 100002914 | 316.22981 | 3 | Sleeve, Packing, HT400, 4.0 In. Whatsapp+8615972752793 luben@youlongpetro.com https://www.youlongpetro.com | |
| 100000972 | 8.34043 | 3 | O-Ring, 90 Duro, 4 3/4 X 4 1/2 X 1/8, 568-246 | |
| 100002915 | 316.22982 | 3 | Fluid End Section, HT-400™ Pump, 4.00 Inch, Not Sleeved | |
| 101455173 | 3 | Fluid End Section, HT-400™ Pump, 4.00 Inch, With Packing Sleeve | ||
| 100058621 | 316.27927 | 1 | Tag, Part Number, Fluid End, HT-400™ | |
| 4 1/2-inch Fluid End | 100002974 | 316.2545 | 2 | Spacer, Inner, Discharge Passage Seal, HT-400™, 5.75 in. |
| 100002975 | 316.2547 | 6 | Seal, Discharge Passage, HT-400™, 3.375 in. O.D. | |
| 100002993 | 316.27488 | 1 | Bolt, Tie, 1.375-12 UNF x 32.4 in., Top, Fluid End, HT-400™, TC | |
| 100002976 | 316.25501 | 2 | Nut, Top Tie Bolt, HT-400™, TC | |
| 100002894 | 316.22493 | 2 | Washer, Hardened, 2.31 O.D. x 1.43 I.D., For Top Tie Bolt | |
| 100002811 | 316.11621 | 4 | Nut, 1-14 NF, Internal Wrenching, 1.03 TL | |
| 100002956 | 316.23981 | 3 | Sleeve, Packing, HT400, 4.5 In. | |
| 100000975 | 8.34047 | 3 | O-Ring, 90 Duro, 5 1/4 X 5 X 1/8, 568-250 | |
| 100002954 | 316.23951 | 3 | Fluid End Section, HT-400™ Pump, 4.5 Inch, Not Sleeved | |
| 101455174 | 3 | Fluid End Section, HT-400™ Pump, 4.5 Inch, With Packing Sleeve | ||
| 100058621 | 316.27927 | 1 | Tag, Part Number, Fluid End, HT-400™ | |
| 100001860 | 70.3276 | 2 | Nut, Elastic, Stop, 3/4-in., 16NF | |
| 100002925 | 316.23011 | 1 | Bolt, Bottom, Tie, HT400, Type Certified | |
| 5.0-inch Fluid End | 100002974 | 316.2545 | 2 | Spacer, Inner, Discharge Passage Seal, HT-400™, 5.75 in. |
| 100002975 | 316.2547 | 6 | Seal, Discharge Passage, HT-400™, 3.375 in. O.D. | |
| 100002993 | 316.27488 | 1 | Bolt, Tie, 1.375-12 UNF x 32.4 in., Top, Fluid End, HT-400™, TC | |
| 100002976 | 316.25501 | 2 | Nut, Top Tie Bolt, HT-400™, TC | |
| 100002894 | 316.22493 | 2 | Washer, Hardened, 2.31 O.D. x 1.43 I.D., For Top Tie Bolt | |
| 100002811 | 316.11621 | 4 | Nut, 1-14 NF, Internal Wrenching, 1.03 TL | |
| 100002969 | 316.24981 | 3 | Sleeve, Packing, HT400, 5.0 In. Whatsapp+8615972752793 luben@youlongpetro.com https://www.youlongpetro.com | |
| 100000979 | 8.34051 | 3 | O-Ring, 90 Duro, 5 3/4 X 5 1/2 X 1/8, 568-254 | |
| 100058502 | 316.24951 | 3 | Fluid End Section, HT-400™ Pump, 5.0 Inch, Not Sleeved | |
| 101455175 | 3 | Fluid End Section, HT-400™ Pump, 5.0 Inch, With Packing Sleeve | ||
| 100058621 | 316.27927 | 1 | Tag, Part Number, Fluid End, HT-400™ | |
| 100001860 | 70.3276 | 2 | Nut, Elastic, Stop, 3/4-in., 16NF | |
| 100002925 | 316.23011 | 1 | Bolt, Bottom, Tie, HT400, Type Certified | |
| 6.0-inch Fluid End | 100002974 | 316.2545 | 2 | Spacer, Inner, Discharge Passage Seal, HT-400™, 5.75 in. |
| 100002975 | 316.2547 | 6 | Seal, Discharge Passage, HT-400™, 3.375 in. O.D. | |
| 100002993 | 316.27488 | 1 | Bolt, Tie, 1.375-12 UNF x 32.4 in., Top, Fluid End, HT-400™, TC | |
| 100002976 | 316.25501 | 2 | Nut, Top Tie Bolt, HT-400™, TC | |
| 100002894 | 316.22493 | 2 | Washer, Hardened, 2.31 O.D. x 1.43 I.D., For Top Tie Bolt | |
| 100002811 | 316.11621 | 4 | Nut, 1-14 NF, Internal Wrenching, 1.03 TL | |
| 100002998 | 316.27981 | 3 | Sleeve, Packing, HT400, 6.0 In. | |
| 100000983 | 8.34057 | 3 | O-Ring, 90 Duro, 6 3/4 X 6 1/2 X 1/8, 568-260 | |
| 100058622 | 316.27951 | 3 | Fluid End Section, HT-400™ Pump, 6.0 Inch, Not Sleeved | |
| 101455176 | 3 | Fluid End Section, HT-400™ Pump, 6.0 Inch, With Packing Sleeve | ||
| 100058621 | 316.27927 | 1 | Tag, Part Number, Fluid End, HT-400™ | |
| 100001860 | 70.3276 | 2 | Nut, Elastic, Stop, 3/4-in., 16NF | |
| 100002925 | 316.23011 | 1 | Bolt, Bottom, Tie, HT400, Type Certified | |
| Plunger Lube Pump Subassembly | 100029874 | 70.58806 | 8 | Washer, Flat, 3/8-in. WI, Pl |
| 13431 | 70.43839 | 8 | Screw, Hex Socket, 3/8-in. 16NC x 1 1/4-in., Unbrako/Loc-Wel | |
| 100003003 | 317.5401 | 1 | Pump, Gear, Recirculating Plunger Lubrication, HT-400™ Pump | |
| 100058711 | 317.5102 | 1 | Adapter, Pump To Thrust Plate, Plunger Lube, HQ | |
| 100011749 | 317.51065 | 1 | Adapter, HQ, Lube Pump, Plunger Lube | |
| 100028805 | 70.44781 | 1 | 1/4-in. x 1/4-in. 20NC Set Screw Whatsapp+8615972752793 luben@youlongpetro.com https://www.youlongpetro.com | |
| 100011751 | 317.51067 | 1 | Seal, Lip, 1.000 Id X 2.000 Od X 0.250 Width | |
| 100011750 | 317.51066 | 1 | Bearing, Ball, Radial, 1.0 Id X 2.0 Od X 0.375 Thick, Open | |
| 100011748 | 317.51064 | 1 | Adapter, HQ, Worm Shaft, Plunger Lube | |
| Recirculating Plunger Lube Pump Plumbing | 100025600 | 1 | Adapter, Hose, Straight, 1 1/16-12 JIC Male x 1/2-14 MPT, Stl | |
| 100035164 | 1 | Adapter, Hose, Cross, 1/2-14 MPT x 1/2 -14 FPT x 12 -14 FPT, Aeroquip | ||
| 100016860 | 2 | Nipple, Standard, 1/2 X AT, Blackwall, A120 | ||
| 101139835 | 1 | Pipe Plug – 1/2 NPT, Sq Head, Steel | ||
| 100033152 | 1 | Adapter, Hose, Cross, Tee, 1/2-14 FPT | ||
| 100001210 | 1 | Bushing, Hexagon, 1/2 x 1/4, Steel | ||
| 100025044 | 1 | Gauge, Pressure, 0-60 psi, 2 1/2 in., 1/4 NPT | ||
| 100025646 | 1 | Adapter, Hose, Elbow, 9/16-18 JIC Male x 1/2-14 MPT, Steel | ||
| 100033606 | 2 | Fitting, Hose, Straight, 3/8 NOM Hose x 9/16 JIC Swivel Female, Brass | ||
| 100016518 | 1 | Bushing, Hexagon, 3/4 x 1/2, Steel | ||
| 100015300 | 1 | Valve, Relief, Brown and Sharp, 3/4, Preset at 45# | ||
| 100031214 | 1 | Adapter, Hose, Straight, 1 1/16-12 JIC Female x 9/16-18 JIC Male | ||
| 100031598 | 1 | Adptr, Hose, Tee, 1 1/16-12 JIC M x 3/4-14 MPT x 1 1/16-12 JIC M, Stl | ||
| 100035892 | 2 | Fitting, Hose, Straight, 1 1/16-12 JIC Swivel Female x 3/4 NOM Hose, Brs | ||
| Recirculating Plunger Lube Fluid-End Manifold Plumbing | 100025596 | 1 | Adapter, Hose, Straight, 9/16-18 JIC Male x 1/4-18 NPT Male, Steel | |
| 100000596 | 1 | Valve, Ball, 1/4, 600 PSI, FPT, Bronze Body, 316 Ball & Stem, Tefl Seats & Seals | ||
| 100033761 | 1 | Adapter, Hose, 90 Degree 1/4-18 MPT x 1/4-18 MPT, Aero | ||
| 101376366 | 2 | Assembly, Manifold, Plunger, Lubrication, FE, Triplex, WSP | ||
| 100032911 | 2 | Tag, Identification, Hydraulic Tubing, Stnls Stl, 0.31 Wide x 14.3 | ||
| 100025591 | 6 | Adapter, Hose, Straight, 7/16-20 JIC Male x 1/8-27 MPT, Steel | ||
| 101374860 | 3 | Line, Upper, Oil, Plunger Lubricator, WSP | ||
| 100002681 | 1 | Valve, Safety, 1/4, Brass, 150 psi Pressure Relief Setting | ||
| 100027497 | 1 | Plug, Pipe, 1/4 18 NPTF, Steel Countersunk Hex, Headless | ||
| 101374914 | 3 | Line, Lower, Oil, Plunger Lubricator, WSP | ||
| 100000592 | 3 | Valve, Check, 1/8, Female Inlet, Male Outlet, With 70 Duro O-Ring | ||
| 100025604 | 6 | Adapter, Hose, Elbow, 7/16-20 JIC Male x 1/8-27 MPT, Steel | ||
| 100028293 | 2 | Screw, Hex Socket, 3/4-10 NC x 1 1/4 | ||
| 100029925 | 2 | Washer, Lock, 3/4, Steel, PL Whatsapp+8615972752793 luben@youlongpetro.com https://www.youlongpetro.com | ||
| 101391751 | 2 | Bracket, Plunger Lubrication Manifold, WSP | ||
| 100015025 | 1 | Adapter, Hose, Elbow, 9/16-18 JIC Male x 1/4-18 MPT | ||
HT 400 Pump:Complete FAQ Guide about HT400 Pump
HT400 pump is a high-efficiency horizontal triplex pump. The letters HT stand for Horizontal Triplex, while 400 refers to its standard 400 horsepower rating. It is designed and manufactured based on the original 1957 Halliburton HT400 triplex pump design. After continuous optimization and adaptation, the structure has been upgraded for better field applicability. Through decades of rigorous technical improvements, some upgraded models reach up to 800 horsepower. Proven for long-term reliable performance, the HT400 pump is widely used in cementing, acidizing, water injection, cement servicing and fracturing operations.
YOU LONG PETRO HT400 pump spare parts are 100% interchangeable with Halliburton HT400 and Grizzly horizontal triplex pumps. Made of full forged steel with three fluid end sections, all components are built for long service life and high efficiency. Dimensionally identical to HT400 pumps from Halliburton, SJS and Serva, this pump is engineered for tough oilfield jobs including cementing, acidizing, fracturing and packing. It features a robust, compact design for easy transportation even to remote working sites.
These FAQs shall be able to answer all the queries related to the YOU LONG PETRO HT-400 pump.
- What are the Features of HT400 Pump?
- What sizes of Plunger units are manufactured for HT400 Pump by YOU LONG PETRO?
- What are the applications of HT400 Pump?
- What are the benefits of using HT400 Pump?
- What’s the maximum pressure of HT400 Pump?
- What Power End & Fluid End components does HT400 Pump have?
- How to test HT400 Pump?
- How to Remove the Valve Seat of HT400 Pump?
- How to maintenance HT400 Pump?
Q: What are the Features of HT400 triplex pump?
A:The YOU LONG PETRO HT 400 triplex pump excels in applications requiring precise pumping volume and reliable flow controllability. All components and spare parts of the HT 400 pump are fully interchangeable and easy to replace. It supports compatibility with a wide range of fluid end assemblies, which can be matched freely according to different operational requirements and working conditions.
Q:What sizes of Plunger are manufactured for HT400 Pump by YOU LONG PETRO?
A:The following sizes are manufactured for the HT400 pump by YOU LONG PETRO. These standard sizes serve dedicated field applications such as simulation and drilling, including 6 in, 5 in, 4.5 in, 4 in and 3 3/8 in.
Q:What are the Applications of HT400 Pump?
A:The applications of HT400 pump include: Cementing / Acidizing / Fracturing / Hydrotesting
Q:What are the Benefits of using HT400 Pump?
A:Using a YOU LONG PETRO HT400 well service pump, you will have benefits that include:
Fuel efficiency by employing an efficient diesel-driven technology.
High fuel carrying capacity of up to 130 gallons.
Able to pump at extreme pressures of up to 20,000 psi or more.
Consignment is relatively easy and can be shifted pretty easily and quickly due to the high portability.
The durable and long-lasting module which will last for a longer stretch of time.
Triple fluid end attachments.
Q:What’s the Maximum Pressure of HT400 Pump?
A:The YOU LONG PETRO HT400 triplex pump delivers a maximum working pressure of up to 20,000 psi (138 MPa). This rating depends on the plunger size installed:
3 3/8″ plunger: 20,000 psi
4″ plunger: 14,000 psi
4.5″ plunger: 11,200 psi
5″ plunger: 9,000 psi
6″ plunger: 6,250 psi
It is commonly used for high-pressure applications like cementing, acidizing, and fracturing.
Q:What Power End & Fluid End Components does YOU LONG PETRO offer for HT400 refurbishment?
A:Pump Power-End Parts:
Gear assembly
Ring gear assembly
Crosshead and connecting rod sub-assembly
Crosshead slide sub-assembly
Main bearings for outboard and inboard
Crankshaft
Connecting Rods
Pump Fluid-End Parts:
Valve Subassembly
Plunger/Cylinder Head Cover Subassembly
Packing Nut Subassembly
Fluid-End Straight Discharge Flange
Plunger Lube Pump Subassembly
Push Rod Subassembly Whatsapp+8615972752793 luben@youlongpetro.com https://www.youlongpetro.com
Contact YOU LONG PETRO to support your HT400 power end and fluid end repair work.
Q:How to Test HT400 Pump?
A:Every YOU LONG PETRO HT400 pump goes through rigorous factory testing to guarantee optimal performance and reliability before delivery.
To prevent on-site failures, the fluid end chambers are first pressure-tested far beyond standard working limits. A second round of high-pressure testing is conducted after fluid end assembly. Once matched with the power end, the pump undergoes a third comprehensive test. All power end components are also strictly inspected in our professional testing facility.Whatsapp+8615972752793 luben@youlongpetro.com https://www.youlongpetro.com
The unit runs for one hour under gradually increased pressure and speed, then is fully assembled. After completing all bench tests, the pump passes a final round of inspection before shipment.
Contact YOU LONG PETRO if you ever need any consumables on HT400 pump parts list.
Q:How to Remove the Valve Seat of HT400 Pump?
A:YOU LONG PETRO provides a dedicated valve seat puller specially designed for HT400 valve seat replacement.
This puller is assembled with clapper, lead screw, hydraulic actuator, hand pump and nut. It features simple operation and easy maintenance.Whatsapp+8615972752793 luben@youlongpetro.com https://www.youlongpetro.com
Simply insert the clapper into the valve seat, install the lead screw, fit the hydraulic actuator over the lead screw and position it on the cylinder, fasten the nut, then operate the hand pump. The valve seat can be removed effortlessly.
Q:How to maintenance HT400 Pump?
A:Routine maintenance of the YOU LONG PETRO HT400 triplex pump ensures stable performance, longer service life and fewer on-site failures.
Daily InspectionCheck the power end oil level and plunger lubrication pressure regularly. Inspect the fluid end for leaks on packings, O-rings, valves and discharge flanges. Monitor running noise, vibration and temperature during operation.
Regular Component CheckInspect valve seats, valve inserts, plungers and sealing parts frequently. Replace worn O-rings, packings and damaged components in time to prevent pressure loss and leakage.
Scheduled Lubrication & Oil ChangeReplace power end gear oil and filters periodically. Keep the plunger lubrication system clean and unblocked to ensure normal lubrication flow. Whatsapp+8615972752793 luben@youlongpetro.com https://www.youlongpetro.com
Periodic OverhaulPerform full fluid end overhaul regularly; replace all wearing parts including valves, seats, packings and gaskets. Check bearings, gears and connecting rods inside the power end, and retighten all bolts to standard torque.
Shutdown & StorageDrain residual liquid completely after operation to avoid freezing and corrosion. For long-term storage, clean all parts, apply rust-proof treatment and store in a dry environment.
