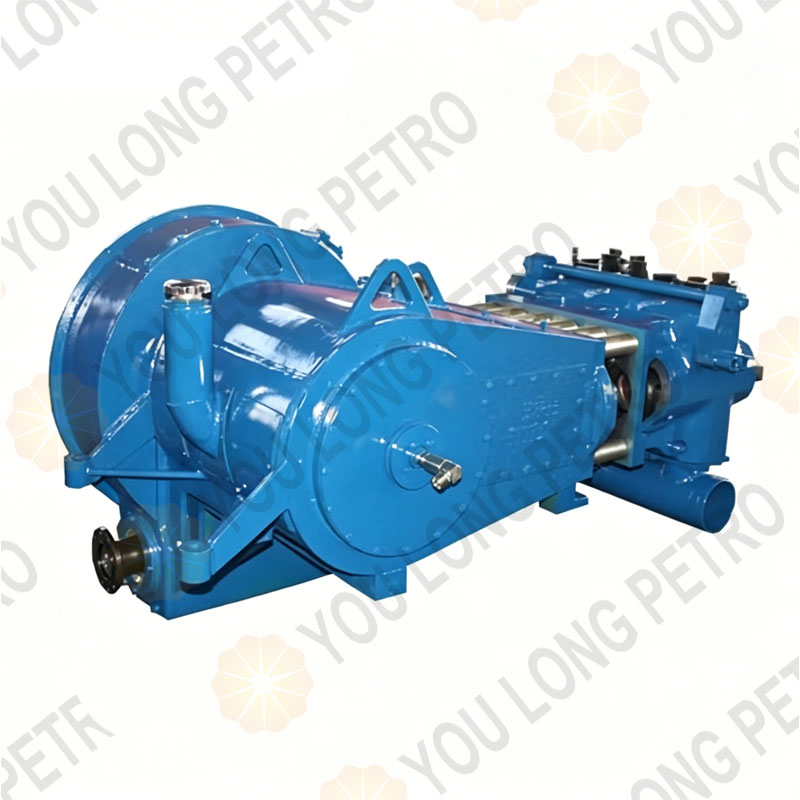

Halliburton HT400 Pump and Parts
描述
Features:
* Consist of a power end assembly, fluid end assembly and diaphragm connection
* The power end adopts worm gear drive with high reduction ratio, stable transmission, long service life
* The input shaft of power end is in one direction with the plunger, easy to install and drive the pump. The lubrication oil pump of power end is integrated at the other end of the worm shaft, no need of external lubrication
* Pump casing is the lubricating oil tank of power end
* Fluid end adopts the separate structure, each plunger has a separate piece of pump head body for replacement, low maintenance cost
* There are two different fluid end for (3 3/ 8″/ 4″/ 4 1/2″) sizes of plunger for choose to achieve different pressure and flow
* The Spare parts is interchangeable with HT400 maintenance parts.

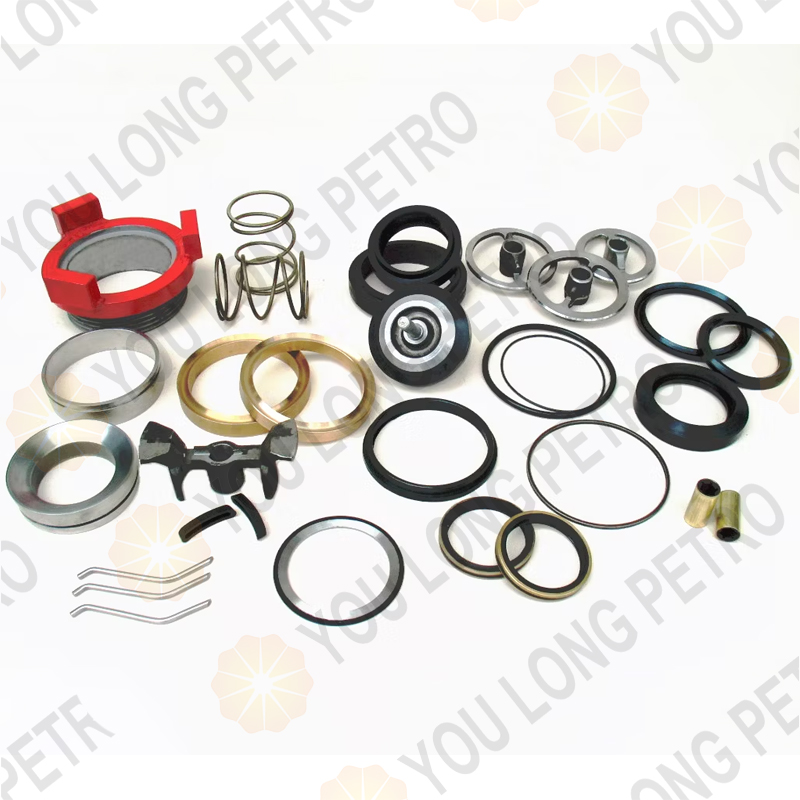

We supply a full range of spare parts for HT400 power ends & fluid ends. Please Feel free to contact YOU LONG PETRO for all your requirements.
HT-400 Pump Power-End Parts
| Worm Gear Drive-End Assembly | |||
| SAP PN | Legacy No. | Qty | Description |
| 100007816 | 316.11631 | 2 | Gasket, Worm Housing Input End |
| 100058137 | 316.11619 | 1 | Retainer, Bearing, Worm-Drive End |
| 100058140 | 316.11625 | 1 | Bearing, Drive End-Worm Shaft |
| 100058139 | 316.1162 | 1 | Inner Race for 316.11625 |
| 100029186 | 70.46241 | 1 | Seal, Oil, 53-in. x 7448, Fl, 4-in. B x 5 1/2-in. OD x 1/2-in. Wide |
| 100058134 | 316.11615 | 1 | Cover, Oil Seal Retainer |
| 100029874 | 70.58806 | 4 | Washer, Flat, 3/8-in. WI, Pl |
| 13431 | 70.43839 | 4 | Screw Hex Socket, 3/8-in.16NC x 1 1/4-in., Unbrako/Loc-Wel |
| 100054533 | 280.03021 | 1 | Flange, Companion, 1810 Series, 3.0 – 10 Spline |
| 100058133 | 316.11613 | 1 | Washer, Worm Yoke Retainer |
| 100058132 | 316.11611 | 1 | Washer, Lock, Worm Yoke Retainer |
| 100028455 | 70.43816 | 2 | Screw, Hex Cap, 3/8-in. 16UNC x 1 1/4-in., Pl |
| Cone Drive (8.4:1) Worm Gear Thrust End Assembly | |||
| SAP PN | Legacy No. | Qty | Description |
| 100058310 | 316.16416 | 1 | Plug, Orifice, 1/8-in. NPT, 0.157-in. Diameter Hole |
| 100028380 | 70.4368 | 12 | Screw, Hex Socket, 1/2-in. 13UNC x 5 1/2-in., Drilled Head |
| 100058235 | 316.132 | 1 | Plate, thrust, bearing retainer modified for plunger lube pump |
| 100015435 | 8.34062 | 2 | O-Ring, 90D, 8, 7 3/4-in. x 1/8-in. |
| 100011748 | 317.51064 | 1 | Adapter, HQ, Worm Shaft, Plunger Lube |
| 100058150 | 316.11667 | as req. | Shim, Clearance, Worm Thrust Bearing, 0.003 in. |
| 100011686 | 316.11669 | as req. | Shim, Clearance, Worm Thrust Bearing, 0.005 in. |
| 100011687 | 316.11671 | as req. | Shim, Clearance, Worm Thrust Bearing, 0.010 in. |
| 100011688 | 316.11673 | as req. | Shim, Clearance, Worm Thrust Bearing, 0.020 in. |
| 100058210 | 316.131 | 1 | Nut, Lock, HT400, worm thrust end, nut and star washer |
| 100058142 | 316.11629 | 1 | Bearing, Thrust, Stack Worm |
| 100058144 | 316.11633 | 1 | Bushing, Worm Thurst Bearing |
| 100058145 | 316.11634 | 1 | Key, Worm-Thrust Bearing |
| 100058141 | 316.11627 | 1 | Bearing, Thrust-End, Worm Shaft |
| 100058147 | 316.11645 | 1 | Retainer, Iron Worm-Thrust End Bearing |
| 100015435 | 8.34062 | 2 | O-Ring, 90D, 8, 7 3/4-in. x 1/8-in. |
| 100058249 | 316.13253 | as req. | Shim, 0.005-in., Worm Positioning |
| 100058250 | 316.13254 | as req. | Shim, 0.010-in., Worm Positioning |
| 100058251 | 316.13255 | as req. | Shim, 0.020-in., Worm Positioning |
| 100057938 | 315.31154 | 1 | Key, Worm-Thrust Bearing Spacer |
| 100058285 | 316.13522 | 1 | Worm, Gear, 8.4 to 1 Ratio, Cone Drive |
| Holroyd (8.6:1) Worm Gear Thrust-End Assembly | |||
| SAP PN | Legacy No. | Qty | Description |
| 100011699 | 316.13657 | 8 | Screw, Cap, Worm Housing, RH |
| 100012919 | 70.32821 | 4 | Nut, Elastic Stop, 1/2-13 NC, Heavy, PL |
| 100011684 | 316.11637 | 1 | Pump, Assembly, Oil, 100 GPM, Tuthill, HT-400™ PE |
| 100058267 | 316.13306 | 4 | Stud, Long Loc Insert, Tuthill Oil Pump Mounting |
| 100013727 | 8.34061 | 1 | O-Ring, 90 Duro 7 3/4 X 7 1/2 X 1/8, 568-264 |
| 100058150 | 316.11667 | as req. | Shim, Clearance, Worm Thrust Bearing, 0.003 in. |
| 100011686 | 316.11669 | as req. | Shim, Clearance, Worm Thrust Bearing, 0.005 in. |
| 100011687 | 316.11671 | as req. | Shim, Clearance, Worm Thrust Bearing, 0.010 in. |
| 100011688 | 316.11673 | as req. | Shim, Clearance, Worm Thrust Bearing, 0.020 in. |
| 100058210 | 316.131 | 1 | Nut, Lock, HT400, Worm Thrust End, Nut and Star Washer |
| 100058146 | 316.11644 | 1 | Adapter, Brown and Sharp Lubricator Pump |
| 100058142 | 316.11629 | 1 | Bearing, Thrust, Stack Worm What’s app +8615972752793 |
| 100058144 | 316.11633 | 1 | Bushing, Worm Thurst Bearing |
| 100058145 | 316.11634 | 1 | Key, Worm-Thrust Bearing |
| 100058141 | 316.11627 | 1 | Bearing, Thrust-End, Worm Shaft |
| 100058147 | 316.11645 | 1 | Retainer, Iron Worm-Thrust End Bearing |
| 100015435 | 8.34062 | 1 | O-Ring, 90D, 8, 7 3/4-in. x 1/8-in. |
| 100057938 | 315.31154 | 1 | Key, Worm-Thrust Bearing Spacer |
| 100058130 | 316.11601 | 1 | Gear, Worm, 8.6:1 Ratio, Holroyd, HT-400™ PE |
| Ring Gear Subassembly (A) | |||
| SAP PN | Legacy No. | Qty | Description |
| 100027204 | 100058121 | 1 | Pin, Cotter, 1/8-in. x 1 1/2-in., Spring Steel |
| 100026544 | 70.3297 | 1 | Nut, Hex Slot, 1-in. 14NF, Pl |
| 100058092 | 316.11407 | 4 | Screw, Cap, Spline Drive |
| 100030594 | 70.62391 | 1 | Wire, Stove Pipe, 19 Ga., 72-in. Long |
| 100058107 | 316.11521 | 1 | Spider, Crankshaft Thrust Retainer |
| 100058105 | 316.11519 | 1 | Bushing, Spider Spacer |
| 100058100 | 316.11512 | as req. | Shim, Positioning, Crankshaft Axial, 0.020-in. |
| 100058104 | 316.11518 | as req. | Shim, Positioning, Crankshaft Axial, 0.040-in. |
| 100058109 | 316.11522 | as req. | Shim, Positioning, Crankshaft Axial, 0.060-in. |
| 100058110 | 316.11523 | 1 | Coupling, Crankshaft, Spline Drive |
| 100030594 | 70.62391 | 1 | Wire, Stove Pipe, 19 Ga., 190-in. Long |
| 100058111 | 316.11524 | 24 | Screw, Cap, Ring, Mounting, Gear Clamp |
| 100058125 | 316.11548 | 24 | Washer, Left-Hand Gear Bearing Clamp |
| 100028108 | 70.42965 | 1 | Rod, Welding, L-61, 1/8-in., 95-in. Long |
| 100023759 | 70.17324 | 1 | Connector, No. 8, 128-B Reliance |
| 100058127 | 316.11551 | 1 | Flange, Gear Spline Drive |
| 100058128 | 316.11553 | 1 | Adapter, Clamp Ring, HT-400™, PE, Right-Hand Only |
| 100011699 | 316.13657 | 16 | Screw, Cap, Worm Housing, Right-Hand |
| 100030594 | 70.62391 | 1 | Wire, Stove Pipe, 19 Ga., 120-in. Long |
| 100058123 | 316.11545 | 1 | Ring, Thrust, Gear Bearing |
| 100058117 | 316.11535 | as req. | Shim, Clearance, Gear Support Bearing, 0.003-in. |
| 100058118 | 316.11537 | as req. | Shim, Clearance, Gear Support Bearing, 0.005-in. |
| 100058119 | 316.11539 | as req. | Shim, Clearance, Gear Support Bearing, 0.010-in. |
| 100058121 | 316.11541 | as req. | Shim, Clearance, Gear Support Bearing, 0.020-in. |
| Ring Gear Subassembly (B) | |||
| SAP PN | Legacy No. | Qty | Description |
| 100058122 | 316.11543 | 1 | Bearing, Gear Support |
| 100058120 | 316.1154 | 2 | Thrust Cage Assembly for 316.11543 |
| 100058284 | 316.13521 | 1 | Gear, Ring, 8.4 to 1 Ratio, Cone Drive Use only with Cone Drive worm gear (100058285). |
| 100058103 | 316.11517 | 1 | Gear, Ring, 8.6 to 1 Ratio Holroyd Use only with Holroyd worm gear (100058130) What’s app +8615972752793 |
| 100058129 | 316.11556 | 24 | Lug, Gear Bearing Clamp, Right Hand Only |
| 100028108 | 70.42965 | 1 | Rod, Welding, L-61, 1/8-in., 95-in. Long, Right Hand Only |
| 100058111 | 316.11524 | 24 | Screw, Cap, Ring Mounting, Gear Clamp, Right Hand Only |
| 100023759 | 70.17324 | 1 | Connector, No. 8, 128-B Reliance, Right Hand Only |
| 100028247 | 70.43381 | 16 | Screw, Hex Socket, 1/2-in. 13NC x 1 1/4-in. |
| 100029934 | 70.58986 | 16 | Washer, Lock, 1/2-in., Int Shakeproof, Pl |
| 100058112 | 316.11525 | 1 | Support, Bearing, Ring Gear |
| 100058113 | 316.11527 | as req. | Shim, Positioning, Gear Side, 0.003-in. |
| 100058114 | 316.11529 | as req. | Shim, Positioning, Gear Side, 0.005-in. |
| 100058115 | 316.11531 | as req. | Shim, Positioning, Gear Side, 0.010-in. |
| 100058116 | 316.11533 | as req. | Shim, Positioning, Gear Side, 0.020-in. |
| 100058092 | 316.11407 | 2 | Screw, Cap, Spline Drive |
| 100030594 | 70.62391 | 1 | Wire, Stove Pipe, 19 Ga., 24-in. Long |
| 100081184 | 70.58959 | 4 | Washer, Lock, 1/2-in., Stl-Pl |
| 100058101 | 316.11514 | 1 | Stud, Flanged, Crankshaft Thrust |
| 100028108 | 70.42965 | 1 | Rod, Welding, L-61, 1/8-in., 54-in. Long, Right Hand Only |
| Crankshaft Main Bearing Subassembly | |||
| SAP PN | Legacy No. | Qty | Description |
| 100058283 | 316.13503 | 2 | Bearing, Main Outboard |
| 100058282 | 316.13501 | 2 | Bearing, Main Inboard |
| 101384369 | 4 | Washer, Flat, SAE 5/16, 11/32 ID, 11/16 OD, 1/16 Thk, Stl | |
| 100058709 | 317.51017 | 12 | Washer, Outer Race, Crankshaft, Main Bearing, HQ |
| 100002166 | 70.43363 | 4 | Screw, Hex Socket, 5/16-in. 18NC x 1-in. |
| 100026483 | 70.32811 | 4 | Nut, Elastic Stop, 5/16-in. 18NC, Heavy, Pl |
| 100058266 | 316.13304 | 4 | Screw, Cap, Inboard Bearing Race Retainer |
| 100028496 | 70.43877 | 3 | Screw, Hex Cap, 1/2-in. 13NC x 2 3/4-in. |
| 100058095 | 316.11505 | 15 | Washer, Bearing Retainer, Forged |
| 100058233 | 316.13198 | 6 | Washer, Retainer, Inner Race, Heavy-Duty Main Bearing |
| 100030907 | 70.70309 | 12 | Nut, Self-Locking, 1/2-in. 13NC x 3 1/2-in., Pl |
| 100028494 | 70.43875 | 6 | Screw, Hex Cap, 1/2-in. 13NC x 3 1/2-in., Pl |
| 100058898 | 317.55208 | 1 | Crankshaft Assembly, Machined, +0.125, No Nitride |
| Crosshead and Connecting Rod Subassembly | |||
| SAP PN | Legacy No. | Qty | Description |
| 100138092 | 70.4319 | 18 | Screw, FH Cap, 1/4-in. 20NC x 5/8-in., Hex Socket |
| 100058170 | 316.11819 | 3 | Shoe Top, Crosshead |
| 100058172 | 316.11823 | as req | Shim, Crosshead Shoe, Top, 0.003-in. |
| 100058171 | 316.11821 | as req | Shim, Crosshead Shoe, Top, 0.005-in. |
| 100058173 | 316.11825 | as req | Shim, Crosshead Shoe, Top, 0.010-in. |
| 100058174 | 316.11827 | as req | Shim, Crosshead Shoe, Top, 0.020-in. |
| 100002817 | 316.13811 | 3 | Crosshead, Heavy Duty What’s app +8615972752793 |
| 100058180 | 316.11847 | Shim, Bottom Crosshead, 0.005-in. | |
| 100058181 | 316.11848 | Shim, Bottom Crosshead, 0.010-in. | |
| 100058175 | 316.11832 | 3 | Shoe Bottom, Crosshead |
| 100026445 | 70.32721 | 3 | Nut, Elastic Stop, 5/16-in. 24NF, LT, 21NE-054 |
| 100058176 | 316.11833 | 3 | Screw, Cap, Retaining, Crosshead Pin |
| 100057933 | 315.1193 | 6 | Washer, Dished |
| 100011690 | 316.11831 | 6 | Key, Crosshead Pin |
| 100002813 | 316.11829 | 3 | Pin, Crosshead |
| 100011691 | 316.1191 | 3 | Connecting Rod, Forging, Machined |
| 100058186 | 316.11913 | 3 | Bushing, Connecting-Rod Pin |
| 100058184 | 316.11911 | 12 | Screw, Connecting-Rod |
| 100058185 | 316.11912 | 12 | Washer, Connecting-Rod Cap |
| 100025800 | 70.27196 | 12 | Helicoil Insert, No. 1185, 12-in. x 1 7/8-in. Long |
| 100011758 | 317.55214 | 3 | Bearing, Bottom, Connecting Rod, + 0.125, HQ2000 |
| 100011759 | 317.55215 | 3 | Bearing, Top, Connecting Rod, + 0.125, HQ2000 |
| 100057932 | 315.11416 | 3 | Dowel, Connecting-Rod Cap |
| 100030594 | 70.62391 | 1 | Wire, Stove Pipe, 19 Ga., 144-in. Long |
| Crosshead Slide Subassembly | |||
| SAP PN | Legacy No. | Qty | Description |
| 100028805 | 70.44781 | 8 | Screw, Set, 1/4-in. 20NC x 1/4-in., Cup Pt, Hex Socket, Pl |
| 100028806 | 70.44782 | 8 | Screw, Set, 1/4-in. 20NC x 3/4-in., Cup Pt, Hex Socket, Pl |
| 100058286 | 316.13802 | 4 | Clamp, Outboard, Crosshead Slide |
| 100058164 | 316.11805 | 4 | Foot, Right-Hand Crosshead Slide Clamp |
| 100058166 | 316.11807 | 4 | Screw, Crosshead Slide Clamp |
| 100058169 | 316.11817 | 4 | Foot, Left-Hand Crosshead Slide Clamp |
| 100058161 | 316.11801 | 3 | Slide, Top Crosshead Luben@youlongpetro.com |
| 100058162 | 316.11803 | 3 | Slide-Bottom, Crosshead |
| 100058177 | 316.11834 | as req | Shim, Crosshead Slide, 0.002-in. |
| 100058178 | 316.11835 | as req | Shim, Crosshead Slide, 0.005-in. |
| 100058179 | 316.11836 | as req | Shim, Crosshead Slide, 0.010-in. |
| Schroeder Filter/Strainer Lubrication Subassembly | |||
| SAP PN | Legacy No. | Qty | Description |
| 100058197 | 316.11964 | 1 | Cap, By-Pass, Schroeder Oil System |
| 100058198 | 316.11965 | 1 | Screw, Adjust, Bypass, Schroeder Oil System |
| 100011694 | 316.11932 | 1 | Spring, Bypass, Oil Pressure 80 to 100 psi |
| 100058200 | 316.11966 | 1 | Gasket, Cap, Screw, Bypass, Schroeder Oil Systems |
| 100001377 | 70.00427 | 1 | Ball, Steel, 2-in., Chrome Steel, Grade 50 |
| 100058195 | 316.11963 | 1 | Body, Valve, Bypass, Schroeder Oil System |
| 100028439 | 70.43786 | 6 | Screw, Hex Cap, 5/16-in.18NC x 1-in., Plated |
| 100015040 | 70.58952 | 8 | Washer, Lock, 5/16-in., Stl, Pl |
| 100000966 | 8.34031 | 2 | O-Ring, 90D, 3 1/4-in. x 3-in. x 1/8-in. |
| 100029873 | 70.58805 | 6 | Washer, Flat, 5/16-in., Wi, Pl |
| 100058193 | 316.11959 | 1 | Manifold, Oil Strainer and Filter, Machined |
| 100028485 | 70.43864 | 16 | Screw, Hex Cap, 1/2-in.13NC x 1-in., Pl |
| 100081184 | 70.58959 | 16 | Washer, Lock, 1/2-in., Stl, Pl |
| 100021413 | 70.06262 | 1 | Strainer, Oil, Magnetic Element, 100 gpm, 300 psi |
| 100021412 | 70.0626 | 1 | Filter, Oil, 100 gpm, 300 psi |
| 100000961 | 8.34022 | 4 | O-Ring, 90D, 2 1/8-in. x 1 7/8-in. x 1/8-in. |
| 100024782 | 70.23477 | 4 | Flange, Half, 1 1/2-in., 3,000 psi, SF-2522-24 |
| 100036060 | 70.97198 | 1 | Adapter, Hose, Straight, 1 5/8-12 JIC Male x 1.5 C61 Flange Head |
| 100058298 | 316.14147 | 1 | Bracket, Schroeder, Filter |
| 100023268 | 70.15975 | 1 | Clamp, Exhaust, 4 1/2-in., Stemco |
| 100028435 | 70.43781 | 4 | Screw-Hex Cap, 5/16-in. 18NC x 1/2-in., Pl |
| 100013115 | 70.76708 | 35 | Washer, Seal, 5/16-in., Barwood |
| Power-End Lubrication Hose/Line Subassembly | |||
| SAP PN | Legacy No. | Qty | Description |
| 100002493 | 70.88352 | 1 | Gauge, Oil Pressure, 0 to 150 lb, Microswitch |
| 100049565 | 270.08673 | 1 | Bracket, Heat Indicator, Murphy Gauge |
| 100058080 | 316.11188 | 1 | Bracket, Gauge, Oil Temp and Press-Schroeder |
| 100013017 | 70.43814 | 2 | Screw, Hex Cap, 3/8-in. 16NC x 1-in., Pl |
| 100013059 | 70.58955 | 2 | Washer, Lock, 3/8-in., Stl, Pl |
| 100029874 | 70.58806 | 2 | Washer, Flat, 3/8-in. WI, Pl |
| 100012921 | 70.32912 | 2 | Nut, Hex, 3/8-in. 16NC, Pl |
| 100028488 | 70.43868 | 2 | Screw, Hex Cap, 1/2-in.13NC x 1 1/2-in., Pl |
| 100081184 | 70.58959 | 2 | Washer, Lock, 1/2-in., Stl, Pl |
| 100026525 | 70.32914 | 2 | Nut, Hex, 1/2-in. 13NC, Pl |
| 100058261 | 316.1328 | 1 | Hose Assembly, Lube Pressure, HT-400™ Power End |
| 100058262 | 316.13282 | 1 | Hose Assembly, Gear Support Bearing Lube, HT-400™ Power End |
| 100058263 | 316.13283 | 1 | Hose Assembly, Thrust Bearing Lube, HT-400™ Power End |
| 100025591 | 70.26634 | 1 | Adapter, Hose, 070102-4-2C, 7-16-20 JIC Male x 1/8-27 NPT Male, Steel |
| 100016618 | 27.00101 | 1 | Coupling, 1/8 NOM 27V, Standard, Steel |
| 100025640 | 70.26763 | 2 | Adapter, Hose, Straight, 9/16-18 JIC Male x 3/8-18 NPT Male, Steel |
| 100031391 | 70.72665 | 1 | Adapter, Hose, Tee, 2 x 9/16-18 JIC Male x 9/16-18 JIC SWVL FML, STL |
| 100025641 | 70.26764 | 1 | Adapter, Hose, Straight, 7/16-20 JIC Male X 3/8-18 NPT Male, Steel |
| 100012853 | 70.26364 | 3 | Adapter, Hose, Elbow, 9/16-18 JIC Male x 9/16-JIC SWVL FML, STL |
| 100025596 | 70.26644 | 1 | Adapter, Hose, Straight, 9/16-18 JIC Male X 1/4-18 NPT Male, Steel |
| 100058310 | 316.16416 | 1 | Plug, Orifice, 1/8 NPT, 0.157 Dia Hole |
| 101284157 | 1 | Tube, Oil Line, General, HT-400™ Pump Power End,(Includes Rubber Lines and Fittings) What’s app +8615972752793 | |
| 100011692 | 316.11917 | 3 | Bolt, Saddle, Crosshead Oiler |
| 100002324 | 70.72129 | 6 | Washer, Seal, 1/2-in. |
| 100011693 | 316.11918 | 6 | Saddle, Oil Line, Crosshead Oiler |
| 100000946 | 8.33929 | 6 | O-Ring, 90D, 1 1/16-in. x 7/8-in. x 3/32-in. |
| Crankshaft Lubricator Subassembly | |||
| SAP PN | Legacy No. | Qty | Description |
| 100010084 | 106.53475 | 1 | Nut, 63121, Thread Protector, 7/8-in., S-W |
| 100057942 | 315.32351 | 1 | Gasket, Drive-Adapter Cap, Gallon Counter |
| 100028439 | 70.43786 | 4 | Screw, Hex Cap, 5/16-in. 18NC x 1-in., Pl |
| 100015040 | 70.58952 | 4 | Washer, Lock, 5/16-in., Stl, Pl |
| 100011695 | 316.13197 | 1 | Injector, Oil, Crankshaft, With l lb 20 Adapter |
| 100011700 | 316.16414 | 1 | Gasket, Injector, Crankshaft Oil, With No. 20 Adapter |
| 100001944 | 70.33947 | 1 | O-Ring, 90D, 9/16-in. x 3/8-in. x 3/32-in. |
| 100002816 | 316.13308 | 1 | Shaft, Drive, Gallon Counter |
| 100028033 | 70.42144 | 1 | Ring, Retaining, 5000, 156-H, Int, Truarc |
| 100013005 | 70.42128 | 1 | Ring, Retaining, UR-165-S, Stnls, Spirolox (Used on pre-1981 pumps) |
| 100013035 | 70.45847 | 1 | Seal, Magnetic Shaft, MSC-65152, Rev B |
| 100002821 | 316.14142 | 1 | Bushing, Magnetic Seal, Insulator & Counter Drive |
| Case Cover Subassembly | |||
| SAP PN | Legacy No. | Qty | Description |
| 100028435 | 70.43781 | 97 | Screw-Hex Cap, 5/16-in. 18NC x 1/2-in., Pl |
| 100013115 | 70.76708 | 67 | Washer, Seal, 5/16-in., Barwood |
| 100058273 | 316.13321 | 1 | Cover, Long, Crosshead Slide |
| 100011698 | 316.13323 | 1 | Gasket, Long Cover, Crosshead Slide |
| 100058237 | 316.1321 | 1 | Plate, Cover, Oil Injector Luben@youlongpetro.com |
| 100009528 | 316.13301 | 1 | Gasket, Oil Injector, Cover Plate |
| 100009677 | 70.58981 | 16 | Washer, Lock, 5/16-in., Internal, Shakeproof, Pl |
| 100029873 | 70.58805 | 12 | Washer, Flat, 5/16-in., Wi, Pl |
| 100058086 | 316.11344 | 2 | Cover, Connecting Rod Access |
| 100011682 | 316.11345 | 3 | Gasket, Connecting Rod Access Cover |
| 100011696 | 316.13244 | 1 | Cover Assembly, Con Rod Access, W/4 1/4-in. OD Filler Neck |
| 100002844 | 70.12486 | 1 | Cap, Filler, Wisco, Vented |
| 100002815 | 316.13249 | 1 | Dipstick, Oil, 4 1/4-in. OD Filler Neck |
| 100058070 | 316.11143 | 1 | Cover, Inspection, Gear |
| 100011680 | 316.11144 | 1 | Gasket, Cover, Inspection Gear |
| 100058084 | 316.11311 | 1 | Cover, Plate, Gear Housing |
| 100002810 | 316.11313 | 1 | Gasket, Cover Plate, Gear |
| 100058085 | 316.11315 | 1 | Baffle, Inside, Gear Housing |
| 100058271 | 316.13317 | 1 | Cover, Short Crosshead Slide |
| 100011697 | 316.13319 | 1 | Gasket, Short Cover, Crosshead Slide |
| 100058208 | 316.131 | 1 | Power-End Case, Machined, Right-Hand Drive |
| 100058299 | 316.161 | 1 | Power-End Case, Machined, Left-Hand Drive |
| L-2 Spacer Subassembly | |||
| SAP PN | Legacy No. | Qty | Description |
| 100002811 | 316.11621 | 12 | Nut, 1-14 NF, Internal Wrenching, 1.03 Thread Length |
| 100002833 | 316.21066 | 3 | Retainer, Push Rod, HT-400™, Two Piece Nose, L-Spacer |
| 100000959 | 8.3402 | 3 | O-Ring, 90 Duro, 1 7/8 x 1 5/8 x 1/8, 568-223 |
| 100002832 | 316.21065 | 3 | Push Rod, Two Piece, L-Spacer, HT-400™ |
| 100002971 | 316.25166 | 3 | Tie Rod, Push Rod, L-Spacer, HT-400™ |
| 100058516 | 316.25168 | 1 | Spacer, L-Frame, Machined, HT-400™ FE & PE |
| 100058513 | 316.251 | 1 | Guard Assembly, HT-400™, L-2 Spacer |
| 100011067 | 106.63914 | 2 | Hinge, DR-35, Latch, Hood, Bassick |
| 100026633 | 70.33263 | 4 | Nut, Clip, 10-24, Steel With Bright Green Finish |
| 100028741 | 70.4454 | 4 | Screw, Round Head, Machine, No 10-24 NC x 3/8, PL |
| 100029918 | 70.58947 | 4 | Washer, Lock, #10 ST Plated |
| 100013017 | 70.43814 | 12 | Screw, Hex Cap, 3/8-16 NC x 1, PL, Spec 70.43917 |
| 100013059 | 70.58955 | 12 | Washer, Lock, 3/8, Steel, PL, Spec |
| 100002804 | 316.10012 | 3 | Retainer, Push Rod Seal Housing, L-2 Spacer, HT-400™ Pump |
| 100001903 | 70.33739 | 3 | O-Ring, 70 Duro, 5 11/16 x 5 1/2 x 3/32 568-161 |
| 100002805 | 316.10013 | 3 | Housing, Push Rod Seal, Floating, L-2 Spacer, HT-400™ |
| 100002806 | 316.10014 | 6 | Seal, Push Rod, L-Spacer, HT-400™ |
| 100002968 | 316.24923 | 12 | Stud, Attaching, Fluid End to Power End, L Spacer, HT-400™ Pump |
| L-4 Spacer Subassembly | |||
| SAP PN | Legacy No. | Qty | Description |
| 100002811 | 316.11621 | 12 | Nut, 1-14 NF, Internal Wrenching, 1.03 Thread Length |
| 100002833 | 316.21066 | 3 | Retainer, Push Rod, HT-400™, Two Piece Nose, L-Spacer |
| 100000959 | 8.3402 | 3 | O-Ring, 90 Duro, 1 7/8 x 1 5/8 x 1/8, 568-223 |
| 100002832 | 316.21065 | 3 | Push Rod, Two Piece, L-Spacer, HT-400™ |
| 100002971 | 316.25166 | 3 | Tie Rod, Push Rod, L-Spacer, HT-400™ |
| 100058500 | 316.24926 | 12 | Tube, Frame, L-4 Spacer |
| 100009593 | 316.25101 | 1 | Guard Assembly, HT-400™, L-4 Spacer |
| 100011068 | 106.63915 | 2 | Fastener, Bar, Hood, Bassick, DH-40 |
| 100026443 | 70.32708 | 4 | Nut, Elastic Stop, 10-32 NF |
| 100028197 | 70.43289 | 4 | Screw, Hex Socket, #10-32 NF x ½, SS |
| 100029949 | 70.59015 | 4 | Washer, Lock, #10 SS What’s app +8615972752793 |
| 100058335 | 316.21253 | 2 | Mount, Latch, Guard, Aluminum Spacer, HT-400™ Pump |
| 100023243 | 70.15877 | 4 | Clamp, Hose, SAE #36, 1 7/16 – 2 3/4 |
| 100028439 | 70.43786 | 9 | SCREW, HEX CAP, 5/16-18 NC X 1, PL |
| 100015040 | 70.58952 | 9 | Washer, lock 5/16 , Steel Pl |
| 100002818 | 316.1407 | 3 | Retainer, Push Rod Seal Housing, L4 Spacer, HT-400™ |
| 100002025 | 70.34106 | 3 | O-Ring, 70 Duro, 4 15/16 X 4 3/4 X 3/32 568-158 |
| 100002819 | 316.14072 | 3 | Housing, Push Rod Seal, Floating, L4 Spacer, HT400 |
| 100002806 | 316.10014 | 6 | Seal, Push Rod, L-Spacer, HT-400™ |
| 100058501 | 316.24927 | 1 | Plate, PE, Steel, HT-400™, L-Spacer |
| 100002968 | 316.24923 | 12 | Stud, Attaching, Fluid End to Power End, L Spacer, HT-400™ Pump |
| HT-400 Pump Power-End Parts | |||
| 3-3/8- and 4.0-inch (No. 3) Suction Valve Subassemblies | |||
| SAP PN | Legacy No. | Qty | Description |
| 100058419 | 316.22977 | 3 | Retainer, Stop and Spring, HT400, No. 3 Suction Valve, Mach. Cast |
| 100002972 | 316.25233 | 6 | Boot, Suction and Stop, HT-400™, No. 3, 4 and 5 Frac |
| 100002841 | 316.2125 | 3 | Spring, Lock, Suction Stop, No. 3, HT400 |
| 100002079 | 70.35717 | 6 | Pin, Cotter, 1/8 x 1 1/2 Inch, HT-400™ |
| 100002868 | 316.22005 | 6 | Liner, Two Piece Bushing, Valve Guide, HT400, No.4 Frac, Brass |
| 100002867 | 316.22004 | 6 | Insert, Two Piece Bushing, Valve Guide, Special, HT-400™, No 4 Frac |
| 100002837 | 316.2108 | 6 | Spring, Valve, HT400, No. 3, 3.38 and 4 Inch, 36 lb/in |
| 100002824 | 316.21007 | 6 | Valve, HT400, 3.38, 4.0 In, Frac Luben@youlongpetro.com |
| 101333083 | 316.21048 | 6 | Insert, Valve, HT400, No. 3 Frac, Urethane, Acid/Frac Service (Yellow) |
| 100002823 | 316.21006 | 6 | Insert, Valve, HT400, No. 3 Frac, Urethane, Standard Service (Brown) |
| 100002825 | 316.21008 | 6 | Seat Valve, HT400, No. 3 Frac, Tapered |
| 100000968 | 8.34037 | 6 | O-ring, 90 Duro, 4 x 3 3/4 x 1/8, 568-240 |
| 100002838 | 316.21096 | 6 | Retainer, Guide Bushing, HT400, 3.38, 4.0 Inch, Tapered Seat Bore |
| 4-1/2-inch (No. 4) Suction Valve Subassemblies | |||
| SAP PN | Legacy No. | Qty | Description |
| 100058432 | 316.23034 | 3 | Retainer, Stop and Spring, HT400, No. 4 Suction Valve, Mach. Cast |
| 100002972 | 316.25233 | 6 | Boot, Suction and Stop, HT-400™, No. 3, 4 and 5 Frac |
| 100007270 | 316.22252 | 3 | Spring, Lock, Suction Stop, No. 4, HT400 |
| 100002868 | 316.22005 | 6 | Liner, Two Piece Bushing, Valve Guide, HT400, No.4 Frac, Brass |
| 100002867 | 316.22004 | 6 | Insert, Two Piece Bushing, Valve Guide, Special, HT-400™, No 4 Frac |
| 100002936 | 316.2308 | 6 | Spring, Valve, HT400, No. 4, 4.5 Inch, 25 lb/in |
| 100002875 | 316.22048 | 6 | Valve, HT400, 4.5 inch, Frac |
| 101333104 | 316.22046 | 6 | Insert, Valve, HT400, No. 4 Frac, Urethane, Acid/Frac Service (Yellow) |
| 100002876 | 316.22049 | 6 | Insert, Valve, HT400, No. 4 Frac, Urethane, Standard Service (Brown) |
| 100002874 | 316.22047 | 6 | Seat Valve, HT400, No. 4 Frac, Tapered |
| 100000970 | 8.34041 | 6 | O-ring, 90 Duro, 4 1/2 x 4 1/4 x 1/8, 568-244 |
| 100002955 | 316.23953 | 6 | Retainer, Guide Bushing, HT400, No. 4, Tapered Seat Bore |
| 5.0- and 6.0-inch (No. 5) Suction Valve Subassemblies | |||
| SAP PN | Legacy No. | Qty | Description |
| 100058542 | 316.2584 | 3 | Retainer, Stop and Spring, HT400, No. 5 Suction Valve, Mach. Cast |
| 100002972 | 316.25233 | 6 | Boot, Suction and Stop, HT-400™, No. 3, 4 and 5 Frac |
| 100002882 | 316.22253 | 3 | Spring, Lock, Suction Stop, No. 5, HT400 |
| 100002870 | 316.22007 | 6 | Liner, Two Piece Bushing, Valve Guide, HT400, No.5 Frac, Brass |
| 100002869 | 316.22006 | 6 | Insert, Two Piece Bushing, Valve Guide, Special, HT-400™, No 5 Frac |
| 100058597 | 316.27259 | 6 | Spring, Valve, HT400, No. 5, Conical, Stainless, 50 lb/in |
| 100002960 | 316.24027 | 6 | Valve, HT400, No. 5, 5.0 and 6.0 inch, Frac |
| 101349952 | 316.24026 | 6 | Insert, Valve, HT400, No. 5 Frac, Urethane, Acid/Frac Service (Yellow) |
| 100002961 | 316.24037 | 6 | Insert, Valve, HT400, No. 5 Frac, Urethane, Standard Service (Brown) |
| 100002957 | 316.24024 | 6 | Seat Valve, HT400, No. 5 Frac, Tapered |
| 100000974 | 8.34045 | 6 | O-ring, 90 Duro, 5 3/16 x 5 x 3/32, 568-159 |
| 100002962 | 316.24043 | 6 | Retainer, Guide Bushing, HT400, No. 5, Tapered Seat Bore |
| 3-3/8-inch Fluid-End Discharge Valve Subassembly | |||
| SAP PN | Legacy No. | Qty | Description |
| 100008186 | 316.2102 | 3 | Retainer, Cover, HT-400™, 3.38 in |
| 100002836 | 316.2107 | 3 | Cover, Discharge, Double Guided Valve, HT-400™, 3.38 in |
| 100002830 | 316.21052 | 3 | Gasket, Discharge Valve & Cylinder Head Cover, 3.38 in., HT-400™ |
| 100002829 | 316.21051 | 3 | Ring, Spacer, Discharge Valve & Cylinder Head Cover, 3.38 in., HT-400™ |
| 100002868 | 316.22005 | 6 | Liner, Two Piece Bushing, Valve Guide, HT400, No.4 Frac, Brass |
| 100002867 | 316.22004 | 6 | Insert, Two Piece Bushing, Valve Guide, Special, HT-400™, No 4 Frac |
| 100002837 | 316.2108 | 3 | Spring, Valve, HT400, No. 3, 3.38 and 4 Inch, 36 lb/in |
| 100002824 | 316.21007 | 3 | Valve, HT400, 3.38, 4.0 In, Frac |
| 101333083 | 316.21048 | 3 | Insert, Valve, HT400, No. 3 Frac, Urethane, Acid/Frac Service (Yellow) |
| 100002823 | 316.21006 | 3 | Insert, Valve, HT400, No. 3 Frac, Urethane, Standard Service (Brown) |
| 100002825 | 316.21008 | 3 | Seat Valve, HT400, No. 3 Frac, Tapered |
| 100000968 | 8.34037 | 3 | O-ring, 90 Duro, 4 x 3 3/4 x 1/8, 568-240 |
| 100002838 | 316.21096 | 3 | Retainer, Guide Bushing, HT400, 3.38, 4.0 Inch, Tapered Seat Bore |
| 4-inch Fluid-End Discharge Valve Subassembly | |||
| SAP PN | Legacy No. | Qty | Description |
| 100007820 | 316.2202 | 3 | Retainer, Cover, HT-400™, 4.0 in |
| 100002938 | 316.23091 | 3 | Cover, Discharge, Double Guided Valve, HT-400™, 4.0 and 4.5 in |
| 100002878 | 316.22052 | 3 | Gasket, Discharge Valve & Cylinder Head Cover, No. 4, HT-400™ |
| 100002877 | 316.22051 | 3 | Ring, Spacer, Discharge Valve & Cylinder Head Cover, No.4, HT-400™ |
| 100002868 | 316.22005 | 6 | Liner, Two Piece Bushing, Valve Guide, HT400, No.4 Frac, Brass |
| 100002867 | 316.22004 | 6 | Insert, Two Piece Bushing, Valve Guide, Special, HT-400™, No 4 Frac |
| 100002837 | 316.2108 | 3 | Spring, Valve, HT400, No. 3, 3.38 and 4 Inch, 36 lb/in |
| 100002824 | 316.21007 | 3 | Valve, HT400, 3.38, 4.0 In, Frac |
| 101333083 | 316.21048 | 3 | Insert, Valve, HT400, No. 3 Frac, Urethane, Acid/Frac Service (Yellow) |
| 100002823 | 316.21006 | 3 | Insert, Valve, HT400, No. 3 Frac, Urethane, Standard Service (Brown) |
| 100002825 | 316.21008 | 3 | Seat Valve, HT400, No. 3 Frac, Tapered |
| 100000968 | 8.34037 | 3 | O-ring, 90 Duro, 4 x 3 3/4 x 1/8, 568-240 |
| 100002838 | 316.21096 | 3 | Retainer, Guide Bushing, HT400, 3.38, 4.0 Inch, Tapered Seat Bore |
| 4-1/2-inch Fluid-End Discharge Valve Subassembly | |||
| SAP PN | Legacy No. | Qty | Description |
| 100007820 | 316.2202 | 3 | Retainer, Cover, HT-400™, 4.0 in |
| 100002938 | 316.23091 | 3 | Cover, Discharge, Double Guided Valve, HT-400™, 4.0 and 4.5 in |
| 100002878 | 316.22052 | 3 | Gasket, Discharge Valve & Cylinder Head Cover, No. 4, HT-400™ |
| 100002877 | 316.22051 | 3 | Ring, Spacer, Discharge Valve & Cylinder Head Cover, No.4, HT-400™ |
| 100002868 | 316.22005 | 6 | Liner, Two Piece Bushing, Valve Guide, HT400, No.4 Frac, Brass |
| 100002867 | 316.22004 | 6 | Insert, Two Piece Bushing, Valve Guide, Special, HT-400™, No 4 Frac |
| 100002936 | 316.2308 | 3 | Spring, Valve, HT400, No. 4, 4.5 Inch, 25 lb/in |
| 100002875 | 316.22048 | 3 | Valve, HT400, 4.5 inch, Frac Luben@youlongpetro.com |
| 101333104 | 316.22046 | 3 | Insert, Valve, HT400, No. 4 Frac, Urethane, Acid/Frac Service (Yellow) |
| 100002876 | 316.22049 | 3 | Insert, Valve, HT400, No. 4 Frac, Urethane, Standard Service (Brown) |
| 100002874 | 316.22047 | 3 | Seat Valve, HT400, No. 4 Frac, Tapered |
| 100000970 | 8.34041 | 3 | O-ring, 90 Duro, 4 1/2 x 4 1/4 x 1/8, 568-244 |
| 100002955 | 316.23953 | 3 | Retainer, Guide Bushing, HT400, No. 4, Tapered Seat Bore |
| 5.0- and 6.0-inch Fluid-End Discharge Valve Subassembly | |||
| SAP PN | Legacy No. | Qty | Description |
| 100058508 | 316.2502 | 3 | Retainer, Cover, HT-400™, 5.75 in |
| 100058471 | 316.24044 | 3 | Cover, Discharge, Double Guided Valve, HT-400™, 5.0 and 6.0 in |
| 100011734 | 316.25052 | 3 | Gasket, Discharge Valve & Cylinder Head Cover, No. 5, HT-400™ |
| 100011733 | 316.25051 | 3 | Ring, Spacer, Cylinder Head Cover, No.5, HT-400™ |
| 100002870 | 316.22007 | 6 | Liner, Two Piece Bushing, Valve Guide, HT400, No.5 Frac, Brass |
| 100002869 | 316.22006 | 6 | Insert, Two Piece Bushing, Valve Guide, Special, HT-400™, No 5 Frac |
| 100058597 | 316.27259 | 3 | Spring, Valve, HT400, No. 5, Conical, Stainless, 50 lb/in |
| 100002960 | 316.24027 | 3 | Valve, HT400, No. 5, 5.0 and 6.0 inch, Frac |
| 101349952 | 316.24026 | 3 | Insert, Valve, HT400, No. 5 Frac, Urethane, Acid/Frac Service (Yellow) |
| 100002961 | 316.24037 | 3 | Insert, Valve, HT400, No. 5 Frac, Urethane, Standard Service (Brown) |
| 100002957 | 316.24024 | 3 | Seat Valve, HT400, No. 5 Frac, Tapered What’s app +8615972752793 |
| 100000974 | 8.34045 | 3 | O-ring, 90 Duro, 5-in. x 4 3/4-in. x 1/8-in., 568-248 |
| 100002962 | 316.24043 | 3 | Retainer, Guide Bushing, HT400, No. 5, Tapered Seat Bore |

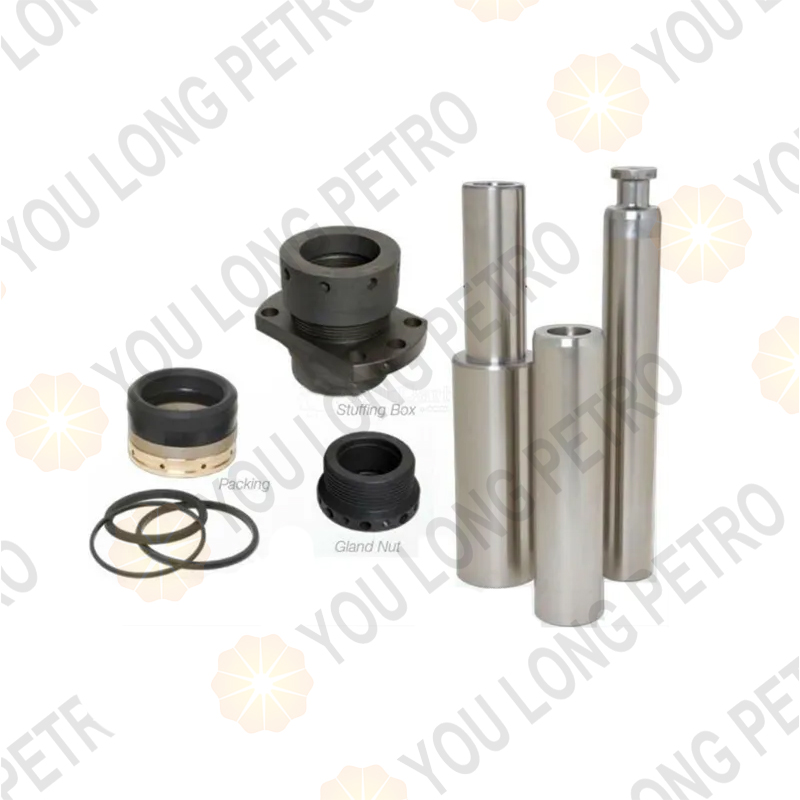

| 3 3/8-inch Fluid-End Plunger/Cylinder Head Cover Subassembly | |||
| SAP PN | Legacy No. | Qty | Description |
| 100008186 | 316.2102 | 6 | Retainer, Cover, HT-400™, 3.38 in |
| 100011711 | 316.22606 | 3 | Retainer, Protective Cylinder Head Cover, 4.0 in |
| 100002836 | 316.2107 | 3 | Cover, Cylinder Head, HT-400™, 3.38 in |
| 100002902 | 316.22605 | 3 | Cover, Protective Cylinder Head, 4.0 in |
| 100002830 | 316.21052 | 6 | Gasket, 3 Discharge Valve & Cylinder Head Cover, 3 3/8 in |
| 100002829 | 316.21051 | 6 | Ring, Spacer, #3 Discharge Valve & Cylinder Head Cover, 3 3/8 |
| 100002843 | 316.2131 | 3 | Nose, Plunger, HT-400™, 3 3/8 in |
| 100002842 | 316.213 | 3 | Seal, Plunger Nose Assembly, HT-400™, 3 3/8 in |
| 100009641 | 316.21026 | 3 | Plunger, 3 3/8 in., Hard Surface, L-Spacer, HT-400™ |
| 100002827 | 316.21028 | 3 | Tie Rod, Plunger, HT-400™, 3.38, 4.0, 4.5 in |
| 100002831 | 316.21059 | 3 | Adapter, Pushrod, HT-400™, 3 3/8 in, Two Piece Nose |
| 4-inch Fluid-End Plunger/Cylinder Head Cover Subassembly | |||
| SAP PN | Legacy No. | Qty | Description |
| 100008186 | 316.2102 | 6 | Retainer, Cover, HT-400™, 3.38 in |
| 100011711 | 316.22606 | 3 | Retainer, Protective Cylinder Head Cover, 4.0 in |
| 100002836 | 316.2107 | 3 | Cover, Cylinder Head, HT-400™, 3.38 in |
| 100002902 | 316.22605 | 3 | Cover, Protective Cylinder Head, 4.0 in |
| 100002830 | 316.21052 | 6 | Gasket, 3 Discharge Valve & Cylinder Head Cover, 3 3/8 in |
| 100002829 | 316.21051 | 6 | Ring, Spacer, #3 Discharge Valve & Cylinder Head Cover, 3 3/8 |
| 100002885 | 316.2231 | 3 | Nose, Plunger, HT-400™, 4.0 in |
| 100002884 | 316.223 | 3 | Seal, Plunger Nose Assembly, HT-400™, 4.0 in |
| 100002883 | 316.22294 | 3 | Plunger, 4.0 in., Hard Surface, L-Spacer, HT-400™ |
| 100002827 | 316.21028 | 3 | Tie Rod, Plunger, HT-400™, 3.38, 4.0, 4.5 in |
| 100011706 | 316.22302 | 3 | Adapter, Pushrod, HT-400™, 4.0 in, Two Piece Nose |
| 4 1/2-inch Fluid-End Plunger/Cylinder Head Cover Subassembly | |||
| SAP PN | Legacy No. | Qty | Description |
| 100007820 | 316.2202 | 6 | Retainer, Cover, HT-400™, 4.5 in |
| 100007823 | 316.23639 | 3 | Retainer, Protective Cylinder Head Cover, 4.5 in |
| 100009530 | 316.2207 | 3 | Cover, Cylinder Head, HT-400™, 4.5 in, Bar Stock |
| 100002952 | 316.23638 | 3 | Cover, Protective Cylinder Head, 4.5 in |
| 100002878 | 316.22052 | 6 | Gasket, 4 Discharge Valve & Cylinder Head Cover, 4 1/2 |
| 100002877 | 316.22051 | 6 | Ring, Spacer, #4 Discharge Valve & Cylinder Head Cover, 4 1/2 |
| 100002941 | 316.2331 | 3 | Nose, Plunger, HT-400™, 4.5, 5.0, 6.0 in |
| 100002940 | 316.233 | 3 | Seal, Plunger Nose Assembly, HT-400™, 4.5 |
| 100002937 | 316.23085 | 3 | Plunger, 4.5 In., Hard Surface, L-Spacer, HT-400™ |
| 100002827 | 316.21028 | 3 | Tie Rod, Plunger, HT-400™, 3.38, 4.0, 4.5 in |
| 100011721 | 316.23089 | 3 | Adapter, Pushrod, HT-400™, 4.5 in, Two Piece Nose |
| 5-inch Fluid-End Plunger/Cylinder Head Cover Subassembly | |||
| SAP PN | Legacy No. | Qty | Description |
| 100058508 | 316.2502 | 6 | Retainer, Cover, HT-400™, 5.75 in |
| 100058490 | 316.24615 | 3 | Retainer, Protective Cylinder Head Cover, 5 in |
| 100058475 | 316.2407 | 3 | Cover, Cylinder Head, HT-400™, 5.0 in |
| 100011728 | 316.24614 | 3 | Cover, Protective Cylinder Head, 5.0 in |
| 100011734 | 316.25052 | 6 | Gasket, 5 Discharge Valve & Cylinder Head Cover, 5 in |
| 100011733 | 316.25051 | 6 | Ring, Spacer, #5 Discharge Valve & Cylinder Head Cover, 5 in |
| 100002941 | 316.2331 | 3 | Nose, Plunger, HT-400™, 4.5, 5.0, 6.0 in |
| 100002940 | 316.233 | 3 | Seal, Plunger Nose Assembly, HT-400™, 4.5 |
| 100011726 | 316.24296 | 3 | Plunger, 5.0 In., Hard Surface, L-Spacer, HT-400™ |
| 100002970 | 316.25165 | 3 | Tie Rod, Plunger, HT-400™, 6.0 in |
| 100011727 | 316.24336 | 3 | Adapter, Pushrod, HT-400™, 5.0 in, Two Piece Nose |
| 6-inch Fluid-End Plunger/Cylinder Head Cover Subassembly | |||
| SAP PN | Legacy No. | Qty | Description |
| 100058510 | 316.2506 | 6 | Retainer, Cover, HT-400™, 6.0 in |
| 100058618 | 316.27614 | 3 | Retainer, Protective Cylinder Head Cover, 6 in |
| 100008190 | 316.2507 | 3 | Cover, Cylinder Head, HT-400™, 6.0 in |
| 100058617 | 316.27613 | 3 | Cover, Protective Cylinder Head, 6.0 in |
| 100058512 | 316.25074 | 6 | Gasket, 6 Discharge Valve & Cylinder Head Cover, 6 in |
| 100058511 | 316.25073 | 6 | Ring, Spacer, #6 Discharge Valve & Cylinder Head Cover, 6 in |
| 100002941 | 316.2331 | 3 | Nose, Plunger, HT-400™, 4.5, 5.0, 6.0 in |
| 100002940 | 316.233 | 3 | Seal, Plunger Nose Assembly, HT-400™, 4.5 |
| 100058514 | 316.25162 | 3 | Plunger, 6.0 In., Hard Surface, L-Spacer, HT-400™ |
| 100002970 | 316.25165 | 3 | Tie Rod, Plunger, HT-400™, 6.0 in |
| 100058517 | 316.25172 | 3 | Adapter, Pushrod, HT-400™, 6.0 in, Two Piece Nose |
| 3-3/8-inch Packing Nut | |||
| SAP PN | Legacy No. | Qty | Description |
| 100002081 | 3 | Pin, Groove, ½-in x 1 ¼-in, Type 5 | |
| 100002846 | 3 | Sleeve, Wiper Gland, 3.375 Inch | |
| 100002845 | 3 | Nut, Packing Adjustment, 3.375 Inch | |
| 3-3/8-inch CDI Packing | |||
| SAP PN | Legacy No. | Qty | Description |
| 101377627 | 3 | Seal, Packing Lube, 3.375, WS-Seal, CDI | |
| 100002011 | 3 | O-Ring, 90 Duro, 4 3/8 x 4 1/8 X 1/8 568-243 | |
| 101377626 | 3 | Carrier, Seal, 3.375, CDI | |
| 101377624 | 3 | Adapter, Female, 3.375, PEEK, CDI | |
| 101377623 | 3 | Packing, 3.375, CDI, WSP1, PTFE | |
| 101377622 | 3 | Header Ring, 3.375, HNBR, CDI | |
| 101377620 | 3 | Spacer, 3.375, Fluid End, CDI | |
| 3-3/8-inch Acid Service Packing (8140) | |||
| SAP PN | Legacy No. | Qty | Description |
| 101408135 | 3 | Seal, Packing Lube, Z20, 3-3/8 x 3-7/8 x 9/16 Zurcon UCUP, Double Lip FE | |
| 100000969 | 3 | O-Ring, 90 Duro, 4 3/8 x 4 1/8 X 1/8 568-243 | |
| 101389194 | 3 | Carrier, Seal, 3.375, HT-400™, 2004 Luben@youlongpetro.com | |
| 100002852 | 3 | Ring, Backup, Packing, HT-400™ 3.38 in, 2004 | |
| 100002854 | 3 | Packing Set, 3 3/8 x 4 3/8 x 0.50 Stock HT, 3 rings, Hard, Acid Service | |
| 100058346 | 3 | Header Ring, 3 3/8 x 4 3/8 Packing, Polyurethane, HT-400™ FE | |
| 100002852 | 3 | Adapter, Header Ring, 3 3/8 x 4/3/8, HT-400™, FE | |
| 4.0-inch Packing Nut | |||
| SAP PN | Legacy No. | Qty | Description |
| 100002081 | 3 | Pin, Groove, ½-in x 1 ¼-in, Type 5 | |
| 101328357 | 3 | Sleeve, Wiper Gland, HCLE, 4.0 Inch | |
| 101328001 | 3 | Nut, Packing Adjustment, HCLE, 4.0 Inch | |
| 4.0-inch CDI Packing | |||
| SAP PN | Legacy No. | Qty | Description |
| 101377657 | 3 | Seal, Packing Lube, 4.000, WS-Seal, CDI | |
| 100002016 | 3 | O-Ring, 90 Duro, 5 x 4 3/4 X 1/8 568-248 | |
| 101377656 | 3 | Carrier, Seal, 4.000, CDI What’s app +8615972752793 | |
| 101377652 | 3 | Adapter, Female, 4.000, PEEK, CDI | |
| 101377641 | 3 | Packing, 4.000, CDI, WSP1, PTFE | |
| 101377640 | 3 | Header Ring, 4.000, HNBR, CDI | |
| 101377638 | 3 | Spacer, 4.000, Fluid End, CDI | |
| 4.0-inch Acid Service Packing (8140) | |||
| SAP PN | Legacy No. | Qty | Description |
| 100058388 | 3 | Seal, Packing Lube, Z20, 4 x 4 1/2 x 9/16 Zurcon UCUP, Double Lip FE | |
| 100000974 | 3 | O-Ring, 90 Duro, 5 x 4 3/4 X 1/8 568-248 | |
| 101389213 | 3 | Carrier, Seal, 4.0, HT-400™, 2004 | |
| 101389224 | 3 | Ring, Backup, Packing, HT-400™ 4.0 in, 2004 | |
| 100002899 | 3 | Packing Set, 4 x 5 x 0.50 Stock HT, 3 rings, Hard, Acid Service | |
| 100002897 | 3 | Header Ring, 4 x 5 Packing, Polyurethane, HT-400™ FE | |
| 100002896 | 3 | Adapter, Header Ring, 4 x 5, HT-400™, FE | |
| 4.5-inch Packing Nut | |||
| SAP PN | Legacy No. | Qty | Description |
| 100002081 | 3 | Pin, Groove, ½-in x 1 ¼-in, Type 5 | |
| 101328357 | 3 | Sleeve, Wiper Gland, HCLE, 4.0 Inch | |
| 101330209 | 3 | Nut, Packing Adjustment, HCLE, 4.5 Inch | |
| 4.5-inch CDI Packing | |||
| SAP PN | Legacy No. | Qty | Description |
| 101377665 | 3 | Seal, Packing Lube, 4.50, WS-Seal, CDI | |
| 100002019 | 3 | O-Ring, 90 Duro, 5 1/2 x 5 1/4 x 1/8 568-252 | |
| 101377664 | 3 | Carrier, Seal, 4.50, CDI | |
| 101377663 | 3 | Adapter, Female, 4.500, PEEK, CDI | |
| 101377661 | 3 | Packing, 4.50, CDI WSP1, PTFE | |
| 101377660 | 3 | Header Ring, 4.50, HNBR, CDI | |
| 101377659 | 3 | Spacer, 4.50 in., Fluid End, CDI | |
| 4.5-inch Acid Service Packing (8140) | |||
| SAP PN | Legacy No. | Qty | Description |
| 101252286 | 3 | Seal, Packing Lube, Z20, 4 1/2 x 5 x 9/16 Zurcon UCUP, Double Lip FE | |
| 100000977 | 3 | O-Ring, 90 Duro, 5 1/2 x 5 1/4 X 1/8 568-252 | |
| 101389214 | 3 | Carrier, Seal, 4.5, HT-400™, 2004 | |
| 101389225 | 3 | Ring, Backup, Packing, HT-400™ 4.5 in, 2004 | |
| 100002951 | 3 | Packing Set, 4 1/2x 5 1/2 x 0.50 Stock HT, 3 rings, Hard, Acid Service | |
| 100002949 | 3 | Header Ring, 4 1/2 x 5 1/2 Packing, Polyurethane, HT-400™ FE | |
| 100002948 | 3 | Adapter, Header Ring, 4 1/2 x 5 1/2, HT-400™, FE | |
| 5.0-inch Packing Nut | |||
| SAP PN | Legacy No. | Qty | Description |
| 100027239 | 3 | Pin, Groove, 3/8-in x 1 ¼-in, Type 5 | |
| 101438001 | 3 | Sleeve, Wiper Gland, HCLE, 5.0 Inch | |
| 101438000 | 3 | Nut, Packing Adjustment, HCLE, 5.0 Inch | |
| 5.0-inch CDI Packing | |||
| SAP PN | Legacy No. | Qty | Description |
| 101377674 | 3 | Seal, Packing Lube, 5.0, WS-Seal, CDI | |
| 101377672 | 3 | O-Ring, 90 Duro, 6 x 5 3/4 x 1/8, 568-256 | |
| 100002022 | 3 | Carrier, Seal, 5.0, CDI | |
| 101377671 | 3 | Adapter, Female, 5.00, PEEK, CDI | |
| 101377669 | 3 | Packing, 5.0, CDI WSP1, PTFE | |
| 101377668 | 3 | Header Ring, 5.0, HNBR, CDI | |
| 101377667 | 3 | Spacer, 5.0 in., Fluid End, CDI | |
| 5.0-inch Acid Service Packing (8140) | |||
| SAP PN | Legacy No. | Qty | Description |
| 101408161 | 3 | Seal, Packing Lube, Z20, 5 x 5 1/2 x 9/16 Zurcon UCUP, Double Lip FE | |
| 100000980 | 3 | O-Ring, 90 Duro, 6 x 5 3/4 X 1/8 568-256 | |
| 101389216 | 3 | Carrier, Seal, 5.0, HT-400™, 2004 What’s app +8615972752793 | |
| 101389226 | 3 | Ring, Backup, Packing, HT-400™ 5.0 in, 2004 | |
| 100002967 | 3 | Packing Set, 5 x 6 x 0.50 Stock HT, 3 rings, Hard, Acid Service | |
| 100058486 | 3 | Header Ring, 5 x 6 Packing, Polyurethane, HT-400™ FE | |
| 100002966 | 3 | Adapter, Header Ring, 5 x 6, HT-400™, FE | |
| 6.0-inch Packing Nut | |||
| SAP PN | Legacy No. | Qty | Description |
| 100027239 | 3 | Pin, Groove, 3/8-in x 1 ¼-in, Type 5 | |
| 101330379 | 3 | Sleeve, Wiper Gland, HCLE, 6.0 Inch | |
| 101330259 | 3 | Nut, Packing Adjustment, HCLE, 6.0 Inch | |
| 6.0-inch CDI Packing | |||
| SAP PN | Legacy No. | Qty | Description |
| 101377686 | 3 | Seal, Packing Lube, 6.0, WS-Seal, CDI | |
| 100007763 | 3 | O-Ring, 90 Duro, 7 x 6 3/4 x 1/8, 568-261 | |
| 101377685 | 3 | Carrier, Seal, 6.0, CDI Luben@youlongpetro.com | |
| 101377684 | 3 | Adapter, Female, 6.00, PEEK, CDI | |
| 101377683 | 3 | Packing, 6.0, CDI WSP1, PTFE | |
| 101377682 | 3 | Header Ring, 6.0, HNBR, CDI | |
| 101377679 | 3 | Spacer, 6.0 in., Fluid End, CDI | |
| 6.0-inch Acid Service Packing (8140) | |||
| SAP PN | Legacy No. | Qty | Description |
| 101408181 | 3 | Seal, Packing Lube, Z20, 6 x 6 1/2 x 9/16 Zurcon UCUP, Double Lip FE | |
| 100013726 | 3 | O-Ring, 90 Duro, 7 x 6 3/4 X 1/8 568-261 | |
| 101389217 | 3 | Carrier, Seal, 6.0, HT-400™, 2004 | |
| 101389227 | 3 | Ring, Backup, Packing, HT-400™ 6.0 in, 2004 | |
| 100002997 | 3 | Packing Set, 6 x 7 x 0.50 Stock HT, 3 rings, Hard, Acid Service | |
| 100058613 | 3 | Header Ring, 6 x 7 Packing, Polyurethane, HT-400™ FE | |
| 100002996 | 3 | Adapter, Header Ring, 6 x 7, HT-400™, FE | |
| 3 3/8-inch Fluid-End Straight Discharge Flange | |||
| SAP PN | Legacy No. | Qty | Description |
| 100058317 | 316.21013 | 1 | Flange, Discharge, HT-400™ Pump, 3-3/8 Inch, 20,000 PSI, Straight |
| 100002801 | 315.27117 | 1 | Seal, Discharge Passage, 2.5 OD |
| 100002811 | 316.11621 | 2 | Nut, 1-14 NF, Internal Wrenching, 1.03 TL |
| 100002798 | 315.11183 | 2 | Washer, Flat, Worm Housing, Head, 1 In |
| 100002926 | 316.23013 | 2 | Stud, HT-400™, Fluid End To Thick Discharge Flange |
| 4.0-inch Fluid-End Straight Discharge Flange | |||
| SAP PN | Legacy No. | Qty | Description |
| 100002992 | 316.27482 | 1 | Flange, Discharge, HT-400™ Pump, 4.0 – 6.0 Inch, Straight |
| 100002975 | 316.2547 | 1 | Seal, Discharge Passage, HT-400™, 3.375 O.D. |
| 100002811 | 316.11621 | 2 | Nut, 1-14 NF, Internal Wrenching, 1.03 TL |
| 100002798 | 315.11183 | 2 | Washer, Flat, Worm Housing, Head, 1 In |
| 4 1/2-, 5.0-, and 6.0-inch Fluid-End Straight Discharge Flange | |||
| SAP PN | Legacy No. | Qty | Description |
| 100002992 | 316.27482 | 1 | Flange, Discharge, HT-400™ Pump, 4.0 – 6.0 Inch, Straight |
| 100002975 | 316.2547 | 1 | Seal, Discharge Passage, HT-400™, 3.375 O.D. |
| 100002811 | 316.11621 | 2 | Nut, 1-14 NF, Internal Wrenching, 1.03 TL |
| 100002926 | 316.23013 | 2 | Stud, HT-400™, Fluid End To Thick Discharge Flange |
| 3 3/8-inch Fluid-End Curved Discharge Flange | |||
| SAP PN | Legacy No. | Qty | Description |
| 100009881 | 316.21676 | 1 | Flange, Discharge, HT-400™, 3-3/8 Inch, 20,000 PSI, Curved, RH |
| 100009882 | 316.21677 | 1 | Flange, Discharge, HT-400™, 3-3/8 Inch, 20,000 PSI, Curved, LH |
| 100002801 | 315.27117 | 1 | Seal, Discharge Passage, 2.5 OD Luben@youlongpetro.com |
| 100002811 | 316.11621 | 2 | Nut, 1-14 NF, Internal Wrenching, 1.03 TL |
| 100002798 | 315.11183 | 2 | Washer, Flat, Worm Housing, Head, 1 In |
| 100002926 | 316.23013 | 2 | Stud, HT-400™, Fluid End To Thick Discharge Flange |
| 4.0-inch Fluid-End Curved Discharge Flange | |||
| SAP PN | Legacy No. | Qty | Description |
| 100002930 | 316.23019 | 1 | Flange, Discharge, HT-400™, 4.0 – 6.0 Inch, Curved Right-Hand |
| 100002929 | 316.23017 | 1 | Flange, Discharge, HT-400™, 4.0 – 6.0 Inch, Curved Left-Hand |
| 100002975 | 316.2547 | 1 | Seal, Discharge Passage, HT-400™, 3.375 O.D. |
| 100002811 | 316.11621 | 2 | Nut, 1-14 NF, Internal Wrenching, 1.03 TL |
| 100002798 | 315.11183 | 2 | Washer, Flat, Worm Housing, Head, 1 In |
| 4 1/2-, 5.0-, and 6.0-inch Fluid-End Curved Discharge Flange | |||
| SAP PN | Legacy No. | Qty | Description |
| 100002930 | 316.23019 | 1 | Flange, Discharge, HT-400™, 4.0 – 6.0 Inch, Curved Right-Hand |
| 100002929 | 316.23017 | 1 | Flange, Discharge, HT-400™, 4.0 – 6.0 Inch, Curved Left-Hand |
| 100002975 | 316.2547 | 1 | Seal, Discharge Passage, HT-400™, 3.375 O.D. |
| 100002811 | 316.11621 | 2 | Nut, 1-14 NF, Internal Wrenching, 1.03 TL Luben@youlongpetro.com |
| 100002926 | 316.23013 | 2 | Stud, HT-400™, Fluid End To Thick Discharge Flange |
| 3 3/8-inch Fluid-End Blank Discharge Flange (Thin) | |||
| SAP PN | Legacy No. | Qty | Description |
| 100002858 | 316.21673 | 1 | Flange, Discharge, HT-400™, 3.38 In., Blank, Thin |
| 100002801 | 315.27117 | 1 | Seal, Discharge Passage, 2.5 OD |
| 100002811 | 316.11621 | 2 | Nut, 1-14 NF, Internal Wrenching, 1.03 Total Length |
| 100002798 | 315.11183 | 2 | Washer, Flat, Worm Housing, Head, 1 In. |
| 100009362 | 316.23012 | 2 | Stud, HT-400™, Fluid End To Thin Discharge Flange |
| 3 3/8-inch Fluid-End Blank Discharge Flange (Thick) | |||
| SAP PN | Legacy No. | Qty | Description |
| 101325320 | 1 | Flange, Discharge, HT-400™, 3.38 In., Blank, Thick | |
| 100002801 | 315.27117 | 1 | Seal, Discharge Passage, 2.5 OD What’s app +8615972752793 |
| 100002811 | 316.11621 | 2 | Nut, 1-14 NF, Internal Wrenching, 1.03 TL |
| 100002798 | 315.11183 | 2 | Washer, Flat, Worm Housing, Head, 1 In. |
| 100002926 | 316.23013 | 2 | Stud, HT-400™, Fluid End To Thick Discharge Flange |
| 4.0-inch Fluid-End Blank Discharge Flange | |||
| SAP PN | Legacy No. | Qty | Description |
| 100007821 | 316.2298 | 1 | Flange, Discharge, HT-400™, 4.0, 4.5, 5.0, 6.0 Inch , Blank, Thick |
| 100002975 | 316.2547 | 1 | Seal, Discharge Passage, HT-400™, 3.375 O.D. |
| 100002811 | 316.11621 | 2 | Nut, 1-14 NF, Internal Wrenching, 1.03 TL |
| 100002798 | 315.11183 | 2 | Washer, Flat, Worm Housing, Head, 1 In. |
| 4 1/2-, 5.0-, and 6.0-inch Fluid-End Blank Discharge Flange | |||
| SAP PN | Legacy No. | Qty | Description |
| 100007821 | 316.2298 | 1 | Flange, Discharge, HT-400™, 4.0, 4.5, 5.0, 6.0 Inch ,Blank, Thick |
| 100002975 | 316.2547 | 1 | Seal, Discharge Passage, HT-400™, 3.375 O.D. |
| 100002811 | 316.11621 | 2 | Nut, 1-14 NF, Internal Wrenching, 1.03 TL |
| 100002926 | 316.23013 | 2 | Stud, HT-400™, Fluid End To Thick Discharge Flange |
| 3 3/8-inch Fluid End | |||
| SAP PN | Legacy No. | Qty | Description |
| 100002850 | 316.2145 | 2 | Spacer, Inner, Discharge Passage Seal, HT-400™, 3.375 in FE |
| 100002801 | 315.27117 | 6 | Seal, Discharge Passage, HT-400™, 2.5 in. O.D. |
| 100002993 | 316.27488 | 1 | Bolt, Tie, 1.375-12 UNF x 32.4 in., Top, Fluid End, HT-400™, TC |
| 100002976 | 316.25501 | 2 | Nut, Top Tie Bolt, HT-400™, TC |
| 100002894 | 316.22493 | 2 | Washer, Hardened, 2.31 O.D. x 1.43 I.D., For Top Tie Bolt |
| 100002811 | 316.11621 | 4 | Nut, 1-14 NF, Internal Wrenching, 1.03 TL |
| 100002798 | 315.11183 | 4 | Washer, Flat, Worm Housing, Head, 1 In. |
| 100007819 | 316.21981 | 3 | Sleeve, Packing, HT400, 3.38 In. |
| 100007621 | 8.34038 | 3 | O-Ring, 90 Duro, 4 1/8 X 3 7/8 X 1/8, 568-241 |
| 100002866 | 316.21951 | 3 | Fluid End Section, HT-400™ Pump, 3.38 Inch, Not Sleeved |
| 101455172 | 3 | Fluid End Section, HT-400™ Pump, 3.38 Inch, With Packing Sleeve | |
| 100058621 | 316.27927 | 1 | Tag, Part Number, Fluid End, HT-400™ |
| 100001860 | 70.3276 | 2 | Nut, Elastic, Stop, 3/4-in., 16NF |
| 100002925 | 316.23011 | 1 | Bolt, Bottom, Tie, HT400, Type Certified |
| 4.0-inch Fluid End | |||
| SAP PN | Legacy No. | Qty | Description |
| 100002974 | 316.2545 | 2 | Spacer, Inner, Discharge Passage Seal, HT-400™, 5.75 in. |
| 100002975 | 316.2547 | 6 | Seal, Discharge Passage, HT-400™, 3.375 in. O.D. |
| 100002993 | 316.27488 | 1 | Bolt, Tie, 1.375-12 UNF x 32.4 in., Top, Fluid End, HT-400™, TC |
| 100002994 | 316.27489 | 2 | Bolt, Tie, Fluid End, HT-400™, 1 in. Dia, Three Top Tie Bolt FE, TC |
| 100002976 | 316.25501 | 2 | Nut, Top Tie Bolt, HT-400™, TC |
| 100002894 | 316.22493 | 2 | Washer, Hardened, 2.31 O.D. x 1.43 I.D., For Top Tie Bolt |
| 100002811 | 316.11621 | 4 | Nut, 1-14 NF, Internal Wrenching, 1.03 TL |
| 100002798 | 315.11183 | 4 | Washer, Flat, Worm Housing, Head, 1 In. |
| 100002914 | 316.22981 | 3 | Sleeve, Packing, HT400, 4.0 In. What’s app +8615972752793 |
| 100000972 | 8.34043 | 3 | O-Ring, 90 Duro, 4 3/4 X 4 1/2 X 1/8, 568-246 |
| 100002915 | 316.22982 | 3 | Fluid End Section, HT-400™ Pump, 4.00 Inch, Not Sleeved |
| 101455173 | 3 | Fluid End Section, HT-400™ Pump, 4.00 Inch, With Packing Sleeve | |
| 100058621 | 316.27927 | 1 | Tag, Part Number, Fluid End, HT-400™ |
| 4 1/2-inch Fluid End | |||
| SAP PN | Legacy No. | Qty | Description |
| 100002974 | 316.2545 | 2 | Spacer, Inner, Discharge Passage Seal, HT-400™, 5.75 in. |
| 100002975 | 316.2547 | 6 | Seal, Discharge Passage, HT-400™, 3.375 in. O.D. |
| 100002993 | 316.27488 | 1 | Bolt, Tie, 1.375-12 UNF x 32.4 in., Top, Fluid End, HT-400™, TC |
| 100002976 | 316.25501 | 2 | Nut, Top Tie Bolt, HT-400™, TC |
| 100002894 | 316.22493 | 2 | Washer, Hardened, 2.31 O.D. x 1.43 I.D., For Top Tie Bolt |
| 100002811 | 316.11621 | 4 | Nut, 1-14 NF, Internal Wrenching, 1.03 TL |
| 100002956 | 316.23981 | 3 | Sleeve, Packing, HT400, 4.5 In. Luben@youlongpetro.com |
| 100000975 | 8.34047 | 3 | O-Ring, 90 Duro, 5 1/4 X 5 X 1/8, 568-250 |
| 100002954 | 316.23951 | 3 | Fluid End Section, HT-400™ Pump, 4.5 Inch, Not Sleeved |
| 101455174 | 3 | Fluid End Section, HT-400™ Pump, 4.5 Inch, With Packing Sleeve | |
| 100058621 | 316.27927 | 1 | Tag, Part Number, Fluid End, HT-400™ |
| 100001860 | 70.3276 | 2 | Nut, Elastic, Stop, 3/4-in., 16NF |
| 100002925 | 316.23011 | 1 | Bolt, Bottom, Tie, HT400, Type Certified |
| 5.0-inch Fluid End | |||
| SAP PN | Legacy No. | Qty | Description |
| 100002974 | 316.2545 | 2 | Spacer, Inner, Discharge Passage Seal, HT-400™, 5.75 in. |
| 100002975 | 316.2547 | 6 | Seal, Discharge Passage, HT-400™, 3.375 in. O.D. |
| 100002993 | 316.27488 | 1 | Bolt, Tie, 1.375-12 UNF x 32.4 in., Top, Fluid End, HT-400™, TC |
| 100002976 | 316.25501 | 2 | Nut, Top Tie Bolt, HT-400™, TC |
| 100002894 | 316.22493 | 2 | Washer, Hardened, 2.31 O.D. x 1.43 I.D., For Top Tie Bolt |
| 100002811 | 316.11621 | 4 | Nut, 1-14 NF, Internal Wrenching, 1.03 TL |
| 100002969 | 316.24981 | 3 | Sleeve, Packing, HT400, 5.0 In. |
| 100000979 | 8.34051 | 3 | O-Ring, 90 Duro, 5 3/4 X 5 1/2 X 1/8, 568-254 |
| 100058502 | 316.24951 | 3 | Fluid End Section, HT-400™ Pump, 5.0 Inch, Not Sleeved |
| 101455175 | 3 | Fluid End Section, HT-400™ Pump, 5.0 Inch, With Packing Sleeve | |
| 100058621 | 316.27927 | 1 | Tag, Part Number, Fluid End, HT-400™ |
| 100001860 | 70.3276 | 2 | Nut, Elastic, Stop, 3/4-in., 16NF |
| 100002925 | 316.23011 | 1 | Bolt, Bottom, Tie, HT400, Type Certified |
| 6.0-inch Fluid End | |||
| SAP PN | Legacy No. | Qty | Description |
| 100002974 | 316.2545 | 2 | Spacer, Inner, Discharge Passage Seal, HT-400™, 5.75 in. |
| 100002975 | 316.2547 | 6 | Seal, Discharge Passage, HT-400™, 3.375 in. O.D. |
| 100002993 | 316.27488 | 1 | Bolt, Tie, 1.375-12 UNF x 32.4 in., Top, Fluid End, HT-400™, TC |
| 100002976 | 316.25501 | 2 | Nut, Top Tie Bolt, HT-400™, TC Luben@youlongpetro.com |
| 100002894 | 316.22493 | 2 | Washer, Hardened, 2.31 O.D. x 1.43 I.D., For Top Tie Bolt |
| 100002811 | 316.11621 | 4 | Nut, 1-14 NF, Internal Wrenching, 1.03 TL |
| 100002998 | 316.27981 | 3 | Sleeve, Packing, HT400, 6.0 In. |
| 100000983 | 8.34057 | 3 | O-Ring, 90 Duro, 6 3/4 X 6 1/2 X 1/8, 568-260 |
| 100058622 | 316.27951 | 3 | Fluid End Section, HT-400™ Pump, 6.0 Inch, Not Sleeved |
| 101455176 | 3 | Fluid End Section, HT-400™ Pump, 6.0 Inch, With Packing Sleeve | |
| 100058621 | 316.27927 | 1 | Tag, Part Number, Fluid End, HT-400™ |
| 100001860 | 70.3276 | 2 | Nut, Elastic, Stop, 3/4-in., 16NF |
| 100002925 | 316.23011 | 1 | Bolt, Bottom, Tie, HT400, Type Certified |
| Plunger Lube Pump Subassembly | |||
| SAP PN | Legacy No. | Qty | Description |
| 100029874 | 70.58806 | 8 | Washer, Flat, 3/8-in. WI, Pl What’s app +8615972752793 |
| 13431 | 70.43839 | 8 | Screw, Hex Socket, 3/8-in. 16NC x 1 1/4-in., Unbrako/Loc-Wel |
| 100003003 | 317.5401 | 1 | Pump, Gear, Recirculating Plunger Lubrication, HT-400™ Pump |
| 100058711 | 317.5102 | 1 | Adapter, Pump To Thrust Plate, Plunger Lube, HQ |
| 100011749 | 317.51065 | 1 | Adapter, HQ, Lube Pump, Plunger Lube |
| 100028805 | 70.44781 | 1 | 1/4-in. x 1/4-in. 20NC Set Screw Luben@youlongpetro.com |
| 100011751 | 317.51067 | 1 | Seal, Lip, 1.000 Id X 2.000 Od X 0.250 Width |
| 100011750 | 317.51066 | 1 | Bearing, Ball, Radial, 1.0 Id X 2.0 Od X 0.375 Thick, Open |
| 100011748 | 317.51064 | 1 | Adapter, HQ, Worm Shaft, Plunger Lube |
| Recirculating Plunger Lube Pump Plumbing | |||
| SAP PN | Legacy No. | Qty | Description |
| 100025600 | 1 | Adapter, Hose, Straight, 1 1/16-12 JIC Male x 1/2-14 MPT, Stl | |
| 100035164 | 1 | Adapter, Hose, Cross, 1/2-14 MPT x 1/2 -14 FPT x 12 -14 FPT, Aeroquip | |
| 100016860 | 2 | Nipple, Standard, 1/2 X AT, Blackwall, A120 | |
| 101139835 | 1 | Pipe Plug – 1/2 NPT, Sq Head, Steel | |
| 100033152 | 1 | Adapter, Hose, Cross, Tee, 1/2-14 FPT | |
| 100001210 | 1 | Bushing, Hexagon, 1/2 x 1/4, Steel | |
| 100025044 | 1 | Gauge, Pressure, 0-60 psi, 2 1/2 in., 1/4 NPT | |
| 100025646 | 1 | Adapter, Hose, Elbow, 9/16-18 JIC Male x 1/2-14 MPT, Steel | |
| 100033606 | 2 | Fitting, Hose, Straight, 3/8 NOM Hose x 9/16 JIC Swivel Female, Brass | |
| 100016518 | 1 | Bushing, Hexagon, 3/4 x 1/2, Steel Luben@youlongpetro.com | |
| 100015300 | 1 | Valve, Relief, Brown and Sharp, 3/4, Preset at 45# | |
| 100031214 | 1 | Adapter, Hose, Straight, 1 1/16-12 JIC Female x 9/16-18 JIC Male | |
| 100031598 | 1 | Adptr, Hose, Tee, 1 1/16-12 JIC M x 3/4-14 MPT x 1 1/16-12 JIC M, Stl | |
| 100035892 | 2 | Fitting, Hose, Straight, 1 1/16-12 JIC Swivel Female x 3/4 NOM Hose, Brs | |
| Recirculating Plunger Lube Fluid-End Manifold Plumbing | |||
| SAP PN | Legacy No. | Qty | Description |
| 100025596 | 1 | Adapter, Hose, Straight, 9/16-18 JIC Male x 1/4-18 NPT Male, Steel | |
| 100000596 | 1 | Valve, Ball, 1/4, 600 PSI, FPT, Bronze Body, 316 Ball & Stem, Tefl Seats & Seals | |
| 100033761 | 1 | Adapter, Hose, 90 Degree 1/4-18 MPT x 1/4-18 MPT, Aero | |
| 101376366 | 2 | Assembly, Manifold, Plunger, Lubrication, FE, Triplex, WSP | |
| 100032911 | 2 | Tag, Identification, Hydraulic Tubing, Stnls Stl, 0.31 Wide x 14.3 | |
| 100025591 | 6 | Adapter, Hose, Straight, 7/16-20 JIC Male x 1/8-27 MPT, Steel | |
| 101374860 | 3 | Line, Upper, Oil, Plunger Lubricator, WSP Luben@youlongpetro.com | |
| 100002681 | 1 | Valve, Safety, 1/4, Brass, 150 psi Pressure Relief Setting | |
| 100027497 | 1 | Plug, Pipe, 1/4 18 NPTF, Steel Countersunk Hex, Headless | |
| 101374914 | 3 | Line, Lower, Oil, Plunger Lubricator, WSP | |
| 100000592 | 3 | Valve, Check, 1/8, Female Inlet, Male Outlet, With 70 Duro O-Ring | |
| 100025604 | 6 | Adapter, Hose, Elbow, 7/16-20 JIC Male x 1/8-27 MPT, Steel | |
| 100028293 | 2 | Screw, Hex Socket, 3/4-10 NC x 1 1/4 | |
| 100029925 | 2 | Washer, Lock, 3/4, Steel, PL | |
| 101391751 | 2 | Bracket, Plunger Lubrication Manifold, WSP | |
| 100015025 | 1 | Adapter, Hose, Elbow, 9/16-18 JIC Male x 1/4-18 MPT, Steel | |
