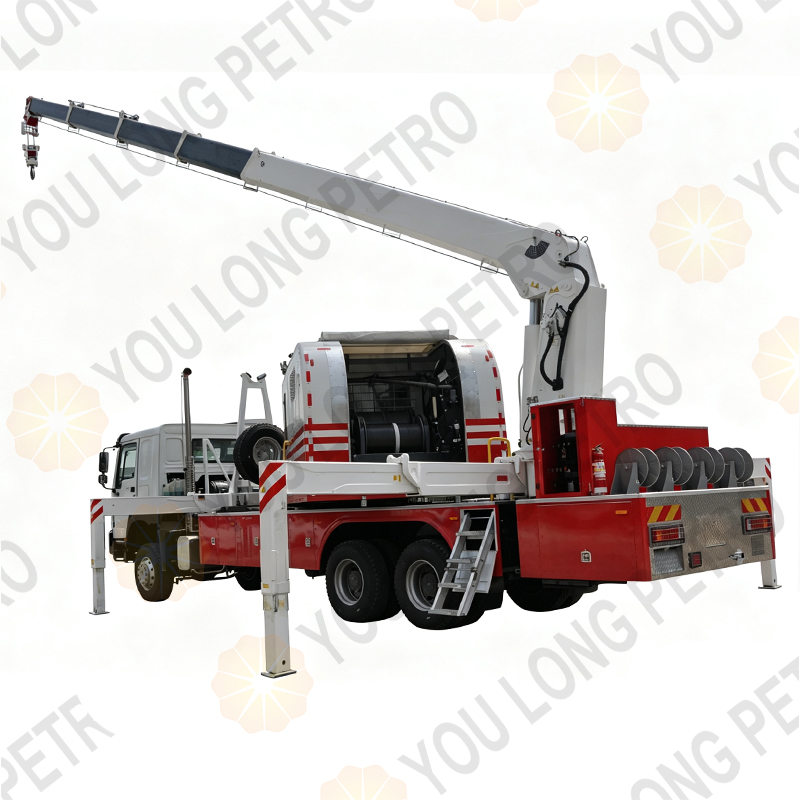

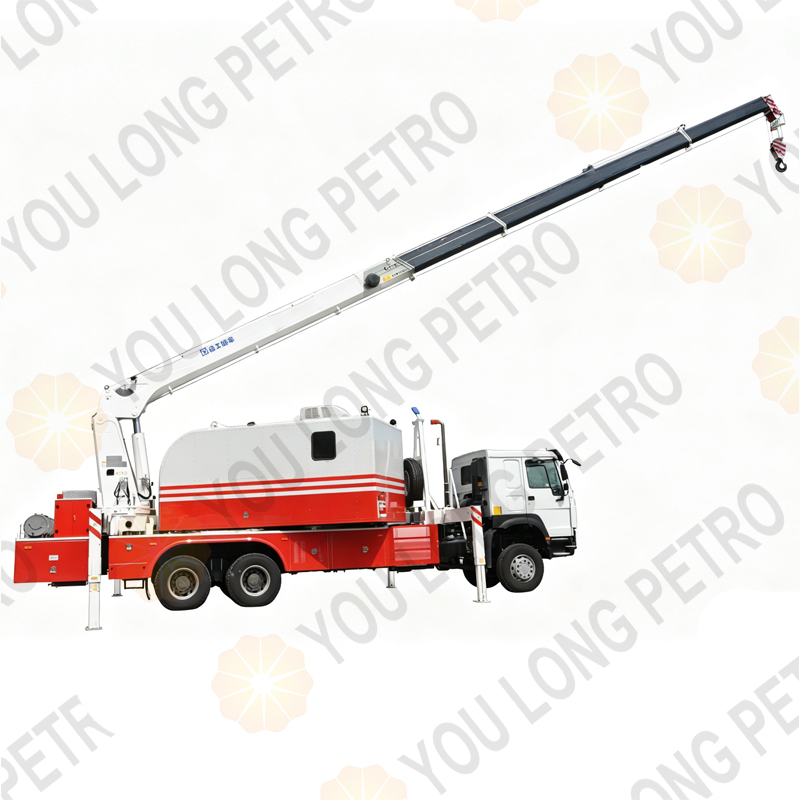

Double Drum Wireline Unit HOWO Diesel Engine Truck
描述
1.Overview
This specification covers a Double Drum, Wireline Crane Unit that is mounted on a Truck Chassis.
The Wireline Unit is complete with PTO for winch and crane hydraulic system powered by the Truck Chassis Engine. This Unit will have a Two (2) Compartment Cabin layout (separate Operator and Winch Compartments) and a Double Drum Setup that will be able to run up to 0.125″ slickline on one drums and 1/4″braided line on the other drum. luben@youlongpetro.com The cabin is mounted on a swivel and can be rotated 30 degrees to one side.
2. Truck Chassis
| Chassis Details | |
| Model | HOWO Diesel Engine Truck |
| Drive Configuration | 6×6 |
| Engine | Diesel Engine,273kW/366 HP Exhaust directive compliance China National |
| Tanks and fuel system | fuel tanks,600 liters Water separator |
| PTO | PTO Engine Driven |
| Wheelbase | 5800mm+1400mm |
| Alternator | 28V 80A 2000W |
| Batteries | 180 Ah |
| Air Compressor | Integrated diesel engine powered air compressor |
| Exhaust | Vertical muffler with spark arrestor |
| Braking System | Anti-lock brake system (ABS) |
| Steering system | Left side steering wheel (for right side traffic) |
| Fronttires | 315 / 80R22.5 Tubeless tires, single (2 pcs in total) |
| Reartires | 315 / 80R22.5 Tubeless tires tires, double(8 pcs in total,4 per axle) |
| Sparetire | 315 / 80R22.5 TL offroad tires (1pcs in total) |
| Air conditioner | Cab air conditioner |
| Towhooks | Front and Rear towing hook |
| Lights | Protection guards for lights External,internal lighting around truck |
| Vice | High quality vice |
3. Telescope Crane(non-explosion proof)
The Unit will be equipped with a strong hydraulic telescope crane. Crane is integral to Slickline Unit-rear mounted. luben@youlongpetro.com
The crane consist of the following main elements:
| Brand | XCMG |
| Boom length | 8.38m-23.68m |
| Max.rated lifting capacity | 20000Kg |
| Outrigger system | Front and rear hydraulic out and down outrigger system |
| Max. lifting height | 25m |
| Derricking range | 0～75° |
| Rotation range | 360° |
| Indicator | Boom Length and Angle Indicators Bubble level indicator |
| Safety System | Load Moment Indicator-Audio/Visual w/Shutoff fail safe anti block system: Anti-Two Block alarm/cut-out System |
This range indicator shows the maximum lifting capacity with boom in various telescoping state and
elevation angle, it is not allowed to lift the load beyond the value specified by the range indicator.

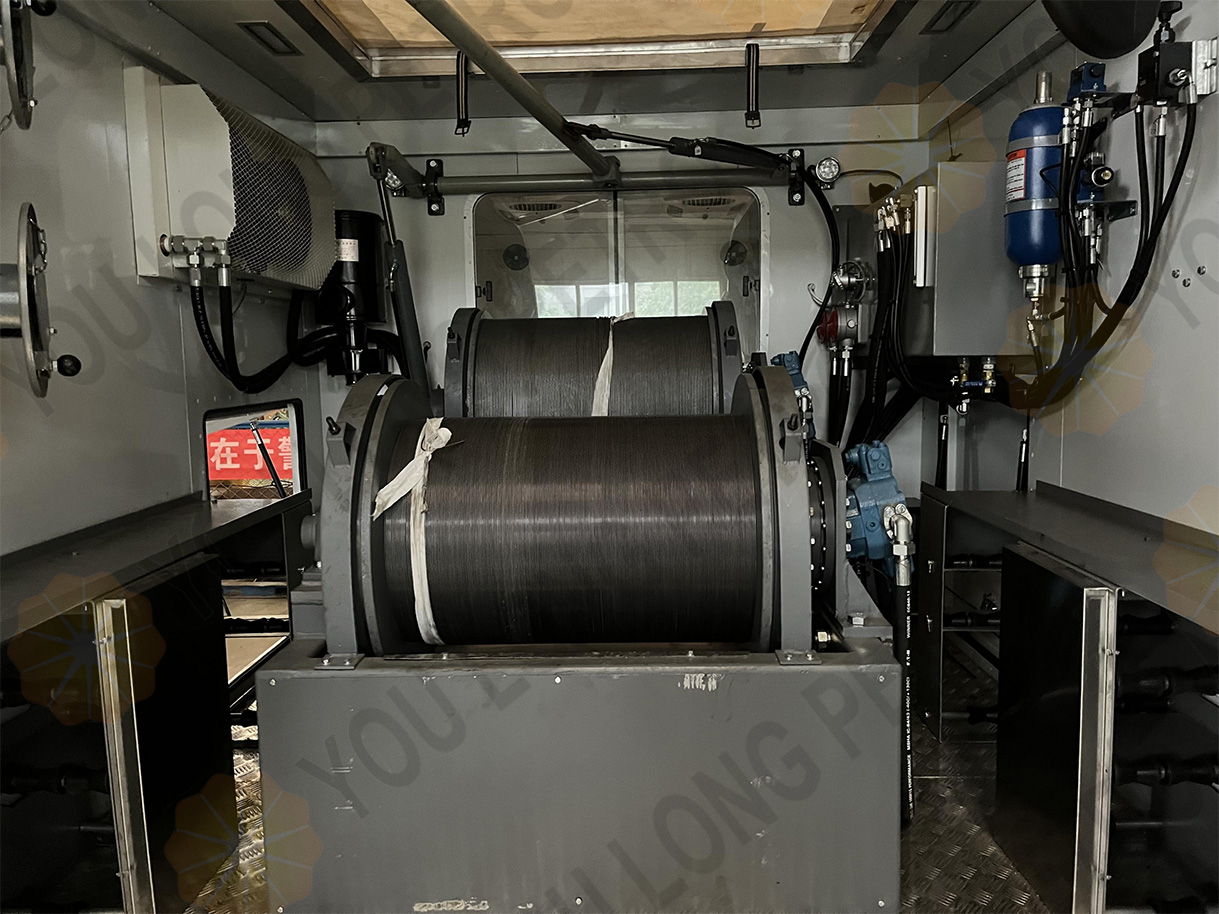

4. Winch cabin
Double drum frame. Front wounded with 8000 meters long,0.125″ slickline size, the rear one wounded
with 8000 long, 1/4″ braided line size.
Pollution drips pans under the drum and frame.
Closed loop hydraulic system
Slickline drum 1
o Casting steel
o Drum capacity : 0.125″, 8000 meters
o Line speed
Max line speed at OD(at surface): 400m/min
o Line Pull
Max line pull At core: 2100kg
o Direct Drive
o Rexroth Variable Displacement Hydraulic motor and Gearbox
o Pneumatic band Brake system
Braided line drum
o Casting steel
o Drum capacity : 1/4″, 8000 metres
o Line speed
Max line speed at OD(at surface): 400m/min
o Line Pull
Max line pull At core: 2100kg
o Direct Drive
o Rexroth Variable Displacement Hydraulic motor and Gearbox
Measuring head from Benchmark-Zone 2 whatsapp+8615972752793
o Cable sizes .092 to .125 slickline & 3/16″ to 1/4 e-line/braided line
o Tension load axle & amplifier can be configured to different outputs
o Can measure wireline tensions up to 9,000 pounds – 4,082 kg)
o Includes both hydraulic load cell and electronic tension load pins.
o Backup depth system – reduces drag on measuring wheel by illuminating mechanical drive cable
o Encoder & tension amplifier certified for Zone II area use available
o Measuring device spooler
Explosion proof Spot lights on the wire drum outside the cabin

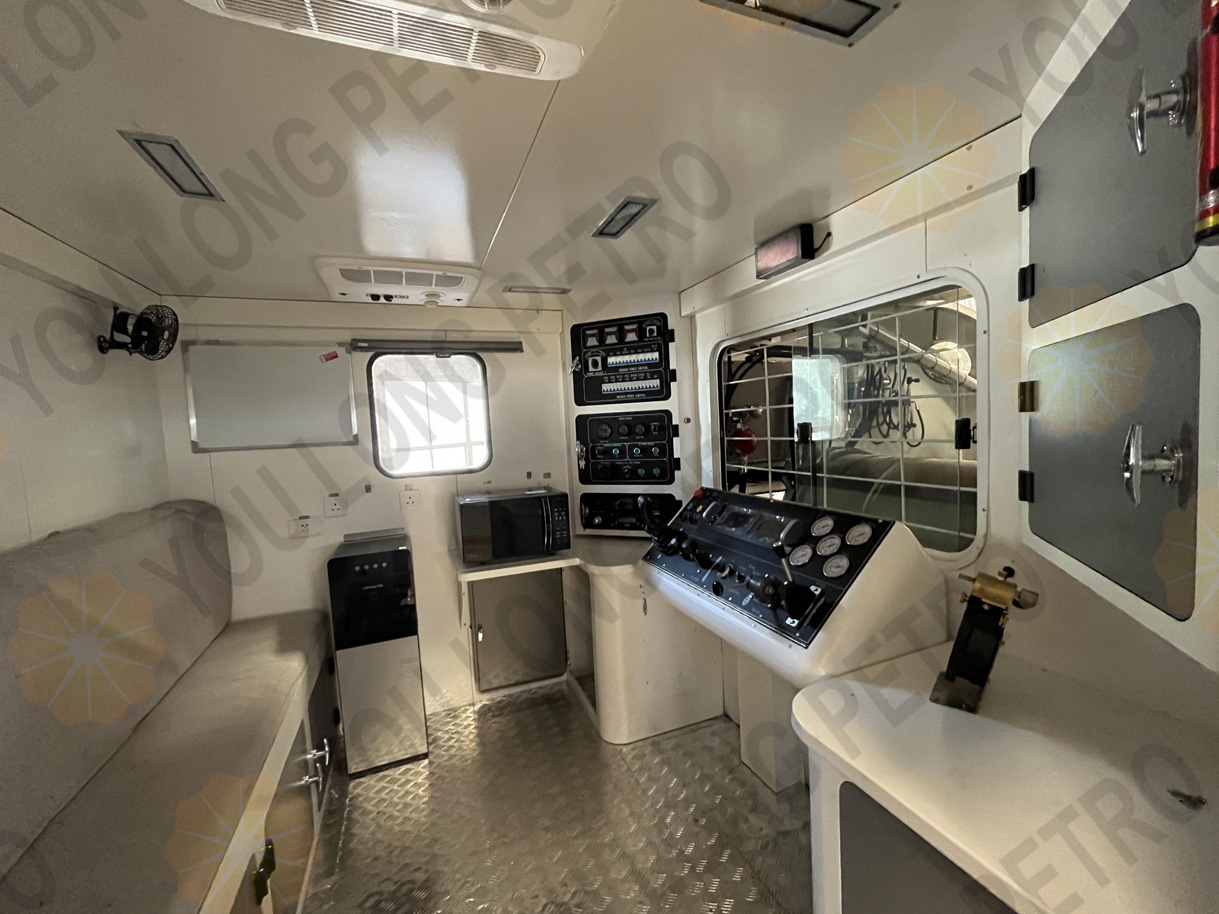

5. Operator cabin
Fabricated with square section steel as frame. Flooring anit slip aluminum checker plate through the
operator cabin.
Walls made of sandwich panel for weight optimization and efficient noise and heat insulation.
Door: Reinforced hinges, handles and locks -. Equipped with safety glass windows.

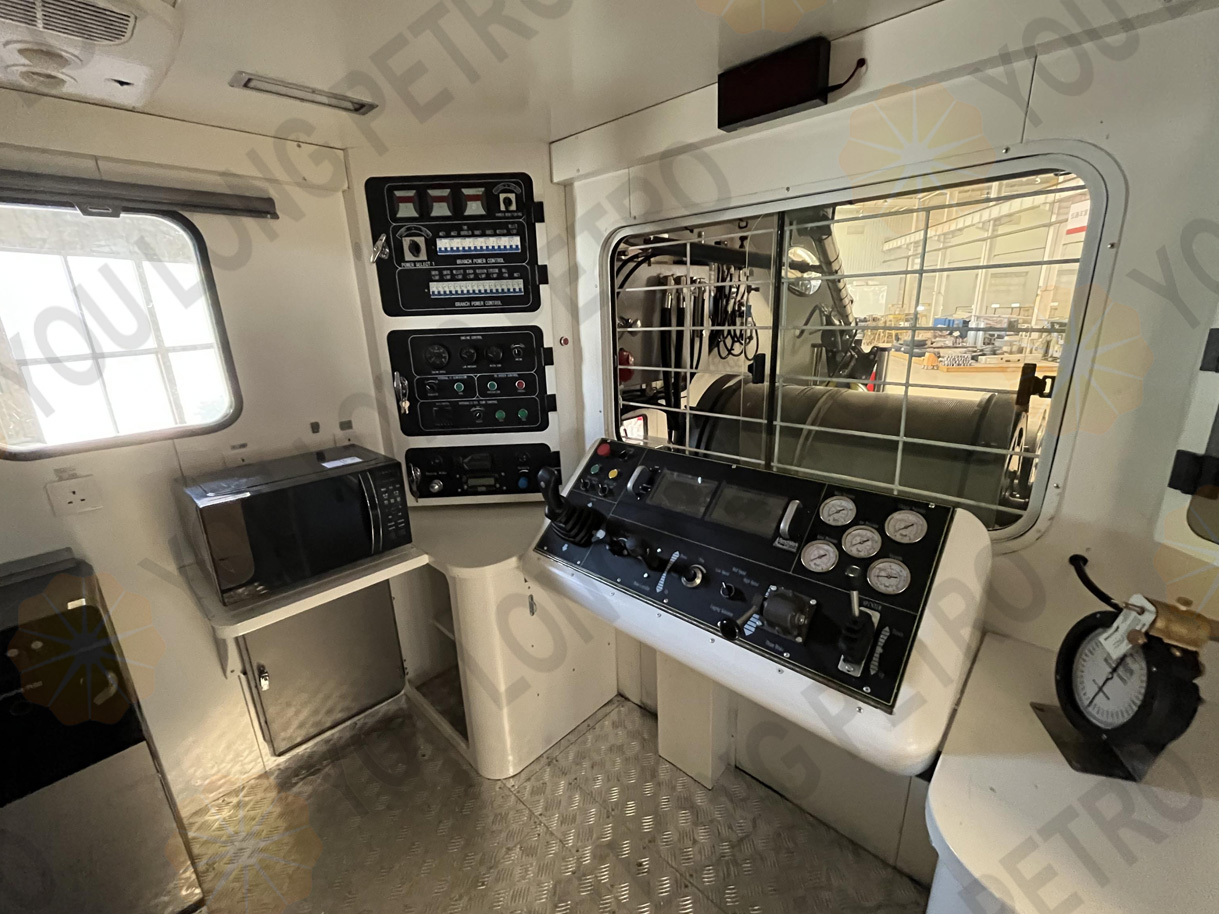

Operator console with operator panel Equipped with:
o Drum directional and speed control
o Line tension valve
o Drum selection
o Throttle control
o Hydraulic main pressure gauge
o Air pressure gauge
o Charge pressure gauge
o Brake control
o Emergency stop button
o Vacuum gauge
o Hydraulic spooler control
o Benchmark operator panel-Zone 2
-Integral tension/weight indicator and Hydraulic back-up tension/ weight indicator.
– Two fully independent depth measurements. whatsapp+8615972752793 Digital depth indicator and back up depth panel
– Alarm: Max depth alarm, surface alarm,tension alarm
-Safety guard: Max depth shutdown, tension shutdown
Engine
o Engine controls: start and stop
o Engine speed
Air-conditioned cabin: 2 x air condition units, roof mounted with protection-Explosion proof
Electrical control panel
Lights inside cabin- Explosion proof
Big window with safety glass between operator compartment and winch compartment
Side windows to be fabricated from safety galss for Suitable lighting.
The operator chair is adjustable in height. has an ergonomic design with backrest.
Cabin is to be equipped with safety pack containing. Fire extinguishers, first aid kit (fixed and equipped)
Horn whatsapp+8615972752793
6. Power Supply System
Power Management Panel
External Power Supply Connection for “Rig supply”.
30m of grounding cable on reel
Hydraulic generator 24 KVA, 220V/50HZ(explosion proof)
7. BOP and Stuffing box pressure control equipment control panel
It consists of following main components
-Pump: Air driven pump, backup hand pump, stuffing box hand pump
-Accumulator
-Control and gauges
– Hose reel.
8. PCE test unit with chart recorder
It consists of following main components
-Pre-fill pump(high volume/low pressure)
-High pressure pump(high pressure/low volume)
-250l stainless steel
– Chart recorder(non explosion proof)
