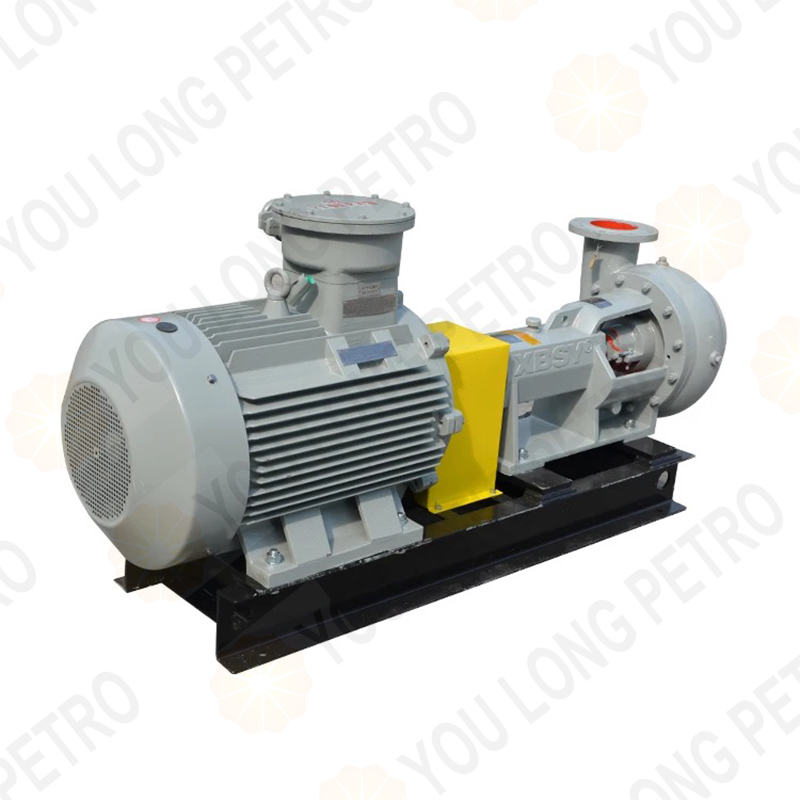

XBSY SB4×5ZJ Forward Coupling-driven Sand Centrifugal Pump



SB4×5-10 Sand Pump Performance Curve



1．Overview

SB series sand pumps are supplementary pumps, newly designed and manufactured according to features of petroleum and natural gas drilling equipment. Such pumps, adopting axial suction structures and using wear-resistant cast iron for flow-passing parts, applicable to deliver corrosive drilling fluid (with suspended particulates) or other liquid media under similar work condition, are the best optional pumps of desander, desilter and mixing hoppers as well as perfect perfusion pumps of mud pumps. What’s app +8615972752793 For design of their parameters, that equipment with which such pumps are used together can operate under the best work condition has been fully considered. These pumps are mainly characterized by good versatility and exchangeability of parts, less leakage of shaft seal, reliable operation, long service life and convenient maintenance.

SB series pumps are of five types, namely, SB6×8, SB5×6, SB4×5, SB3×4 and SB2´3, of which, SB6×8 matches motors (45kW, 55kW & 75kW) (forward pumps and reverse pumps of 6 specifications can be provided according to customers’ demands), Luben@youlongpetro.com design patent for this model has been applied with Patent Number of ZL 2007 3 0094452.1; SB5×6 is for motors (22kW, 30kW, 37kW and 45kW) (reverse pumps of 4 specifications); SB4×5 can be used with motors (15kW and 22kW) (reverse pumps of 2 specifications); SB3×4 is applicable for motors (15kW, 11kW and 7.5kW) (reverse pumps of 3 specifications); Luben@youlongpetro.com SB2´3 matches motors (11kW, 7.5kW & 5.5kW) (reverse pumps of three specifications). Sealing components of the former two types pumps are universal. Outline and installation dimensions of reverse pumps are the same as those of forward pumps on the whole, except that volute discharge tube is at left side of forward pump but at right side of reverse pump (seeing from the suction end).Mission Centrifugal Pump and XBSY Centrifugal Pump.





Index J SB4×5ZJ Forward Coupling-driven Sand Pump Assembly Exploded View and Part List



Item	Part Name＆Specification	Part No.						Drawing No.	Qty.
1	Pump Head	50Hz	Chinese Flange		15kW		X01145001	SB45ZJ-33.1.0	1
					22kW		X01146001	SB45ZJ-34.1.0
					30kW		X01147001	SB45ZJ-35.1.0
			American Flange		15kW		X01245001	SB45ZJC-33.1.0
					22kW		X01246001	SB45ZJC-34.1.0
					30kW		X01247001	SB45ZJC-35.1.0
		60Hz	Chinese Flange		15kW		X11145001	SB45ZJ-33.1.0A
					22kW		X11146001	SB45ZJ-34.1.0A
					30kW		X11147001	SB45ZJ-35.1.0A
			American Flange		15kW		X11245001	SB45ZJC-33.1.0A
					22kW		X11246001	SB45ZJC-34.1.0A
					30kW		X11247001	SB45ZJC-35.1.0A
2	Coupling Guard	X01154030						SB56-18.2	1
3	Pump Coupling	15kW				X01141003		SB45-31.2	1
		22kW				X01143016		SB45-32.2
		30kW				X01143016		SB45-32.2
4	Motor Coupling	15kW				X01141004		SB45-31.3	1
		22kW				X01151003		SB56JC-29.2
		30kW				X01152003		SB56-20.2
5	Motor	50Hz		15kW		W31710017		YB2-160L-4	1
				22kW		W31710019		YB2-180L-4
				30kW		W31710020		YB2-200L-4
		60Hz		15kW		W31710117		YB2-160L-4
				22kW		W31710119		YB2-180L-4
				30kW		W31710120		YB2-200L-4
5A	Motor Key,B12×80	15kW				W08011280		GB/T1096-2003	1
	Motor Key,B14×80	22kW				W08011480		GB/T1096-2003
	Motor Key,B16×80	30kW				W08011680		GB/T1096-2003
6	Skid	15kW				X01141005		SB45-31.4.0	1
		22kW				X01142003		SB45-32.3.0
		30kW				X01143025		SB45J-35.3.0
7	Pump Head Bolt,M16×70	W01002170  Luben@youlongpetro.com						GB/T5780-2000	4
8	Nut,M16	W03012016						GB/T41-2000	4
9	Springwasher,16	W05102016						GB/T93-1987	4
10	Flatwasher,16	W05031016						GB/T95-2002	4
11	Guard Bolt,M10×25	W01042091  What’s app +8615972752793						GB/T5783-2000	4
12	Flatwasher,10	W05031010						GB/T95-2002	4
13	Pump Head Key,C10×105	W08021121						GB/T1096-2003	1
14	Motor Stud,M12×80	15kW				W01421131		GB/T901-1988	8
	Motor Bolt,M12×90	22kW				W01022132		GB/T5782-2000	4
	Motor Bolt,M16×80	30kW				W01002171		GB/T5780-2000	4
15	Nut,M12	15kW				W03012012		GB/T41-2000	8
	Nut,M12	22kW				W03012012		GB/T41-2000	4
	Nut,M16	30kW				W03012016		GB/T41-2000	4
16	Springwasher,12	15kW				W05102012		GB/T93-1987	8
	Springwasher,12	22kW				W05102012		GB/T93-1987	4
	Springwasher,16	30kW				W05102016		GB/T93-1987	4
17	Flatwasher,12	15kW				W05031012		GB/T95-2002	8
	Flatwasher,12	22kW				W05031012		GB/T95-2002	4
	Flatwasher,16	30kW				W05031016		GB/T95-2002	4
18	Flexible Block,KL16	15kW				W99111003			1
	Coupling Pin Set	22kW				X01173033		GB5014-85	10
	Coupling Pin Set	30kW				X01173033		GB5014-85	10
19
20		What’s app +8615972752793
21		Luben@youlongpetro.com
22	Suction Gasket,5″	W42711525							1
23	Discharge Gasket,4″	W42711520							1
