8N02 Rotary Torque Sensor System

描述

Designed for chain-driven rotary table drilling rigs, our Hydraulic Rotary Torque System comes with two installation options: box-mount and panel-mount. It delivers precise real-time feedback on torque fluctuation values during rig operation.

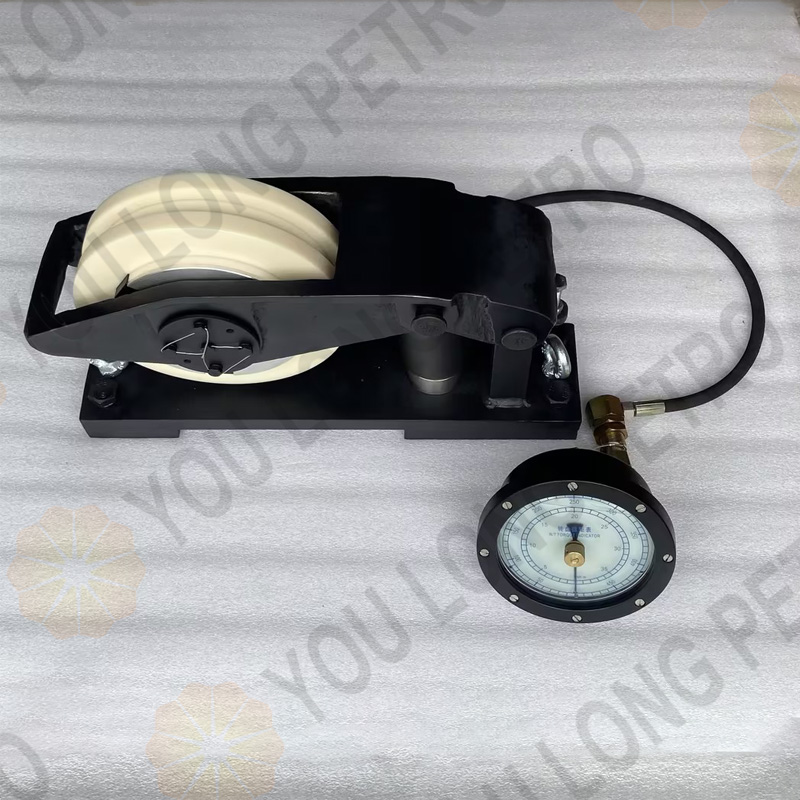

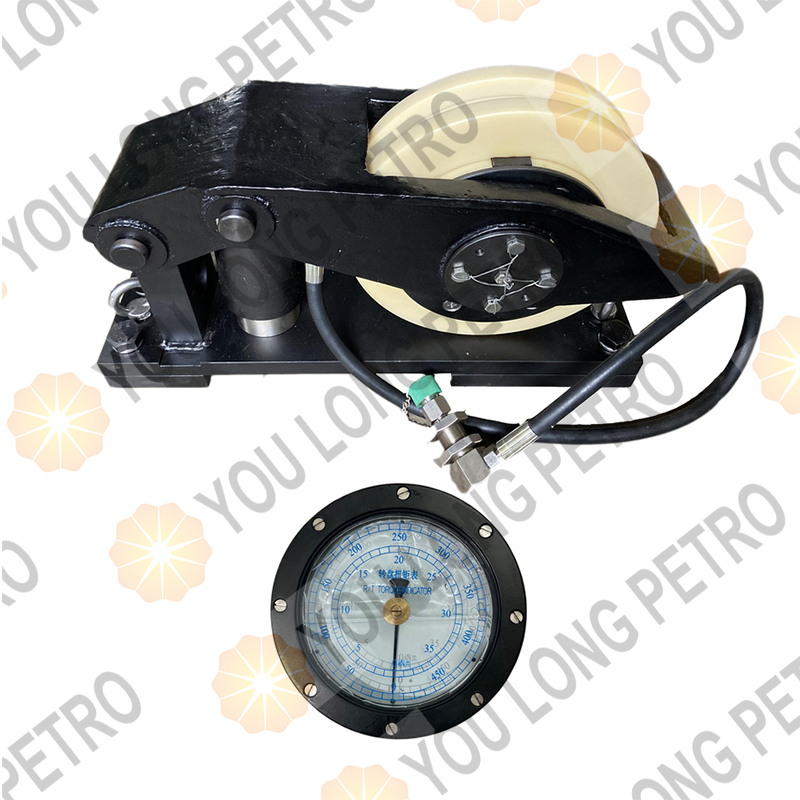

The complete system package consists of one Idler assembly and one matching Gauge.

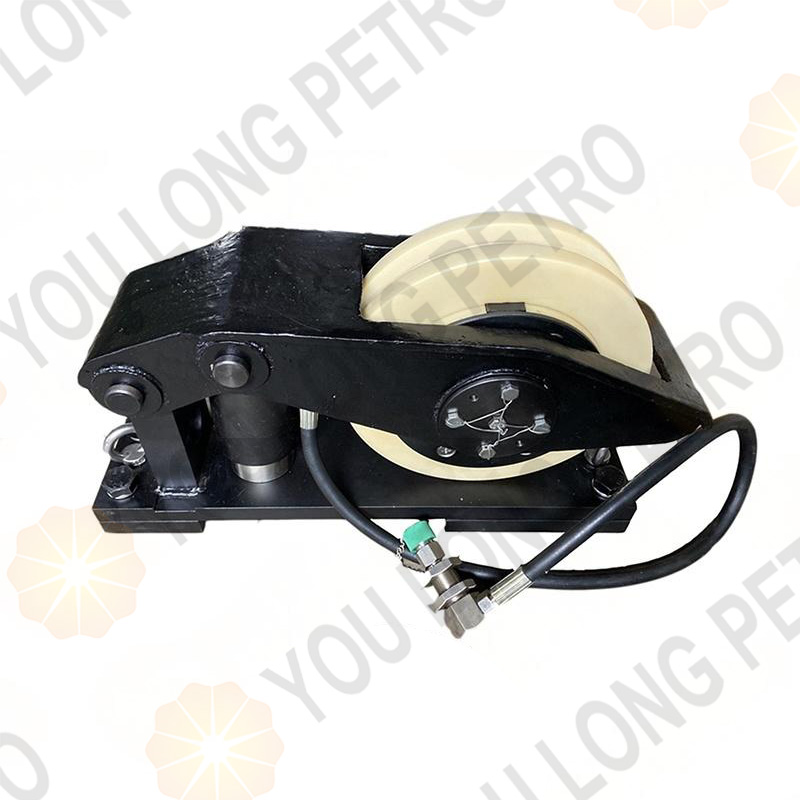

Adopting a tension pulley type structural design for the rotary table torque sensor, this device captures real-time torque variations of drilling tools powered by the rotary table. It visually reflects the operational status of downhole drilling assemblies and subtle changes in bottom hole stratum conditions, enabling field personnel to accurately grasp downhole situations and prevent potential operational accidents.

Technical Specification

Output hydraulic pressure signal range: 0~6MPa

Tension pulley external diameter: Φ305mm

High-pressure cylinder diameter: Φ65mm

Minimum height of sensor: 355.5mm

Operating temperature: -40℃ ~ +85℃

Non-linear error: 0.5%

Features

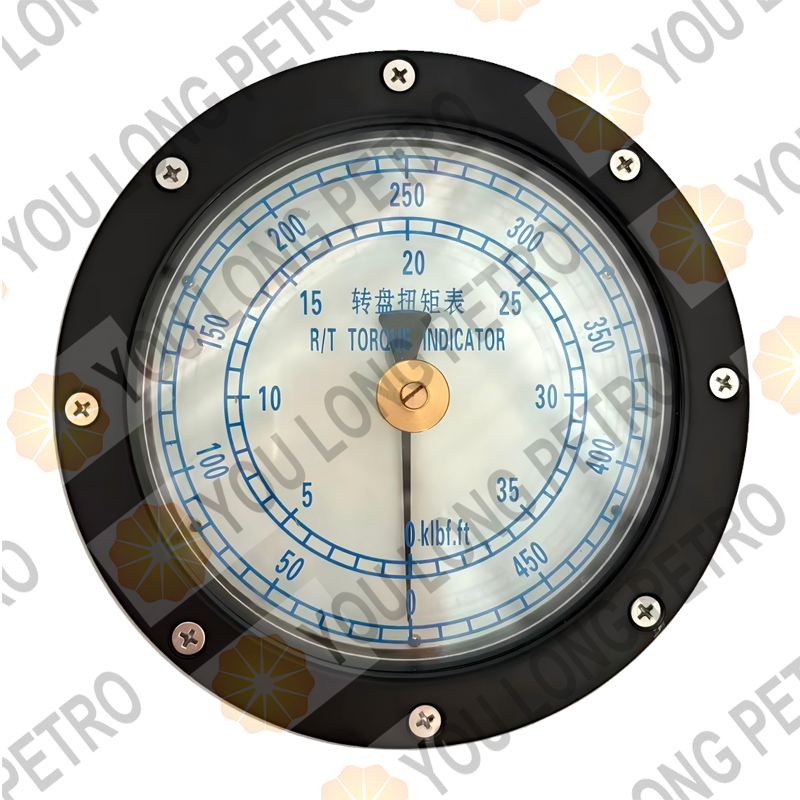

Equipped with a 6-inch fluid-filled Gauge to adapt to harsh drilling environments

Two gauge measurement ranges are optional: 500 points and 1,000 points

The gauge dial supports manual zero calibration by on-site operators to eliminate the torque interference caused by drill string weight, Luben@youlongpetro.com What’s app +8615972752793 realizing accurate monitoring of torque data at the bit

A 25-foot hose is equipped as standard, and customized hose lengths can be provided according to actual site demands

Heavy-duty steel sprockets are available as an optional upgrade, which can replace the original rubber wheel fitted on the Idler assembly for enhanced durability

Benefits

Built-in gauge damper effectively suppresses pointer jitter and oscillation induced by drilling operation and drill string vibration. This design guarantees stable and accurate measurement readings while extending the overall service life of the gauge.

By presenting real-time hole condition data and torque variation trends, the system assists drillers in judging the optimal timing for drill bit replacement, improving targeted operation efficiency.

It provides early warning for common drilling anomalies including drill string twist-offs, bit locked cones, out-of-gauge holes and formation mutations. Luben@youlongpetro.com What’s app +8615972752793 This proactive warning mechanism improves overall operational safety and optimizes comprehensive drilling efficiency.

The system features simple and fast connection with drilling recorders, supporting real-time tracking and permanent recording of operating torque trend data.

To Order (Specification Requirements)

Customers need to confirm the following parameters when placing orders:

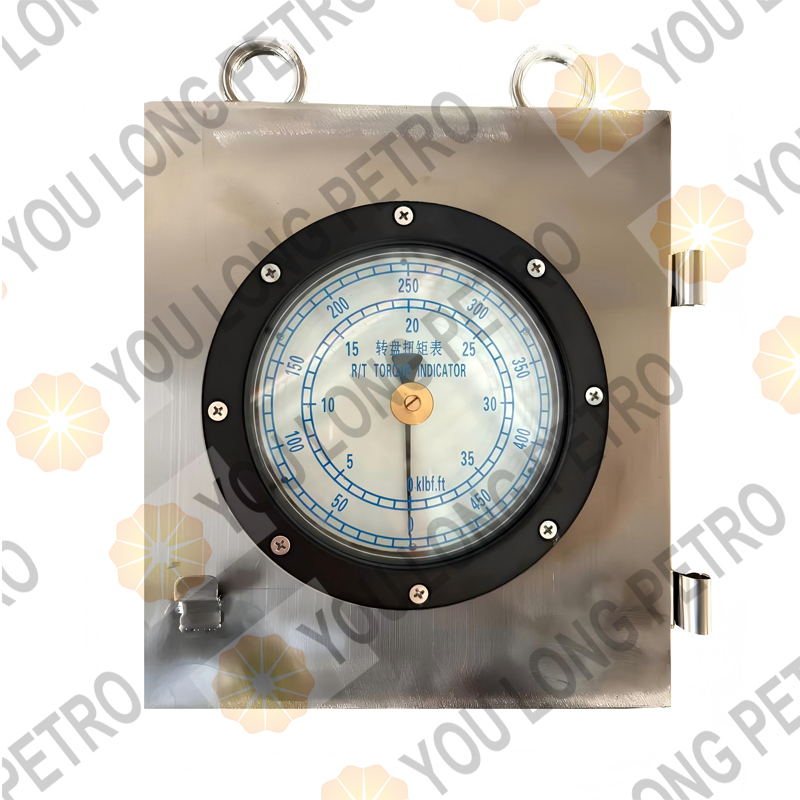

1. Gauge installation type: Bracket-mount or panel-mount
2. Required gauge capacity
3. Hose length (25-foot serves as the standard configuration)
